Bridge Cranes & I Beams

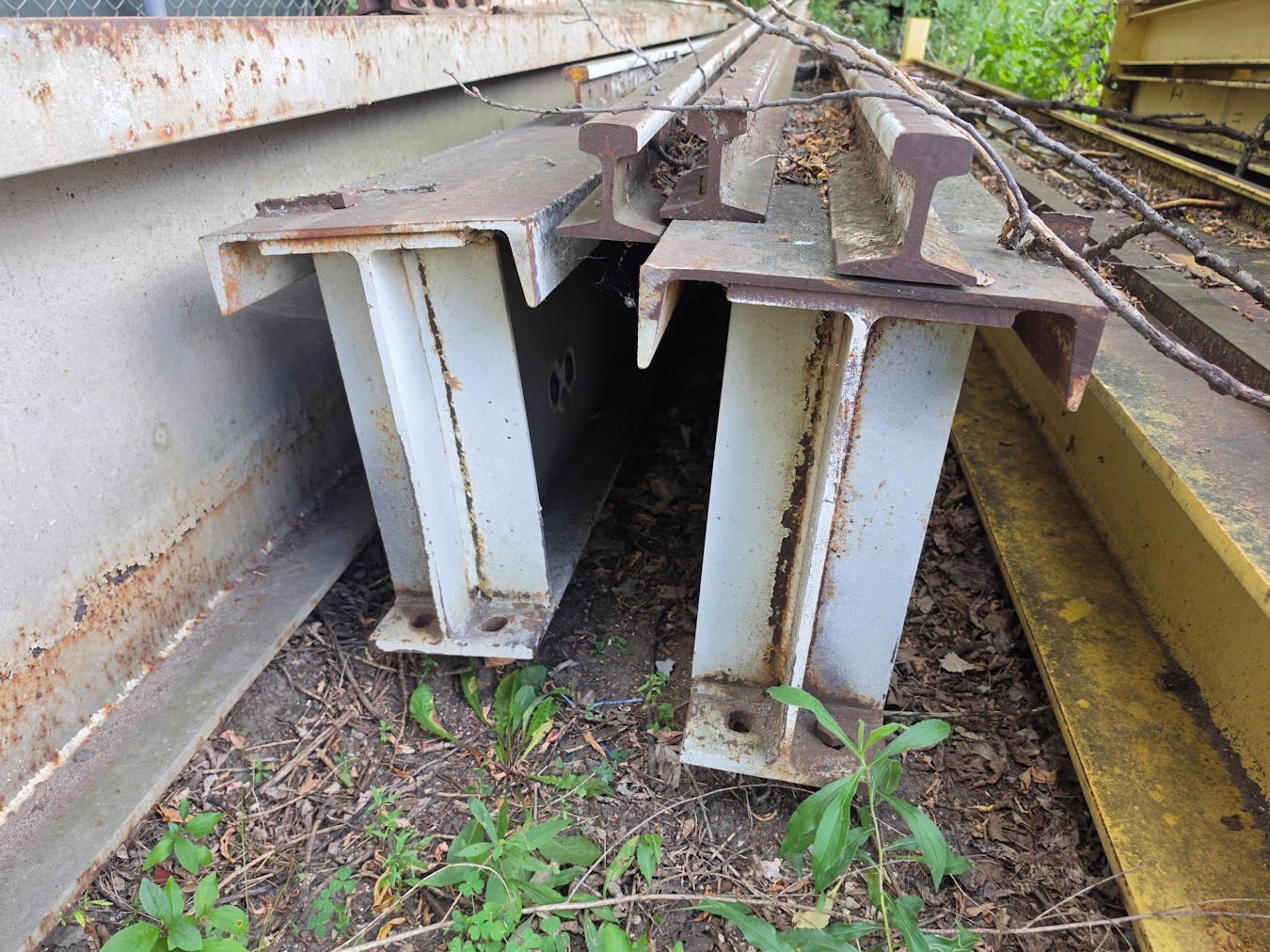

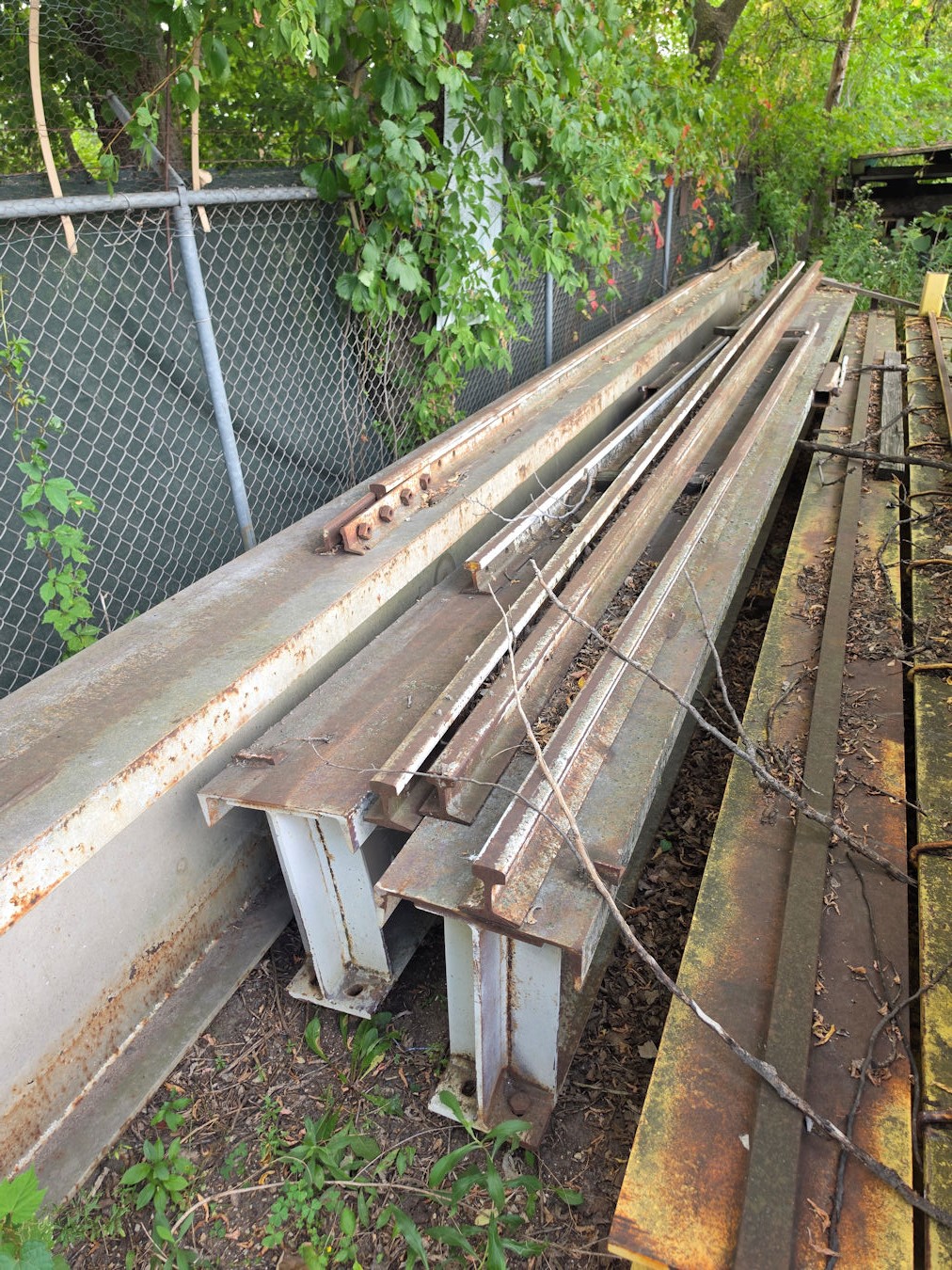

(18) I Beams 32'L x 6.25"W x 20"H w/12" Channel Aprox 30' on each beam, Spec's S-20x66, Beams weight aprox 2,740 lbs each (PHOTO1) (PHOTO2) (PHOTO3) $1,400 each	1 Ton C&M Chain Hoist 16' Bridge Crane Powered trolley, Powered bridge, With pendant control, Top running, Runs on 2" wide beam or track, Hoist Model L-2, S# L431DU, 2 Speed 16/5 fpm, Max lift height 10.5' with chain on hoist, Wired 460v 3ph (PHOTO1) (PHOTO2) (PHOTO3) $3,950 for all
Abus Top Running 3 Ton Bridge Crane 6,000 lb. Capacity, S# 65270, Independent track line to run, Pendant control, Power electronics, Inverter drive crane control, 2-Lift tech. 3/4hp crane drives with brakes, Overall length 46' x 11.5", Wheel centers 46' x 6", Date manufactured 07/1998, 440-480v 3ph. Last inspected by Midwest Crane Service in 2007 (Phn: 763-566-8555) (PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (VIDEO) $8,500
(4) Bridge Cranes 3 Ton 4 cranes 3 tons each, The rails are in 30' lengths, 610' in total. ($65 per ft.), Support system for 22' ceiling, Setup for 30' span (PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) P.O.R.
Bridge Cranes 3 Ton Hoist Equipment Under slung type, 19' 4" Span, Double girder, Under hung, AC Smooth move variable speed, Low head room, Overall width is 9' 6", 20' Lift, Detroit Hoist, Model M6LL, S# 3684J & S$ 3685J, 3hp 208/220/440v 3ph, Pendant control, Dissembled for shipment, Powered all directions (2 available) (PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) $5,950 each
Bridge Cranes 5 Ton Under hung type, Span 26' 9 1/2", 5' 4"W, Made with 16" I beam, Overall height 24", Chain pull powered (PHOTO1) (PHOTO2) $3,000 Each (4 in Stock)	Bridge Crane 5 Ton 30' P.O.R.
Bridge Crane 5 Ton Hoist Equipment Under slung type, 30' Span wheel to wheel, Double girder, Under hung, AC Smooth move variable speed, Low head room, Overall width is 9' 6", 20' Lift, Detroit Hoist, Model M10XL, Pendant* (PHOTO1) (PHOTO2) $7,950	Bridge Crane 5 Ton 20' 6"Single beam type, Under slung type, 5 Ton Detroit Hoist, Model N10XL, S# 34223, 5hp 230/460v 3ph, 10' 8" Wide end trucks, Powered bridge, 2.75hp Traction wheel drive system (PHOTO1) (PHOTO2) $6,000

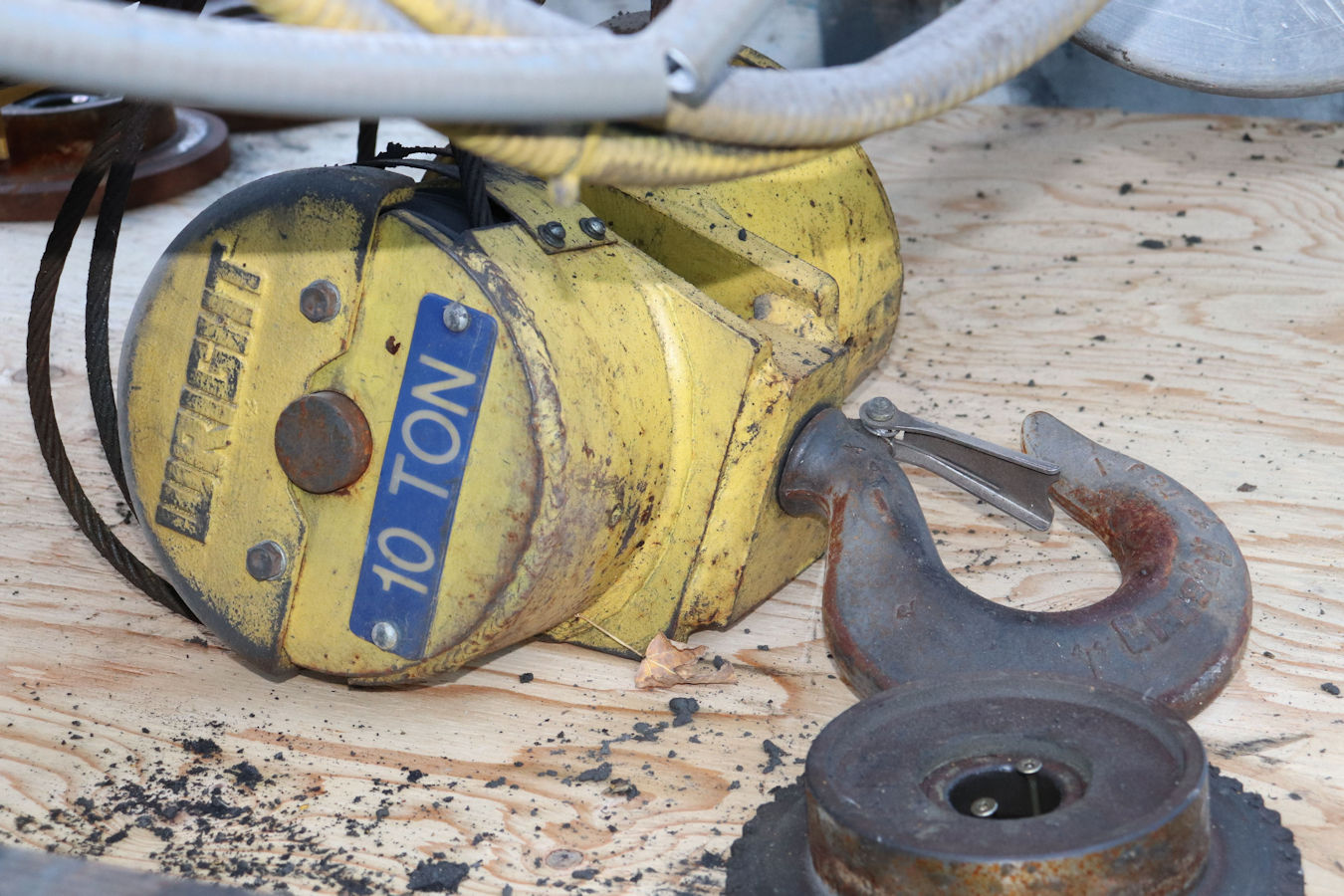

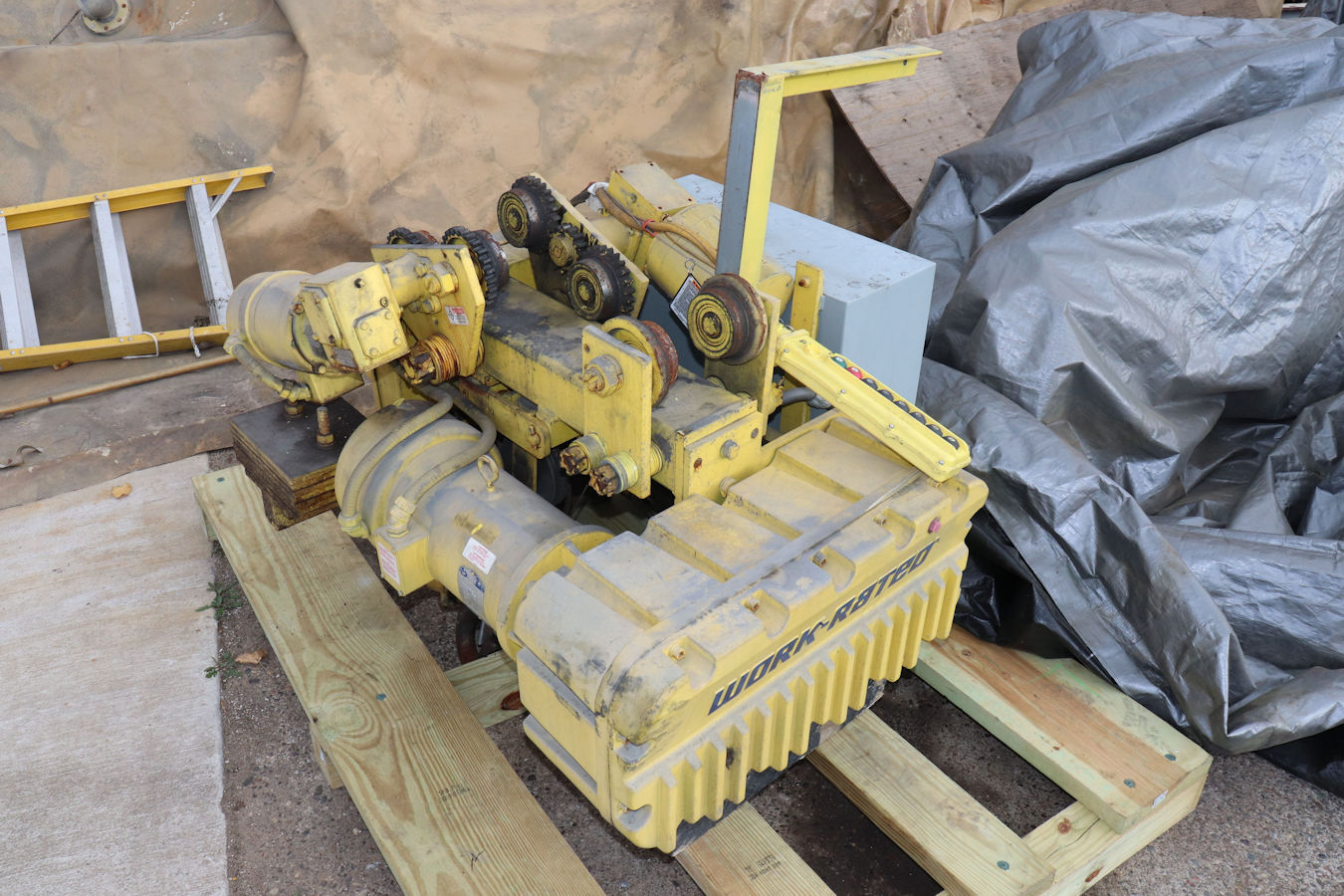

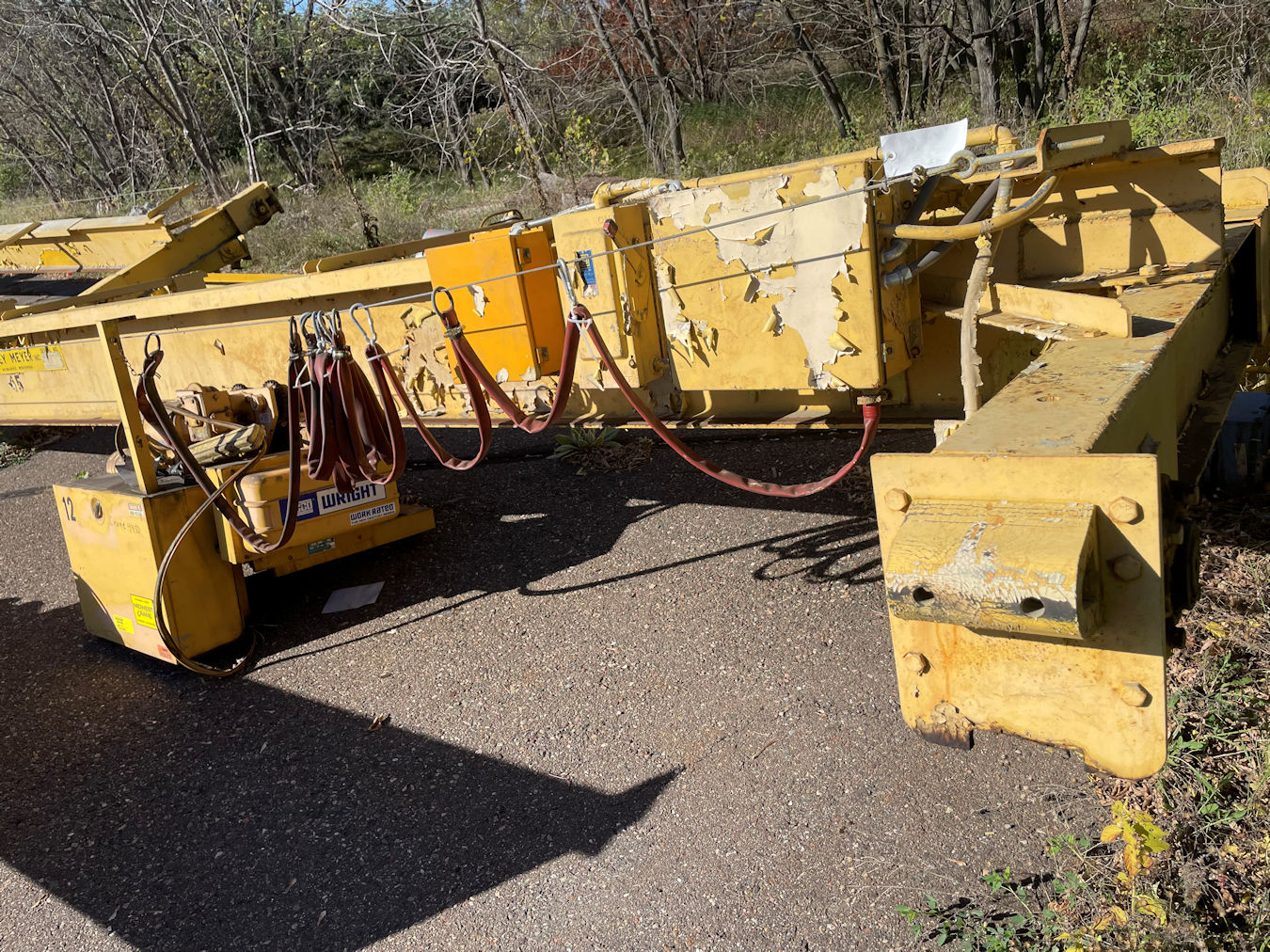

Bridge Crane 10 Ton Detroit 45' Span, Top running, Single girder, Detroit 10 ton hoist, 2 Speed, 22' Lift, 2 Speed bridge, Single speed trolley, Low headroom, Pendant control, 46' Overall length, (100' of Double sided runway Available) (PHOTO) (VIDEO) P.O.R.	Bridge Crane 10 Ton Orley Meyer (Photos & Info Coming Soon) Price on request (P.O.R.)
Bridge Crane 15 Ton Dearborn Top running, 36' 1" Span (between crane rails), AC, Double girder, Pendant, R&M Space master D8-15-31, S# 158587VB1, Low headroom hoist, 10hp, 3/4hp Trolley motor, 20' Lift, 5' Overall height, 36' 1" Across end truck wheels, 36' 11.5" Overall span, 1988, Pendant, Radio control on crane, No remote, 208/230/460/3/60 (PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) $16,500 SOLD	Bridge Crane 15 Ton Sheppard Niles 34' 1" Overall length of bridge, 33' Center to center on running wheels, Requires 48" min head room, 11' 5" Wide, Beams are 21"H x 16"W x 1/2", AC, Top running, Double girder, Pendant, 20' Lift, S# 67266 (PHOTO1) (PHOTO2) (PHOTO3) (VIDEOCLIP) $14,500 SOLD
Bridge Crane 25 Ton Detroit Hoists Top running, 36' Span, AC Top running, Double girder (33" tall x 12" flange), 15' Lift, new 1985, 9' 8" Wide end trucks (9' Between wheels) (PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) P.O.R. SOLD	Crane Run Way Beams for Under Hung Type Cranes TC/American 3RH26-90, 26" Tall x 1/2" web, 14" x 3/4" Top flange, 3-1/4" (Hardened) Bottom flange, 89.3#/Foot, 16,074#, 90' of Double sided*, 3 1/4" Bottom width 30' lengths, 180' Available (PHOTO) P.O.R.
Crane Run Way Beams for Under Hung Type Cranes TC/American 3RH24-84, 24" Tall x 1/2" web, 15" x 3/4" Top flange, 3-1/4"(Hardened) Bottom flange, 83.7#/Foot, 20,088#, 120' of Double sided, 30' Lengths, 240' Available (PHOTO) P.O.R.	Crane Run Way Beams for Under Hung Type Cranes TC/American 3RH20-67, 20" Tall x 1/2" web, 13" x 5/8" Top flange, 3-1/4" (Hardened) Bottom flange, Drilled & painted, 66.5#/Foot, 47,880#, (24) 30' Beams, 360' of Double sided, 720' Available (PHOTO1) (PHOTO2) (PHOTO3) P.O.R.
Crane Run Way I Beams for Under Hung Type Cranes Sold by the Foot, 300' of 12 3/4" Beam, 268' of 11 1/2" Beams, 174' of 10 1/4" Beams, New cost on these run way beams are $100/ft, They are heat treated so they have spring steel bottoms on them that are 3 1/4" wide, Most the beams are in 20' to 40' lengths $50 per ft	Crane Run Way Beams for Under Hung Type Cranes Sold by the foot, For 3 ton cranes, 600' Available $25 per ft

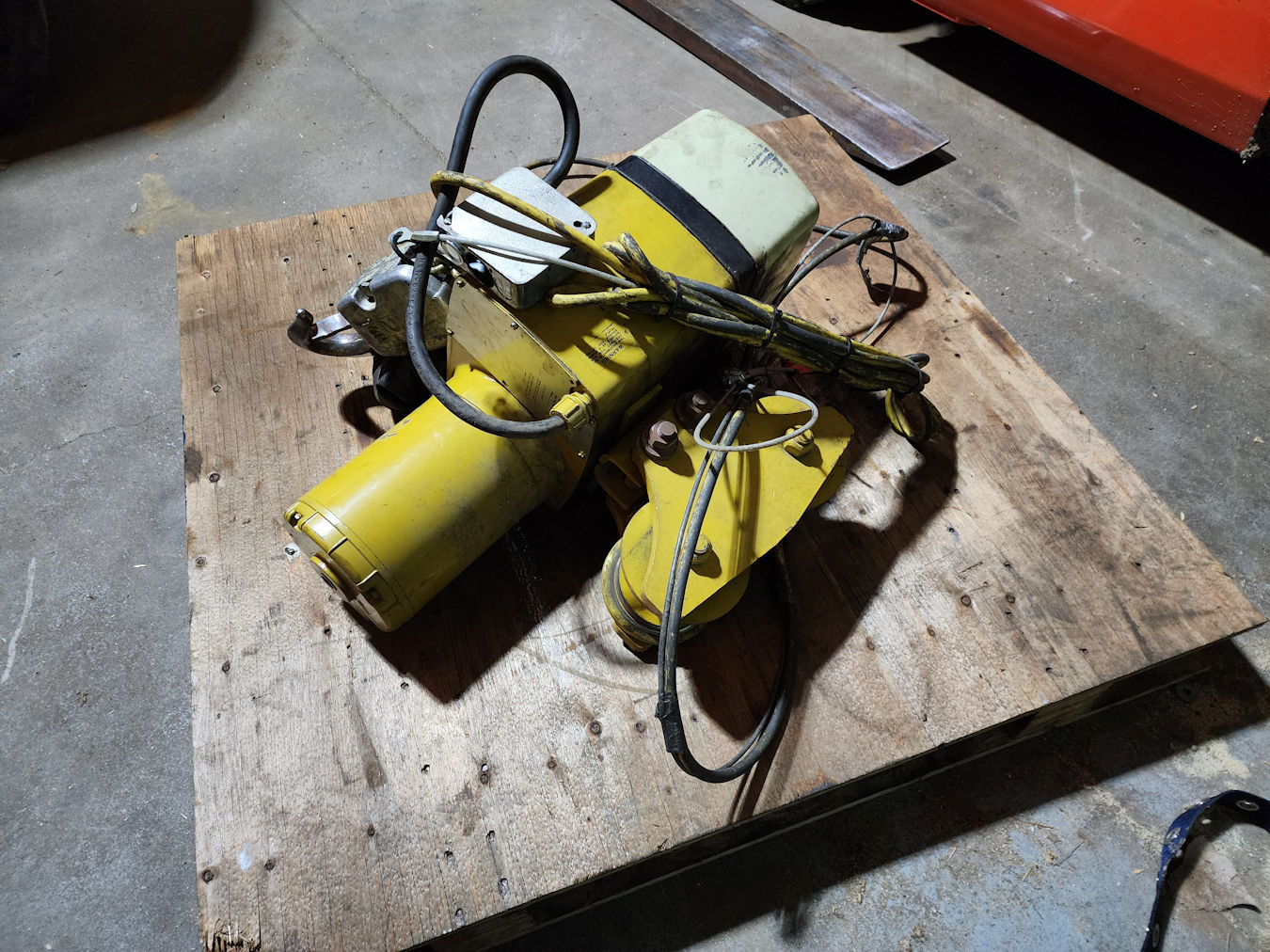

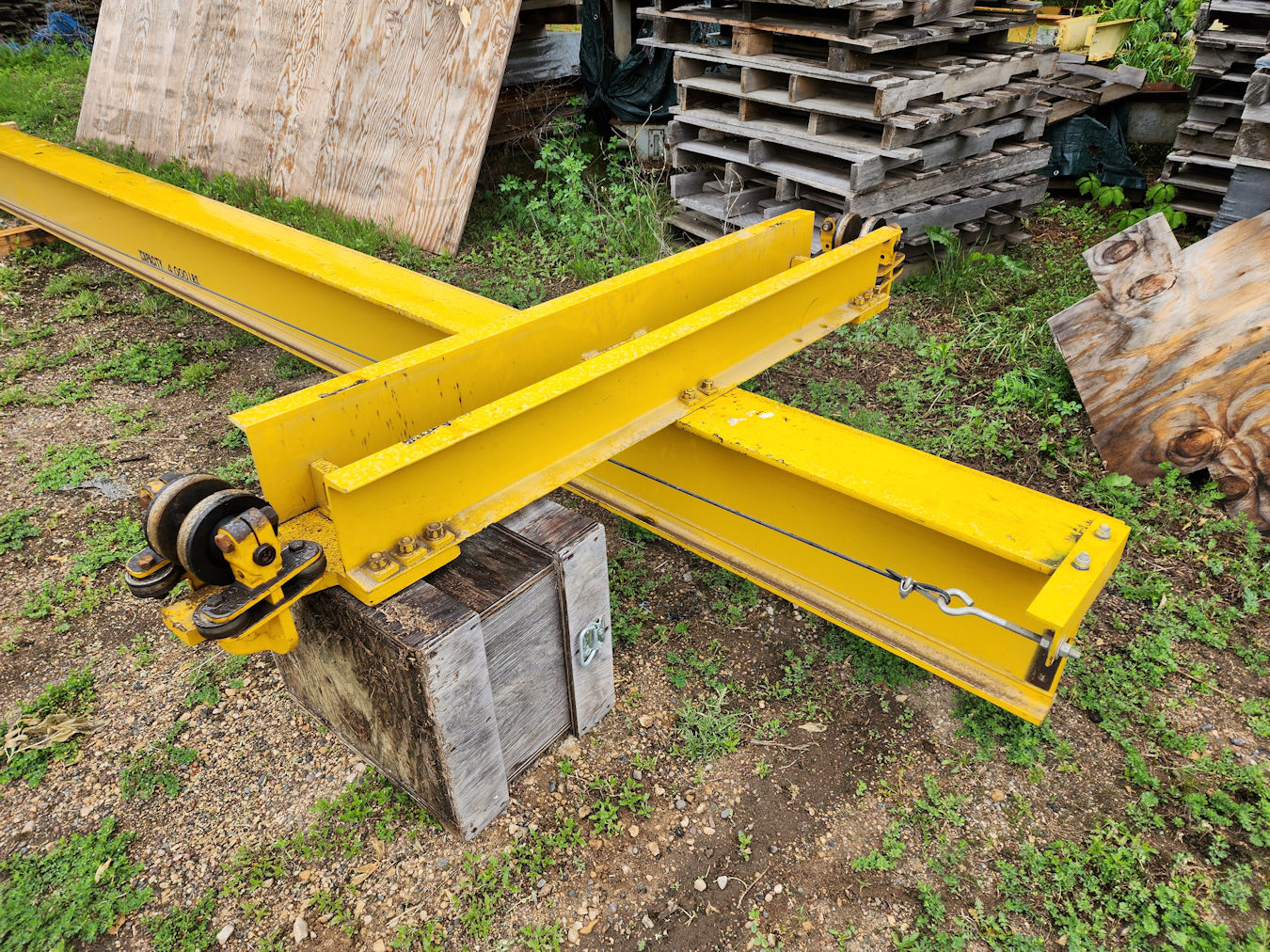

Cleveland Tramrail 2 Ton 22' Bridge cranes, Under hung type, With 2 ton CM chain hoist, With power rail pickups, Manual pull type, Cranes are made to hook up with each other for in-between bays and pull hoist from one bridge to another with 2 cranes installed, Have run way available, Just purchased (PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) $2,200 each (5 in stock)	Louden 3 Ton Bridge Crane 22' Span, Under slung type, Powered, C&M Heavy duty hoist, 100's of ft of runway available, They have a rail to hook between the 2 bridges to transfer between 2 bays (PHOTO1) (PHOTO2) P.O.R. (2 in stock)
