Baileigh Power Hammers |
 |
Planishing Hammer PH-36A
Model PH-36A, Air operated 80 to 120 psi, Foot pedal control, 16ga Mild steel capacity, 14ga aluminum capacity, 11"
Tooling height adjustment, Variable speed 3,200 beats/min, 36" Throat depth, Shipping Dim. 60"L x 44"W x
68"H, Shipping weight 200 lbs.
(PHOTO)
P.O.R. |
 |

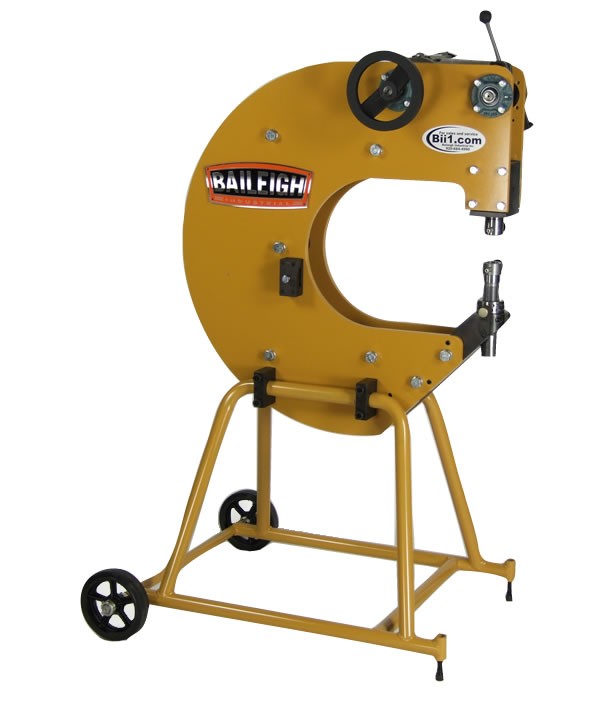

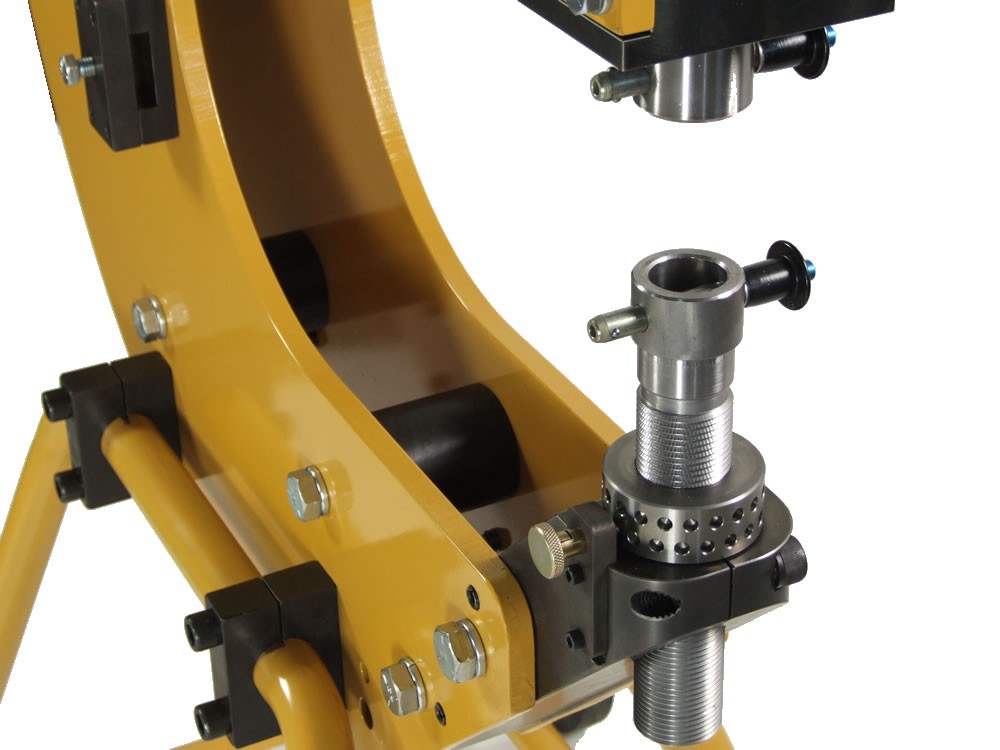

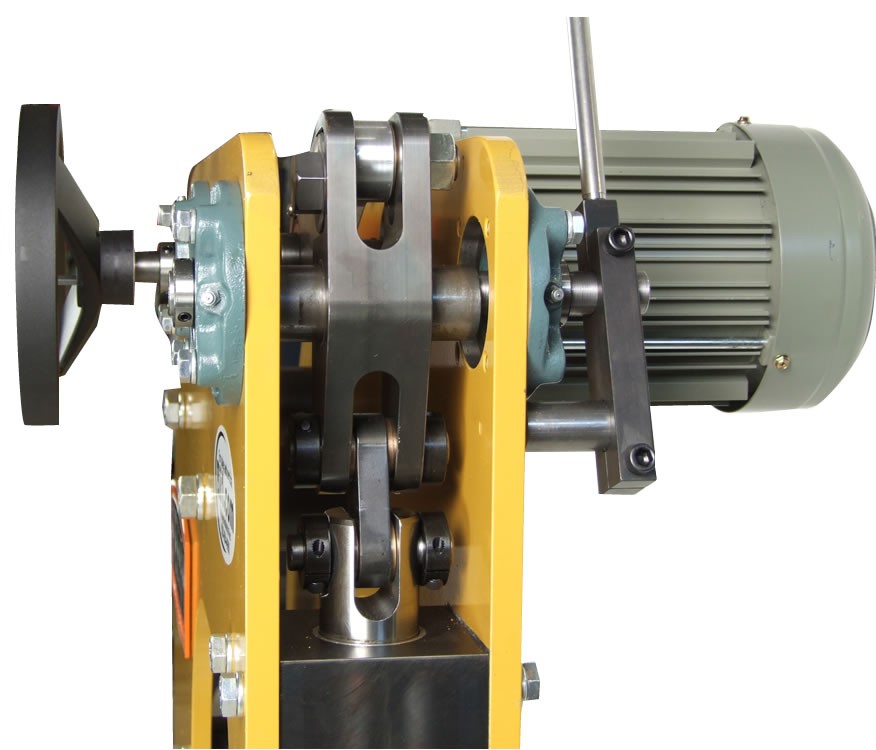

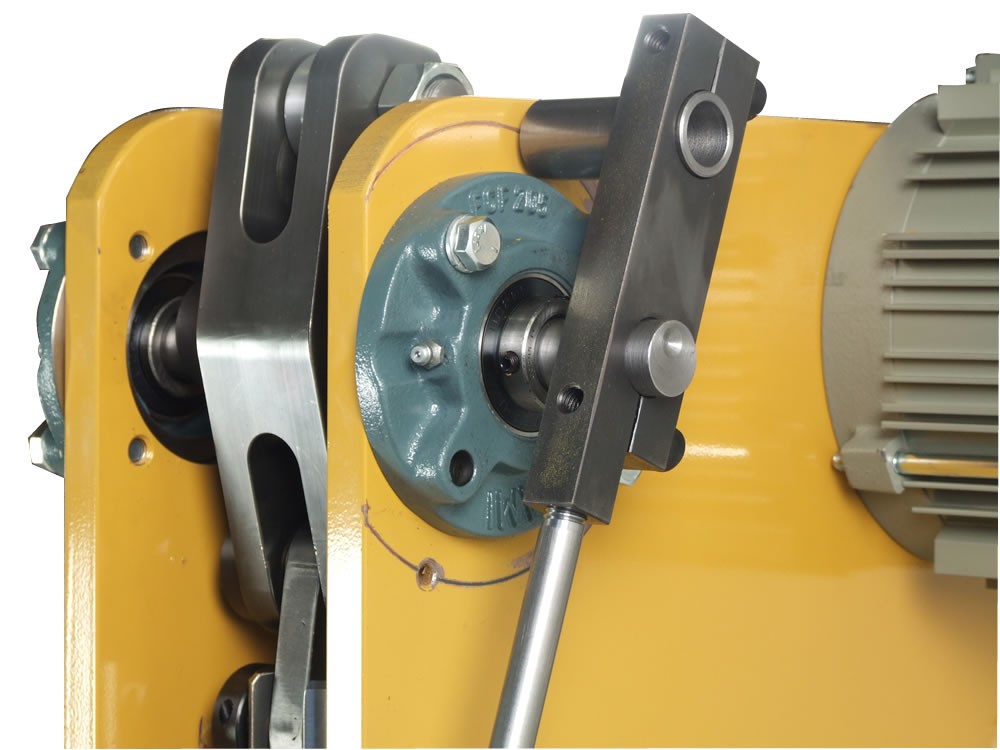

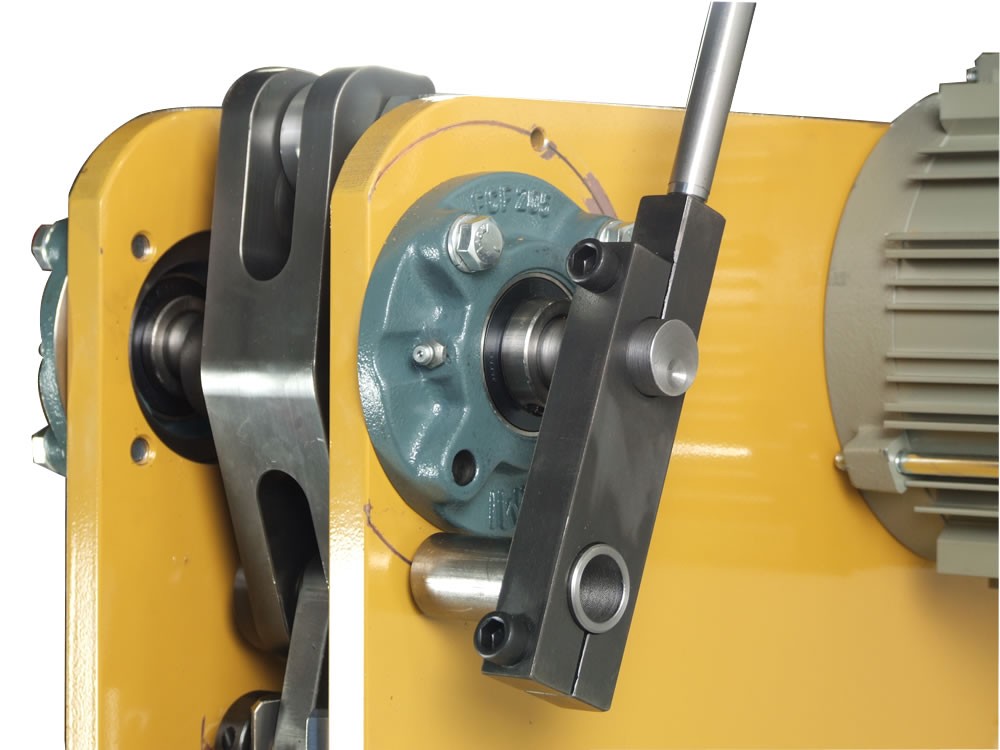

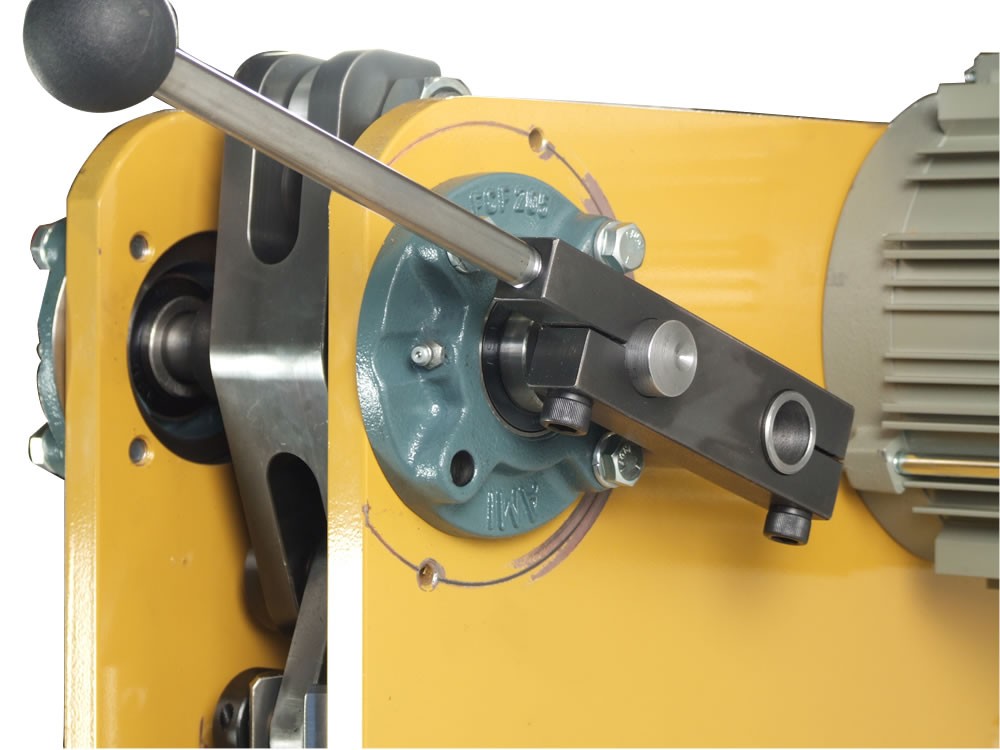

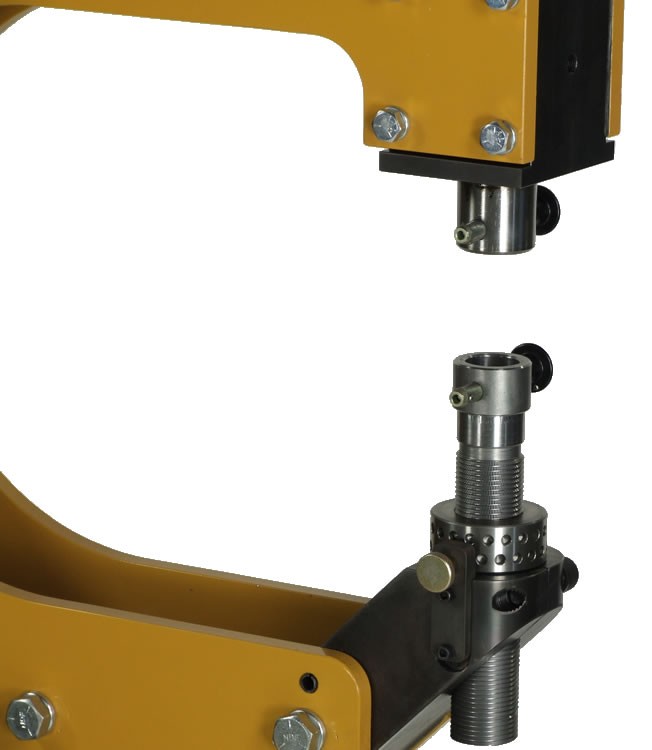

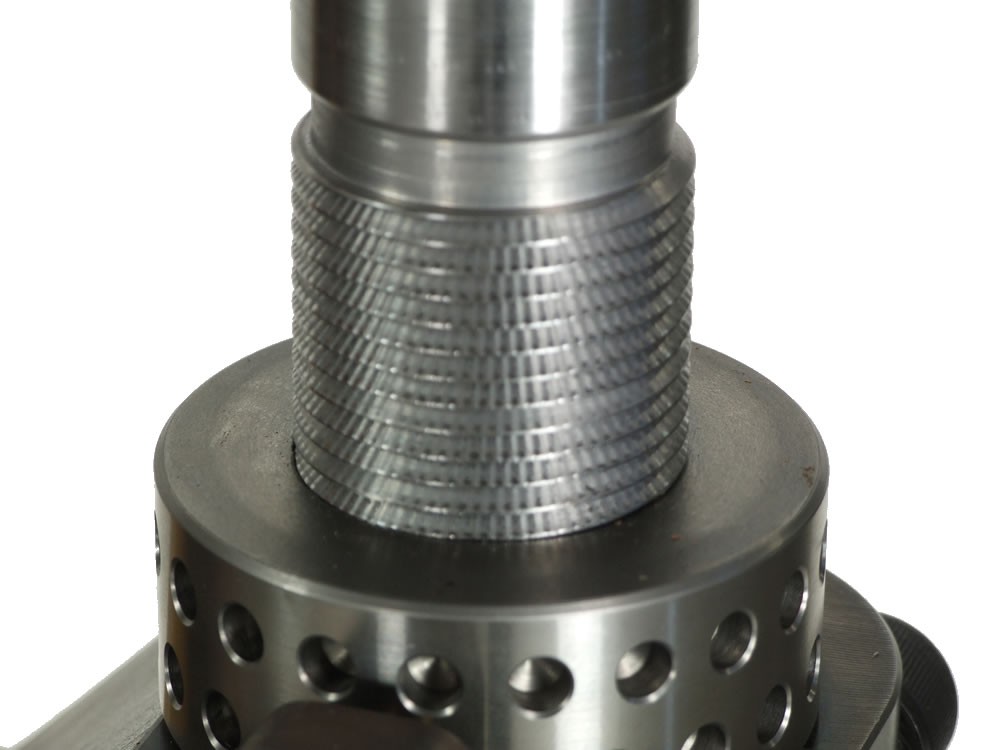

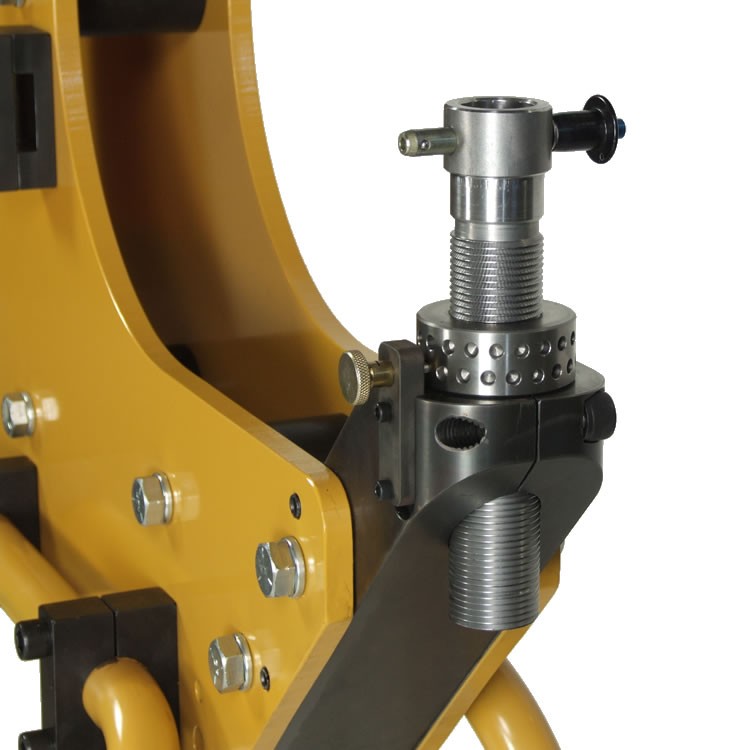

Planishing Hammer PH-19
Model PH-19, Power operated, 16ga Mild steel capacity, 12ga aluminum capacity, 5" Tooling height adjustment, Speed
from 0 to 1,700 beats/min, 19" Throat depth, 110v 1ph, Shipping Dim. 60"L x 48"W x 84"H,
Shipping weight 1,000 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
P.O.R. |
 |
Planishing Hammer PH-19VS
Model PH-19VS, Power operated, 16ga Mild steel capacity, 12ga aluminum capacity, 5" Tooling height adjustment, Variable
speed inverter drive from 0 to 1,700 beats/min, 19" Throat depth, 110v 1ph, Shipping Dim. 60"L x 48"W x 84"H,
Shipping weight 1,000 lbs.
(PHOTO)
P.O.R. |
 |
Planishing Hammer MH-19
Model MH-19, Power operated, 16ga Mild steel capacity, 12ga aluminum capacity, 2" Tooling height adjustment,
Variable speed inverter drive from 0 to 1,500 beats/min, 19" Throat depth, On the fly stroke adjustment,
.177"-.550" Length of stroke, Quick release adjustment handles, Quick change tooling system, Tooling
racks, One set of thumbnail shrink dies, One flat top and one lower planishing die, 220v 1ph, Shipping Dim.
60"L x 60"W x 84"H, Shipping weight 1,600 lbs.
(PHOTO)
P.O.R. |
|
