Baileigh Shears |
|
52" x 16ga Foot Shear SF-5216E
Model SF-5216E, 52" Cutting length, Max thickness 16ga mild steel & 20ga stainless, 33" Back gauge, 20"
Front gauge, 1° Blade angle, Shipping Dim. 66"L x 30"W x 46"H, Shipping weight 1,199 lbs.
(PHOTO)
P.O.R. |
|
52" x 16ga Heavy Duty Foot Shear SF-5216
Model SF-5216, 52" Cutting length, Max thickness 16ga mild steel & 20ga stainless, 24" Back gauge, 24"
Front gauge, 1° Blade angle, Shipping Dim. 67"L x 29"W x 53"H, Shipping weight 996 lbs.
(PHOTO)
P.O.R. |
|

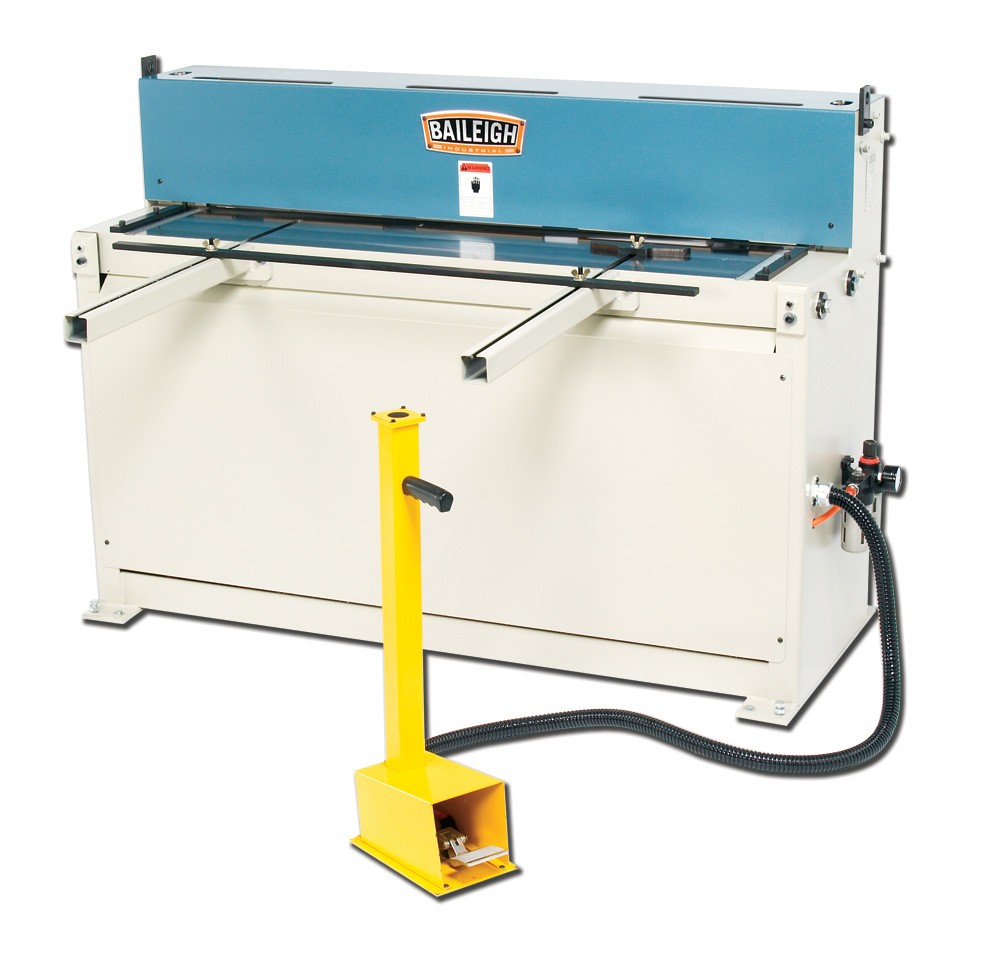

52" x 16ga Sheet Metal Air Shear SH-5216A
Model SH-5216A, 52" Cutting length, Max thickness 16ga mild steel & 20ga stainless, Cutting speed 20 strokes
per min, 24" Back gauge, 24" Front gauge, Working height 32", 1° Blade angle, Air required 90 to 115
psi, Shipping Dim. 75"L x 33"W x 55"H, Shipping weight 1,220 lbs.
(PHOTO)
P.O.R. |
|

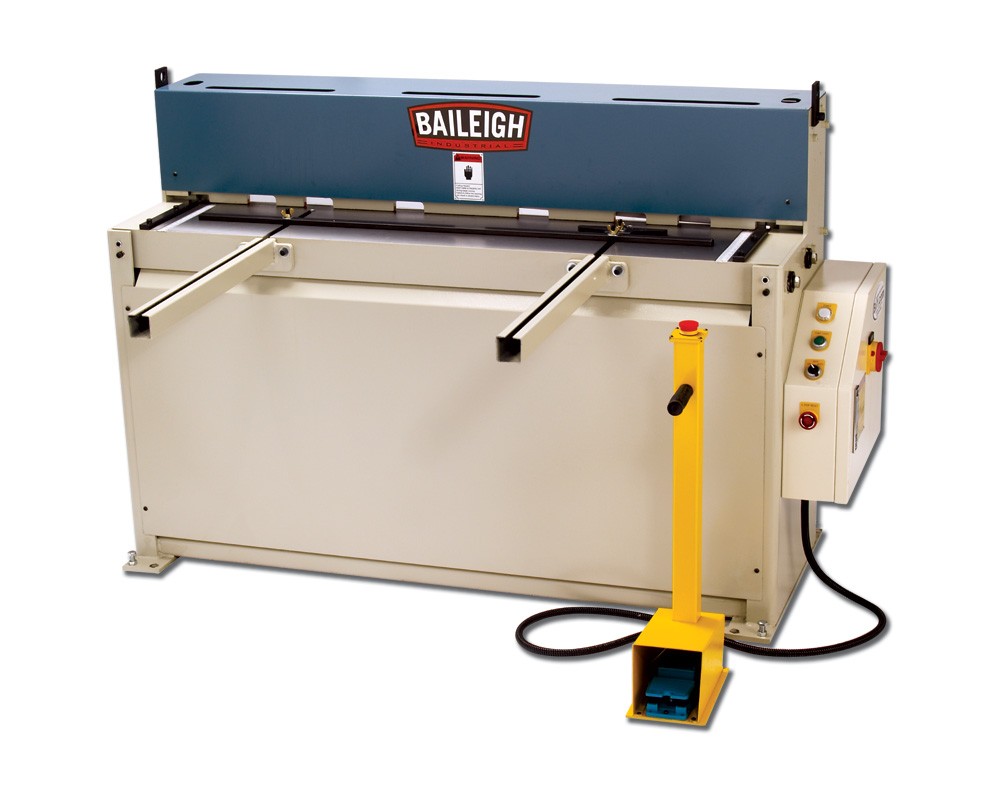

52" x 14ga Hydraulic Shear SH-5214
Model SH-5214, 52" Cutting length, Max thickness 14ga mild steel & 18ga stainless, Cutting speed 35 strokes
per min, 24" Back gauge, 24" Front gauge, 1° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 3hp 220v 1ph, Shipping Dim. 74"L x 36"W
x 53"H, Shipping weight 1,881 lbs.
(PHOTO)
P.O.R. |
|
52" x 10ga Hydraulic Shear SH-5210
Model SH-5210, 52" Cutting length, Max thickness 10ga mild steel & 13ga stainless, Cutting speed 28 strokes
per min, 24" Back gauge, 24" Front gauge, 1° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 5hp 220v 1ph, Shipping Dim. 75"L x 36"W
x 53"H, Shipping weight 3,000 lbs.
(PHOTO)
P.O.R. |
|

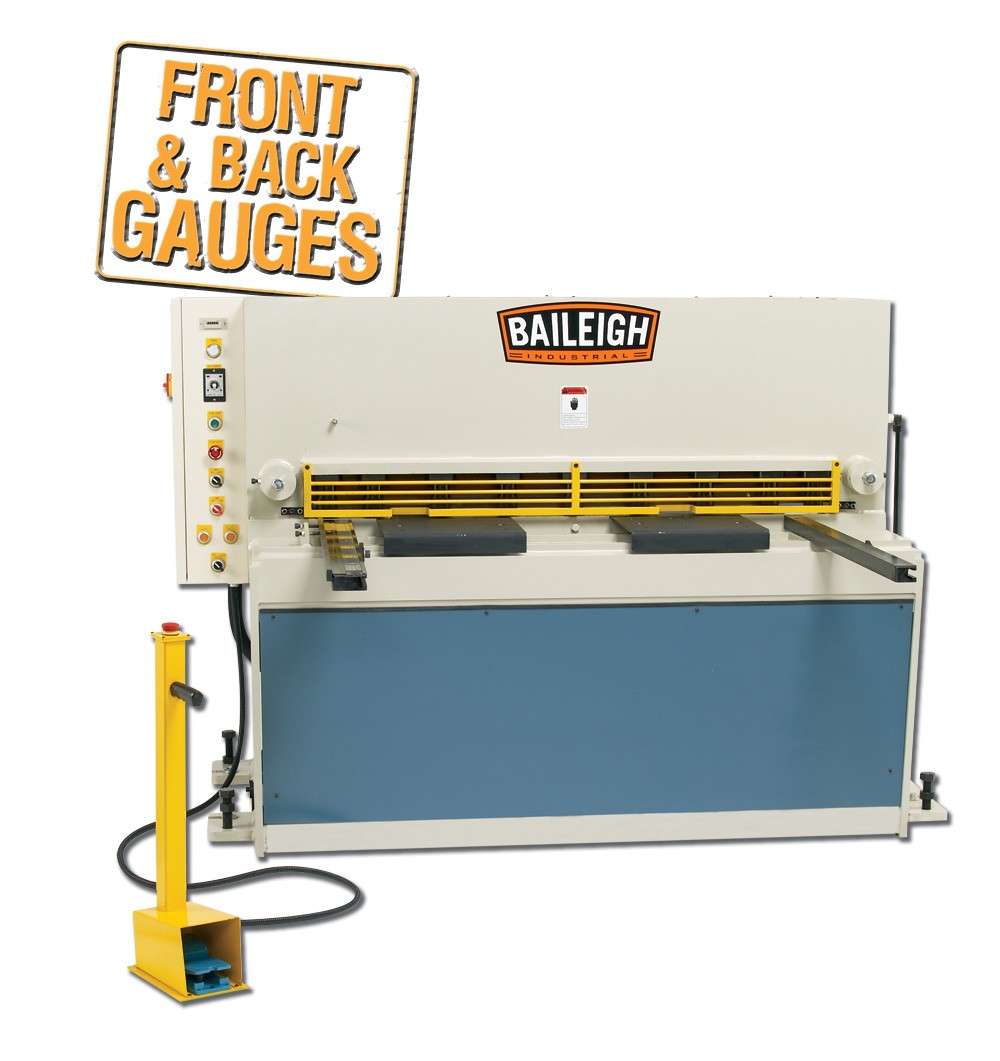

52" x 10ga Heavy Duty Hydraulic Shear SH-5210-HD
Model SH-5210-HD, 52" Cutting length, Max thickness 10ga mild steel & 13ga stainless, Cutting speed 35 to 47
strokes per min, 23.62" Back gauge, 39.37" Front gauge, 1/2° to 2° Adjustable blade angle, Control
console with jog on the upper carriage and auto mode by holding the foot pedal down, Hydraulic rake adjustment, Hydraulic
hold downs, Heavy duty load table, Side gauges, Shadow line lighting, 7.5hp 220v 3ph, Shipping Dim. 91"L x 48"W
x 63"H, Shipping weight 3,960 lbs.
(PHOTO)
P.O.R. |
|

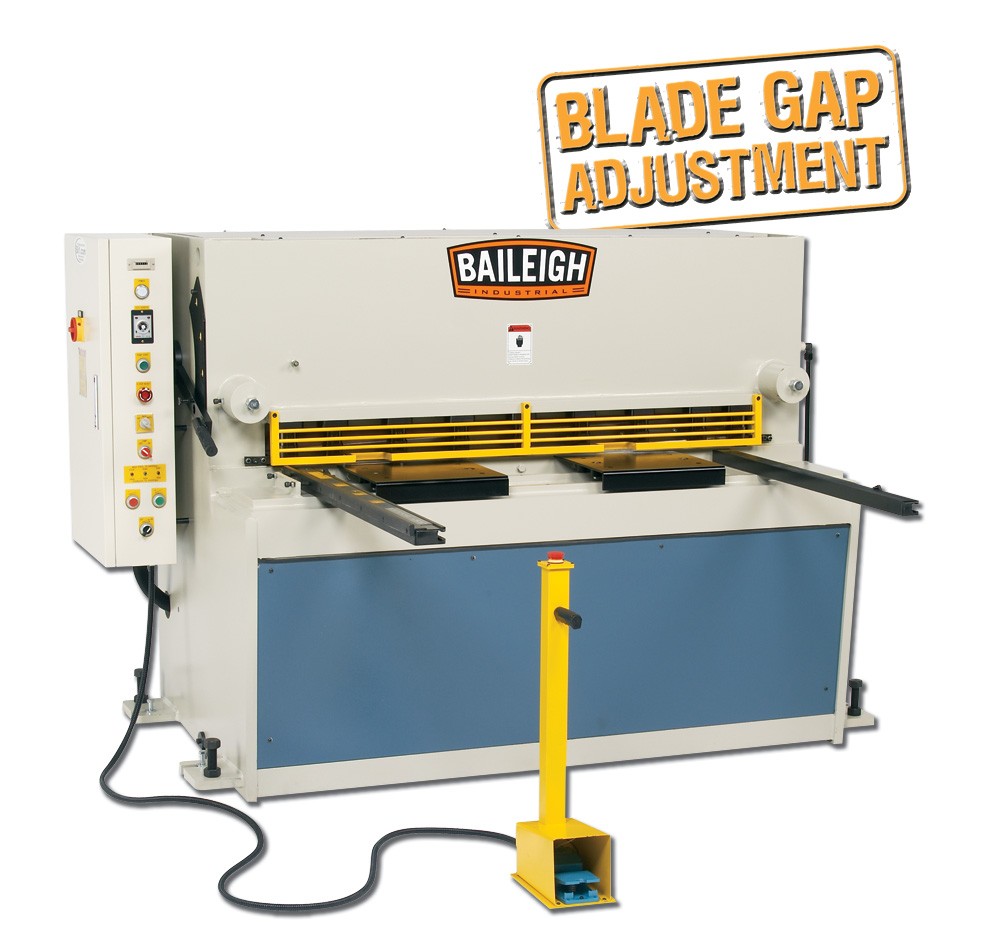

52" x 8ga Heavy Duty Hydraulic Shear SH-5208-HD
Model SH-5208-HD, 52" Cutting length, Max thickness 8ga mild steel & 12ga stainless, Cutting speed 30 to 42
strokes per min, 23.62" Back gauge, 39.37" Front gauge, 1/2° to 2° Adjustable blade angle, Control
console with jog on the upper carriage and auto mode by holding the foot pedal down, Hydraulic rake adjustment, Hydraulic
hold downs, Heavy duty load table, Side gauges, Shadow line lighting, 10hp 220v 3ph, Shipping Dim. 91"L x 48"W
x 63"H, Shipping weight 4,400 lbs.
(PHOTO)
P.O.R. |
|

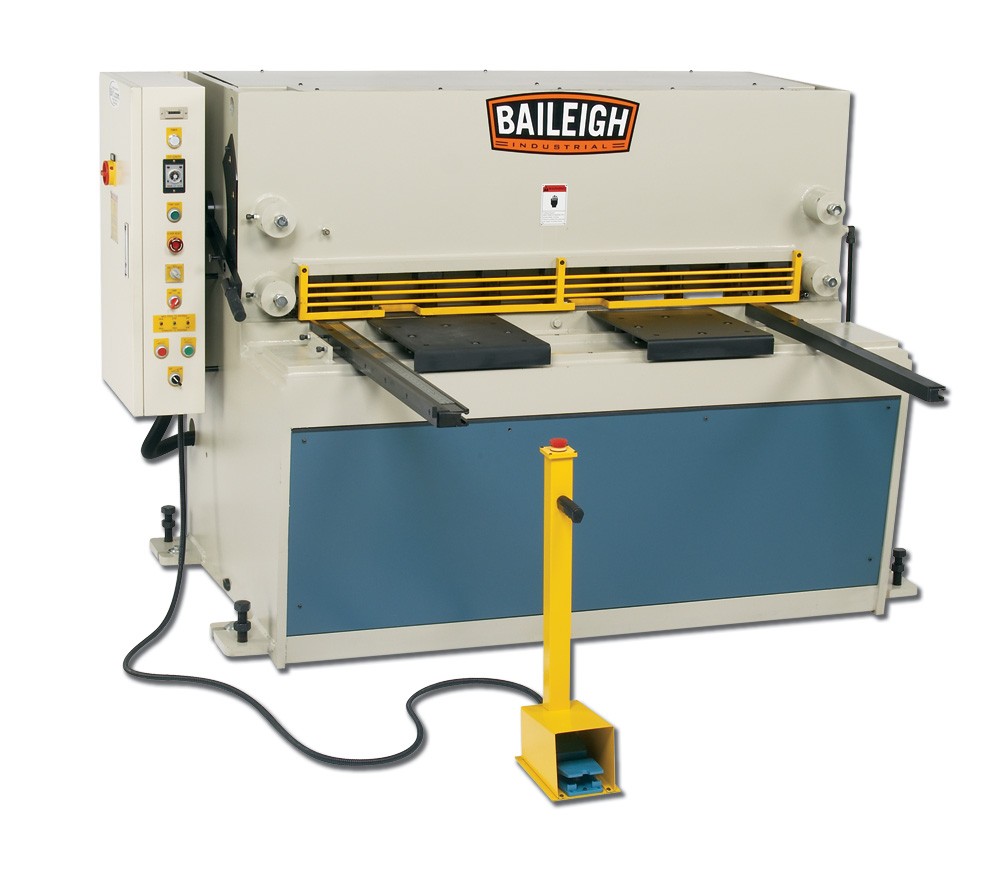

52" x 1/4" Heavy Duty Hydraulic Shear SH-5203-HD
Model SH-5203-HD, 52" Cutting length, Max thickness 1/4" mild steel & 7ga stainless, Cutting speed 28 to 40
strokes per min, 23.62" Back gauge, 39.37" Front gauge, 1/2° to 2° Adjustable blade angle, Control console
with jog on the upper carriage and auto mode by holding the foot pedal down, Hydraulic rake adjustment, Hydraulic hold downs,
Front roller tables, Shadow line lighting, 15hp 220v 3ph, Shipping Dim. 91"L x 54"W x 65"H, Shipping weight
5,720 lbs.
(PHOTO)
P.O.R. |
|

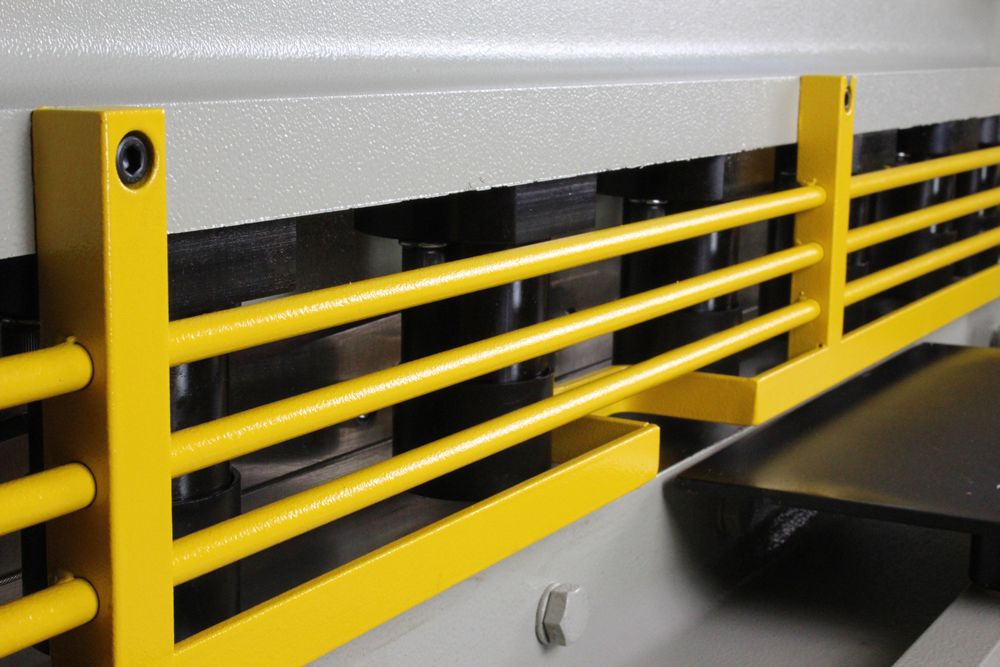

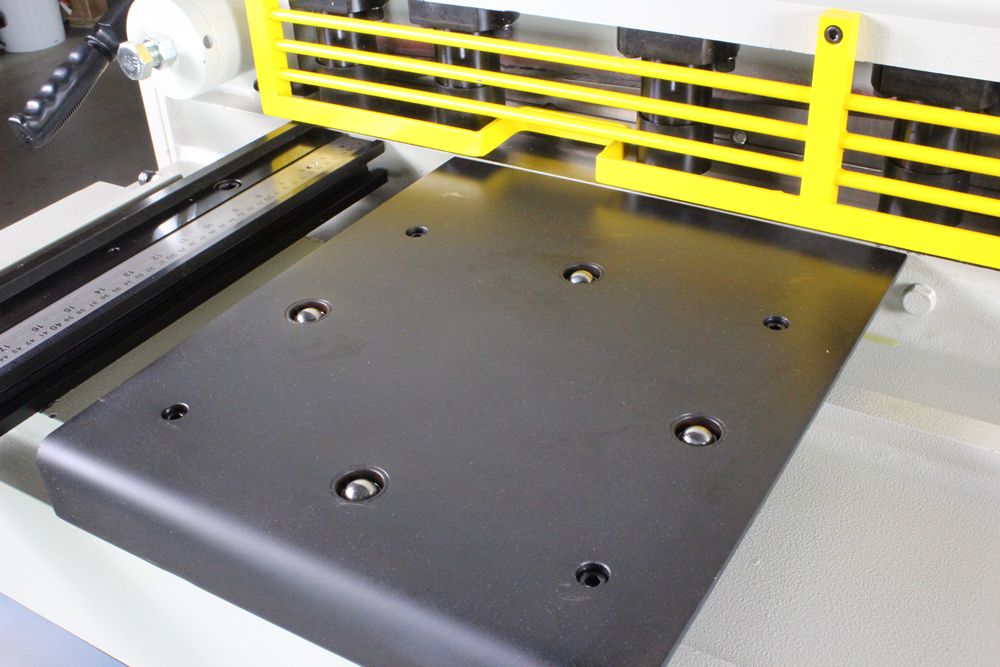

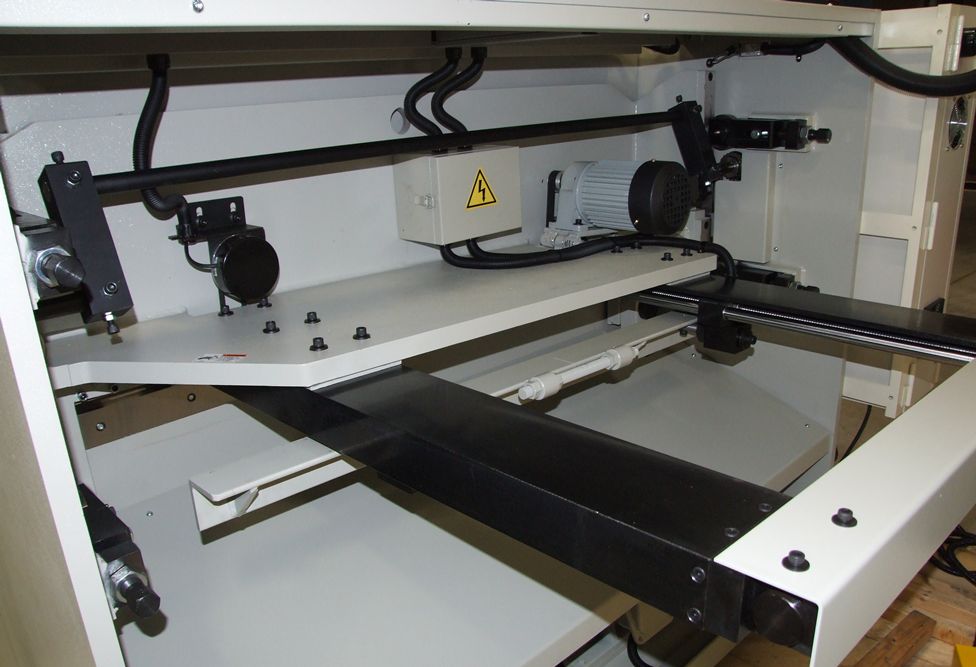

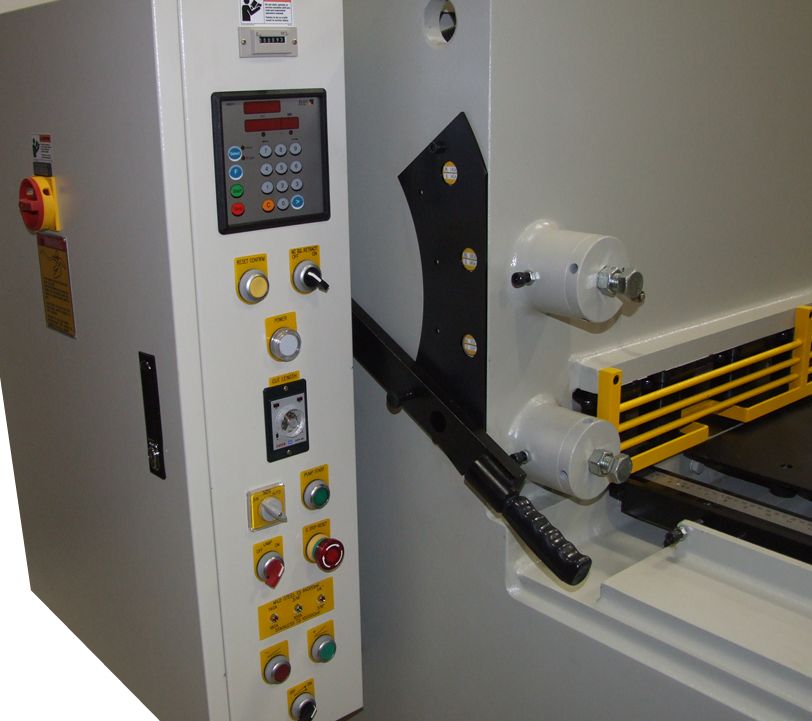

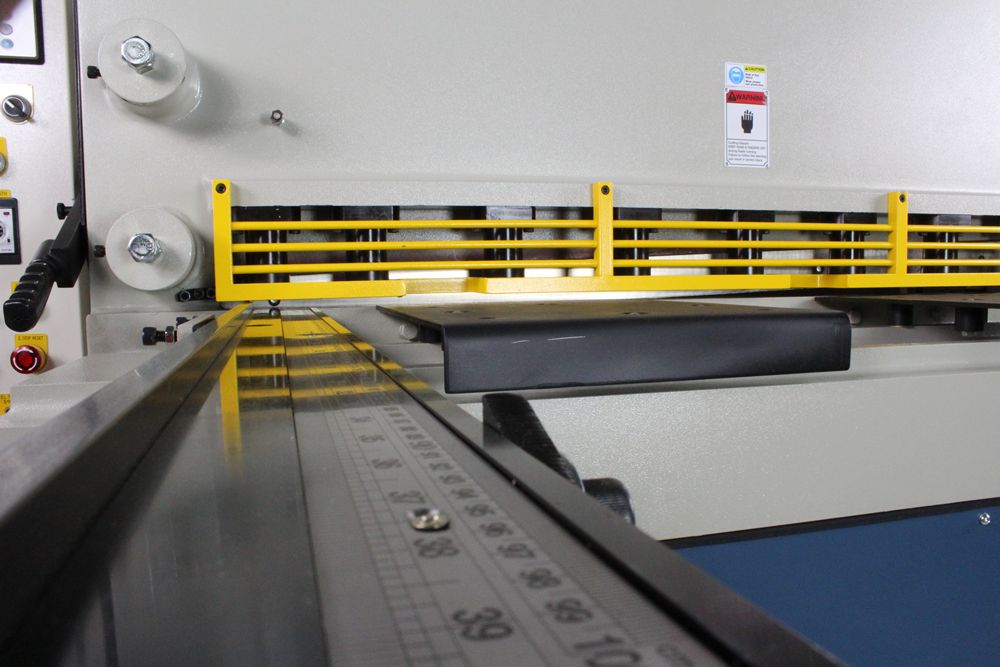

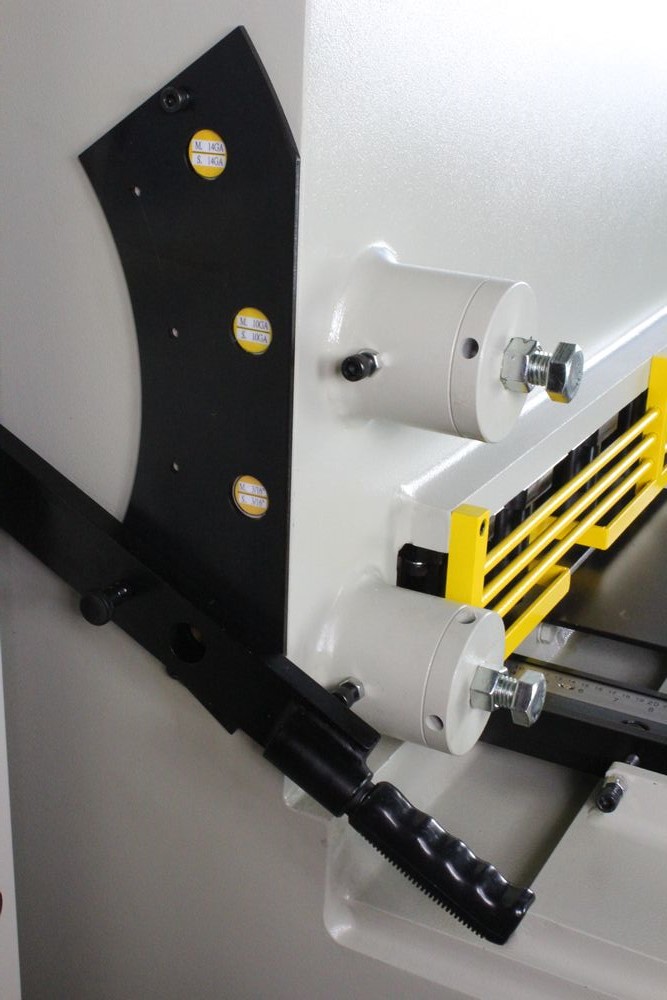

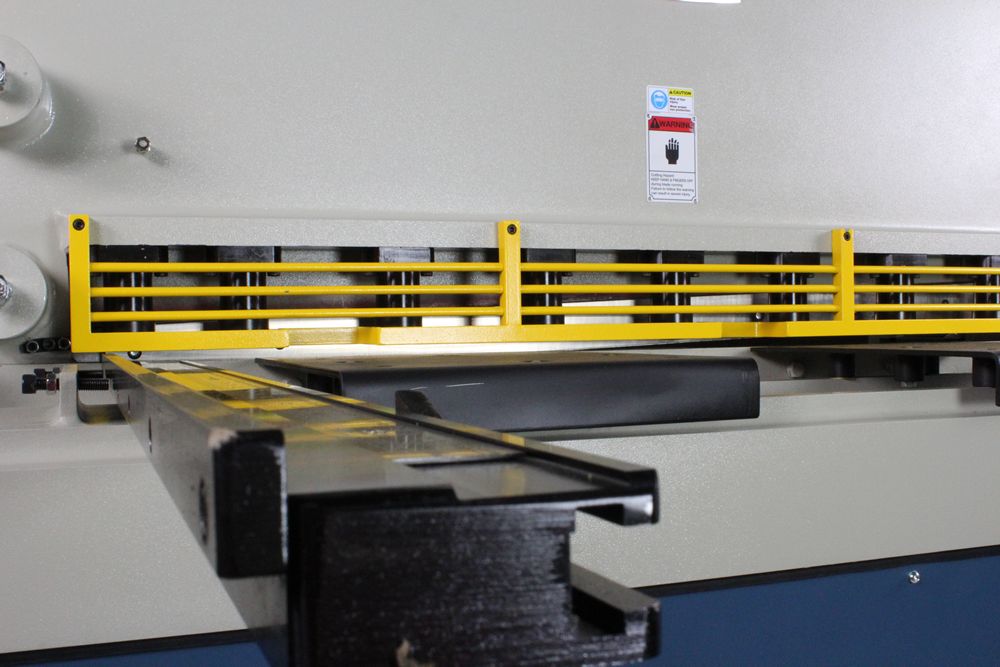

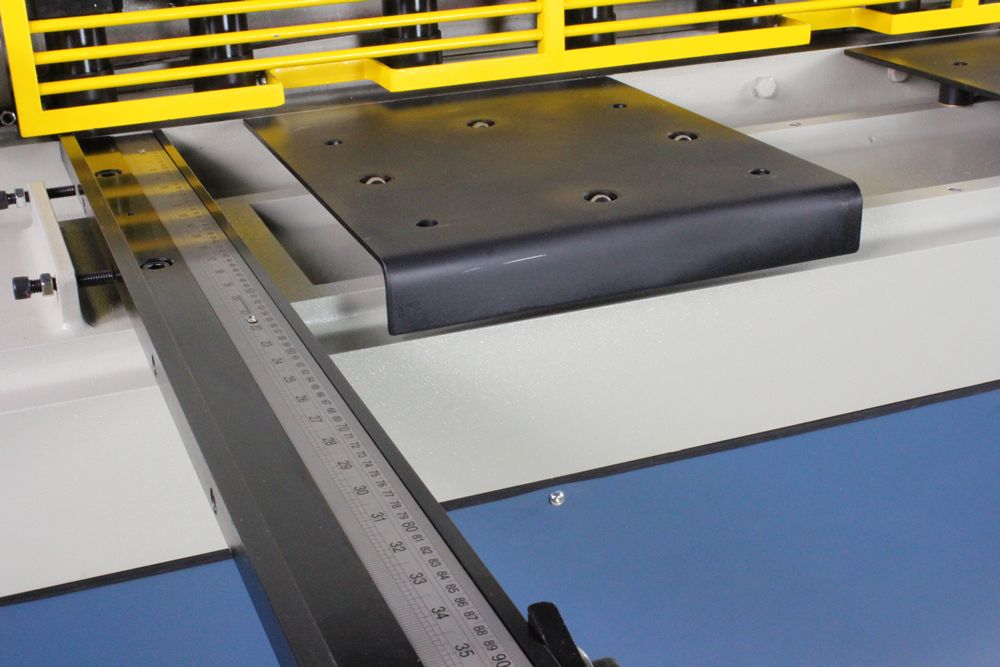

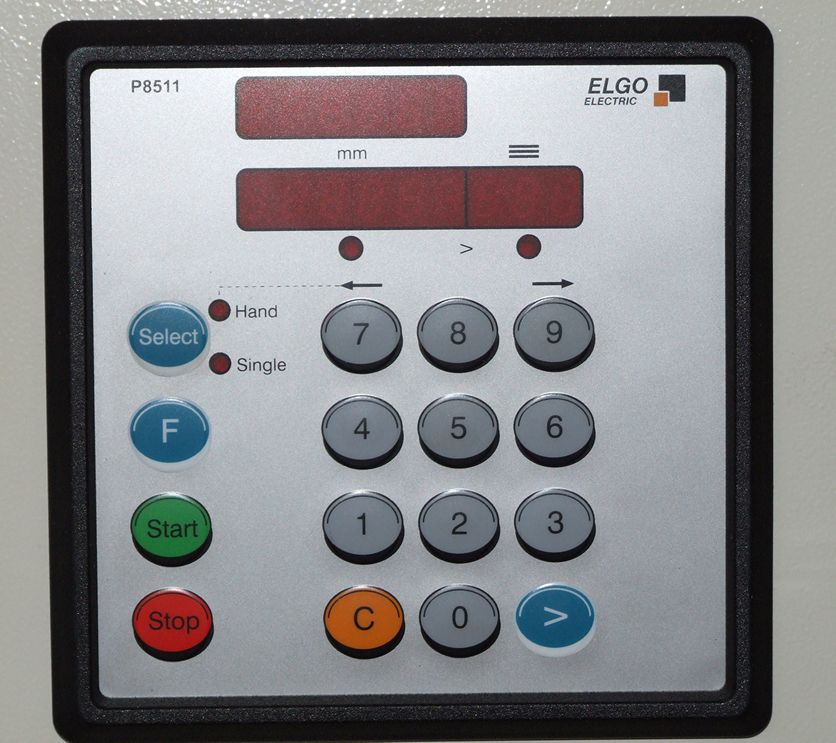

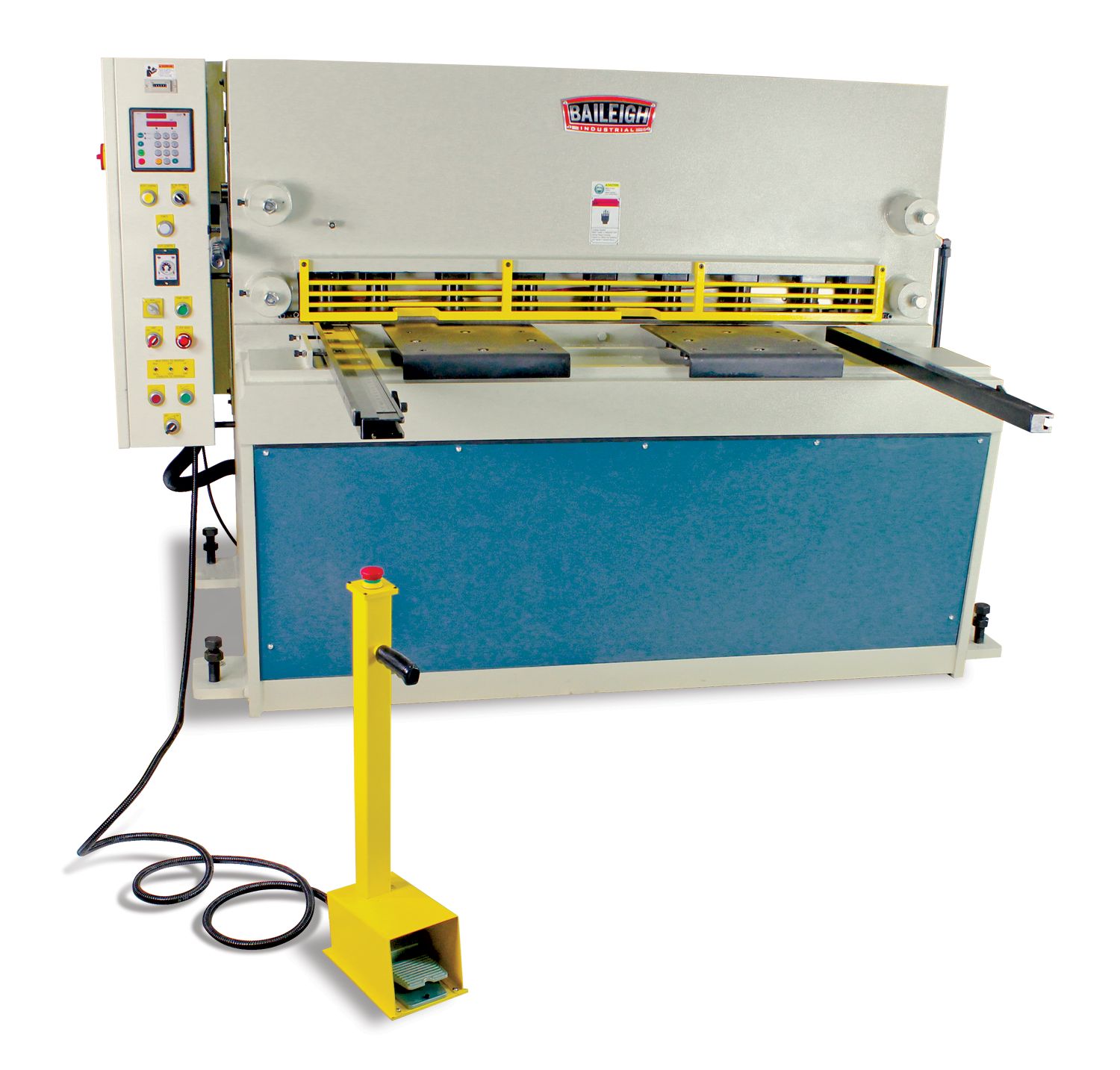

52" x 1/4" Heavy Duty Hydraulic Shear SH-5203-HD-NC
Model SH-5203-HD-NC, 52" Cutting length, Max thickness 1/4" mild steel & 7ga stainless, Cutting speed 28 to 40
strokes per min, 23.62" Back gauge, 39.37" Front gauge, 1/2° to 2° Adjustable blade angle, Control console
with jog on the upper carriage and auto mode by holding the foot pedal down, Hydraulic rake adjustment, 8 Hydraulic hold downs,
Front roller tables, Shadow line lighting, 15hp 220v 3ph, Shipping Dim. 91"L x 54"W x 65"H, Shipping weight
5,720 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
(PHOTO9)
(PHOTO10)
(PHOTO11)
P.O.R. |
|

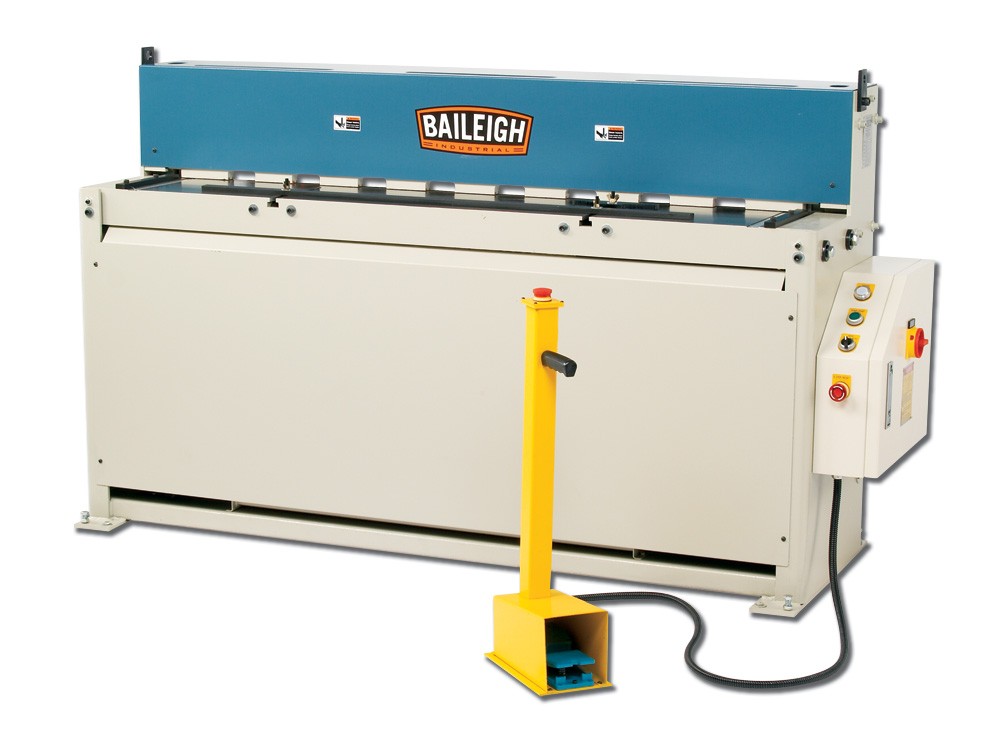

60" x 14ga Hydraulic Shear SH-6014
Model SH-6014, 60" Cutting length, Max thickness 14ga mild steel & 18ga stainless, Cutting speed 30 strokes
per min, 24" Back gauge, 24" Front gauge, 1° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, 3hp 220v 3ph, Shipping Dim. 84"L x 36"W x 56"H, Shipping
weight 3,200 lbs.
(PHOTO)
P.O.R. |
|

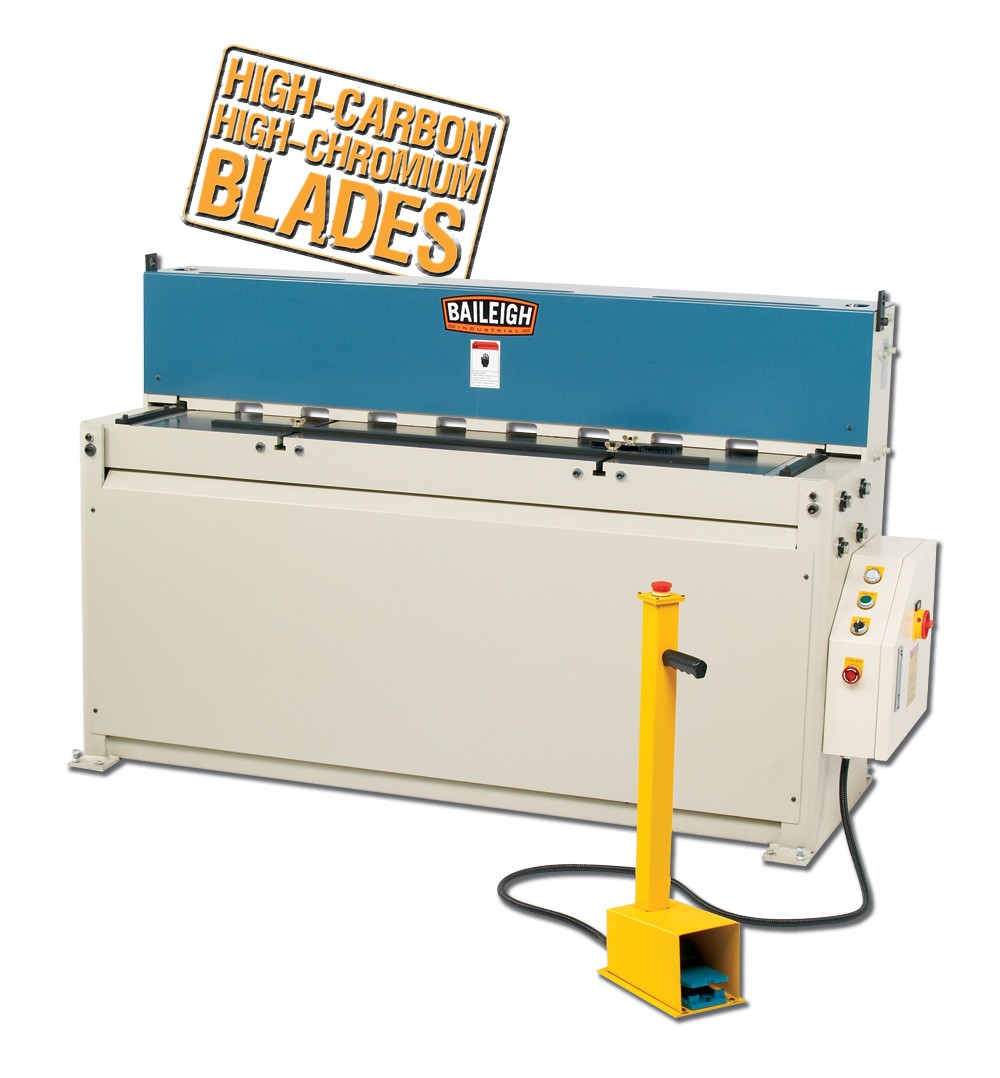

60" x 10ga Hydraulic Shear SH-6010
Model SH-6010, 60" Cutting length, Max thickness 10ga mild steel & 13ga stainless, Cutting speed 26 strokes
per min, 24" Back gauge, 24" Front gauge, 1° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 5hp 220v 3ph, Shipping Dim. 84"L x 36"W
x 56"H, Shipping weight 3,500 lbs.
(PHOTO)
P.O.R. |
|

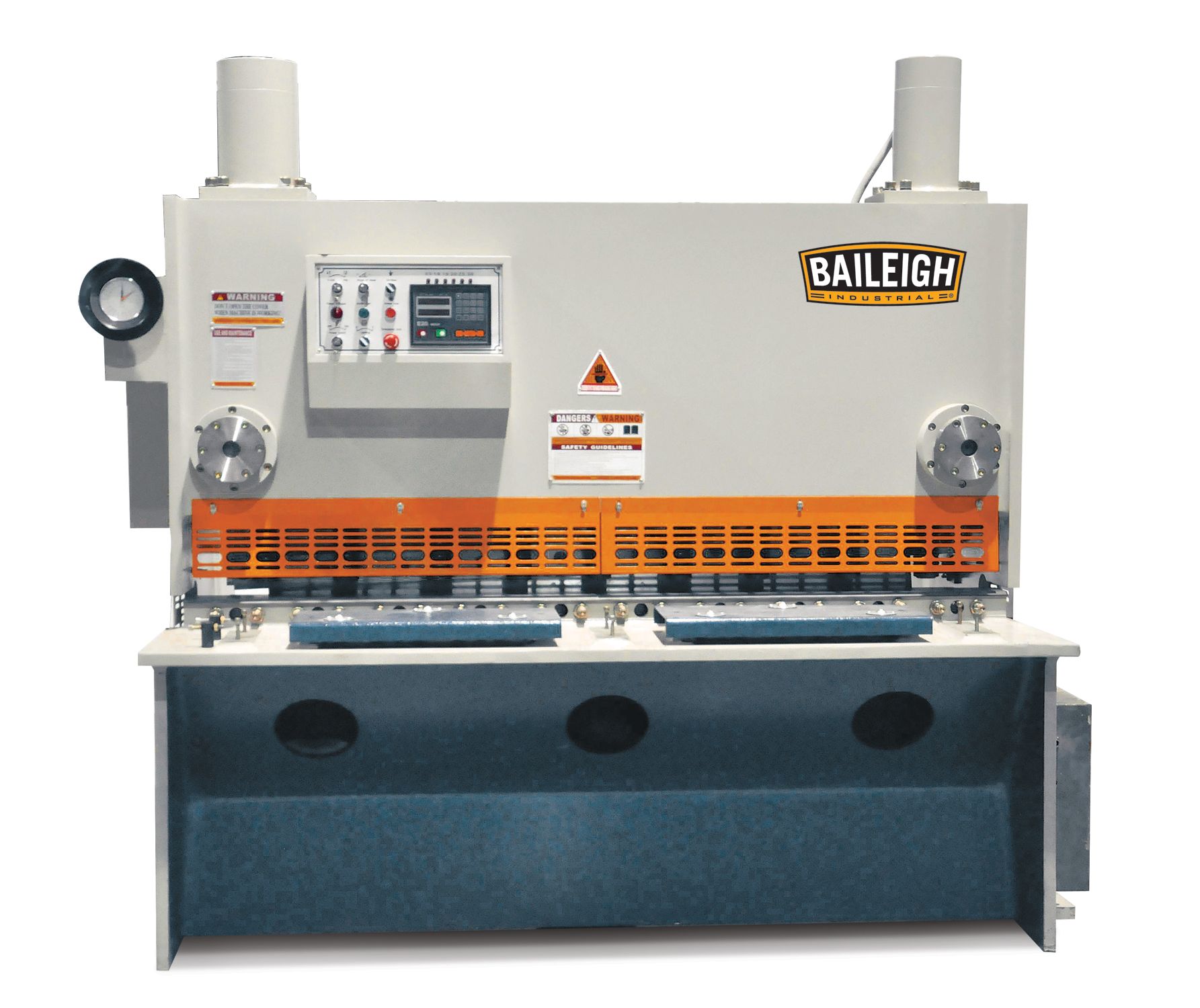

70" x 1/4" Hydraulic Shear SH-70250-HD
Model SH-70250-HD, 70.8" Cutting length, Max thickness .250" mild steel & .177" stainless, Cutting
speed 12 to 16 strokes per min, 24" Back gauge, 24" Front gauge, 1° Blade angle, E20 NC Controller for
programming the back gauge and can hold up to 100 programs, Front roller tables, Hydraulic hold downs, Shadow line
lighting, 10hp 220v 3ph, Shipping Dim. 95"L x 57"W x 73"H, Shipping weight 6,500 lbs.
(PHOTO)
P.O.R. |
|
80" x 14ga Hydraulic Shear SH-8014
Model SH-8014, 80" Cutting length, Max thickness 14ga mild steel & 18ga stainless, Cutting speed 26 strokes
per min, 24" Back gauge, 24" Front gauge, 1° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 3hp 220v 3ph, Shipping Dim. 104"L x 36"W
x 53"H, Shipping weight 3,700 lbs.
(PHOTO)
P.O.R. |
|
80" x 10ga Hydraulic Shear SH-8010
Model SH-8010, 80" Cutting length, Max thickness 10ga mild steel & 13ga stainless, Cutting speed 24 strokes
per min, 24" Back gauge, 24" Front gauge, 1° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 5hp 220v 3ph, Shipping Dim. 104"L x 36"W
x 53"H, Shipping weight 4,000 lbs.
(PHOTO)
P.O.R. |
|

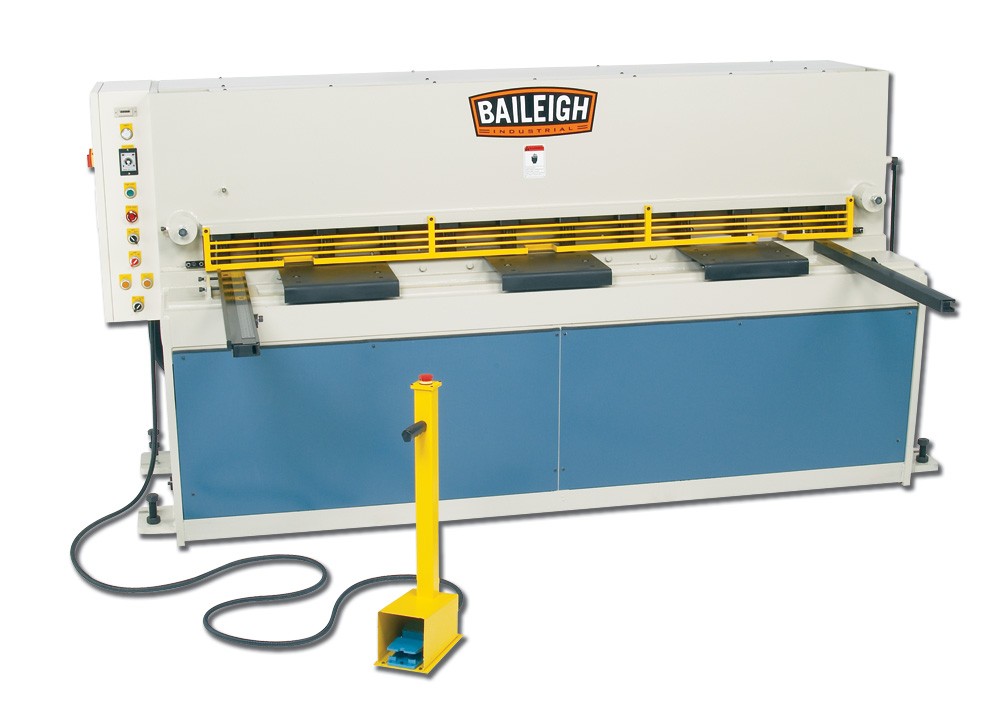

80" x 10ga Heavy Duty Hydraulic Shear SH-8010-HD
Model SH-8010-HD, 80" Cutting length, Max thickness 10ga mild steel & 13ga stainless, Cutting speed 32 to 44
strokes per min, 23.62" Back gauge, 39.37" Front gauge, 1/2° to 2° Adjustable blade angle, Control
console with jog on the upper carriage and auto mode by holding the foot pedal down, Hydraulic rake adjustment, 13
Hydraulic hold downs, Front roller tables, Shadow line lighting, 7.5hp 220v 3ph, Shipping Dim. 119"L x 48"W
x 65"H, Shipping weight 6,600 lbs.
(PHOTO)
P.O.R. |
|

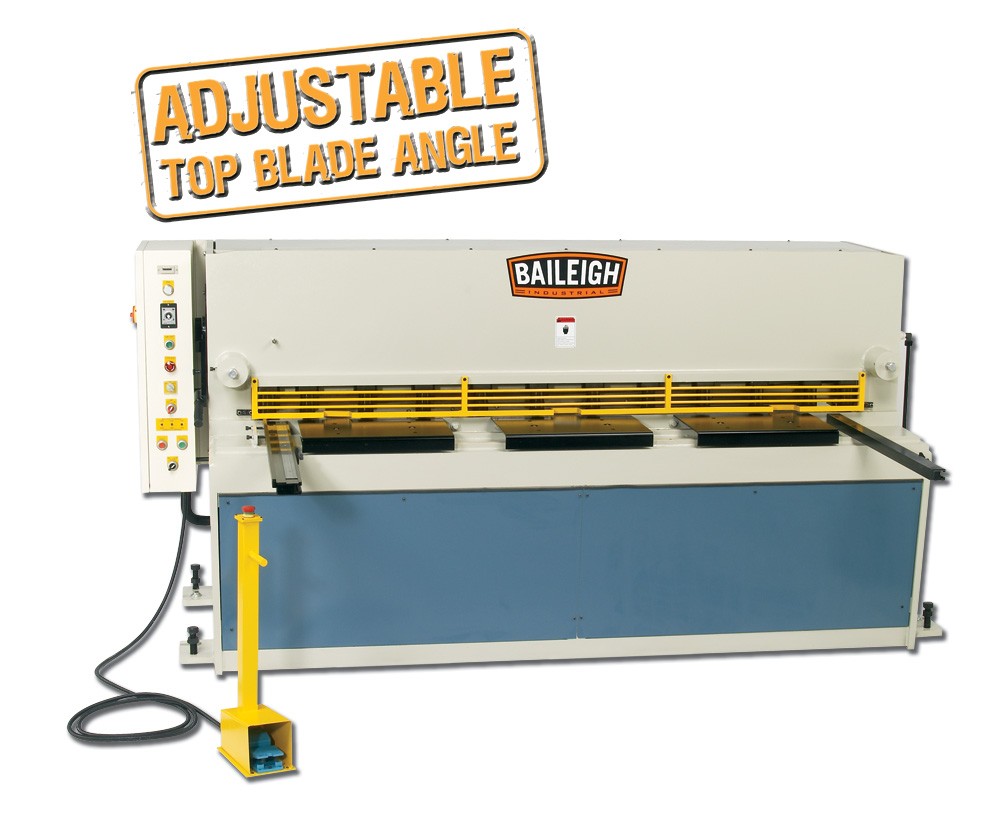

80" x 8ga Heavy Duty Hydraulic Shear SH-8008-HD
Model SH-8008-HD, 80" Cutting length, Max thickness 8ga mild steel & 12ga stainless, Cutting speed 24 to 36
strokes per min, 23.62" Back gauge, 39.37" Front gauge, 1/2° to 2° Adjustable blade angle, Control
console with jog on the upper carriage and auto mode by holding the foot pedal down, Hydraulic rake adjustment, 12
Hydraulic hold downs, Front roller tables, Shadow line lighting, 15hp 220v 3ph, Shipping Dim. 130"L x 48"W x
65"H, Shipping weight 7,260 lbs.
(PHOTO)
P.O.R. |
|

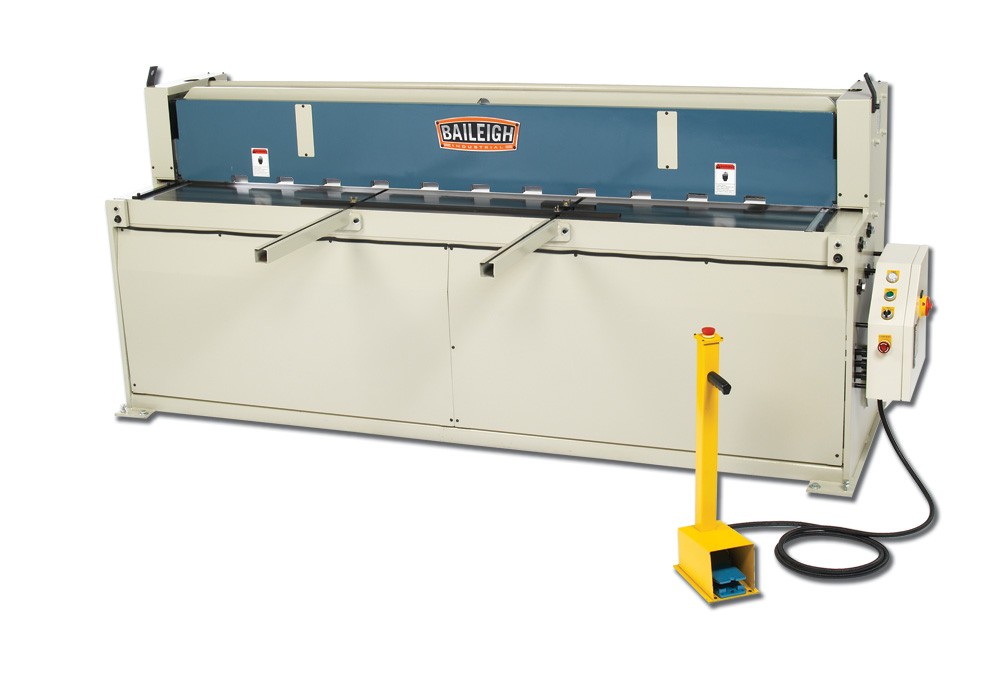

100" x 10ga Hydraulic Shear SH-10010
Model SH-10010, 120" Cutting length, Max thickness 10ga mild steel & 13ga stainless, Cutting speed 22 strokes
per min, 24" Back gauge, 24" Front gauge, 2° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 7.5hp 220v 3ph, Shipping Dim. 125"L x 45"W
x 60"H, Shipping weight 6,000 lbs.
(PHOTO)
P.O.R. |
|

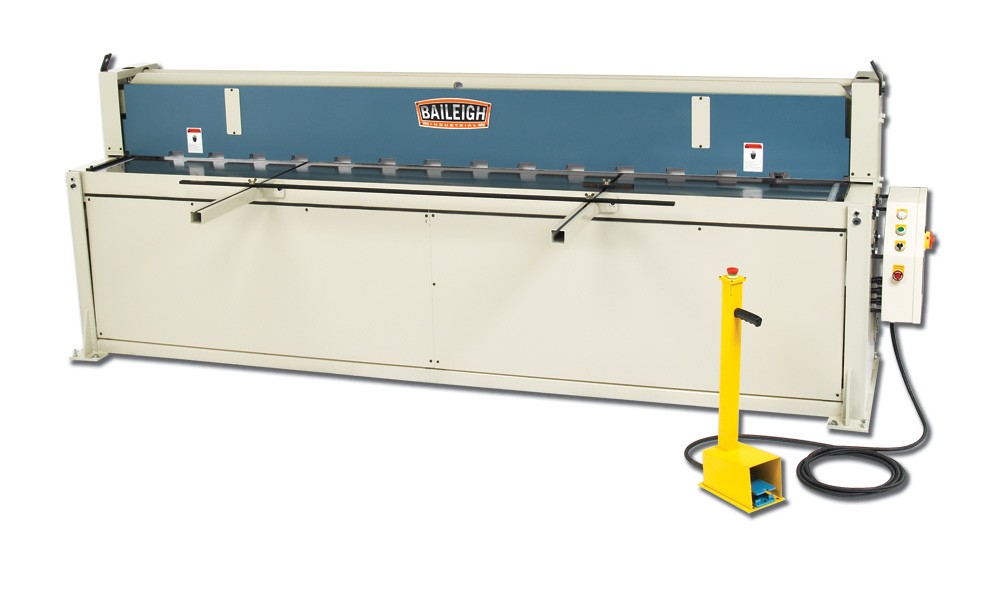

120" x 14ga Hydraulic Shear SH-12014
Model SH-12014, 120" Cutting length, Max thickness 14ga mild steel & 18ga stainless, Cutting speed 20 strokes
per min, 24" Back gauge, 24" Front gauge, 2° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 5hp 220v 3ph, Shipping Dim. 150"L x 40"W
x 56"H, Shipping weight 5,200 lbs.
(PHOTO)
P.O.R. |
|

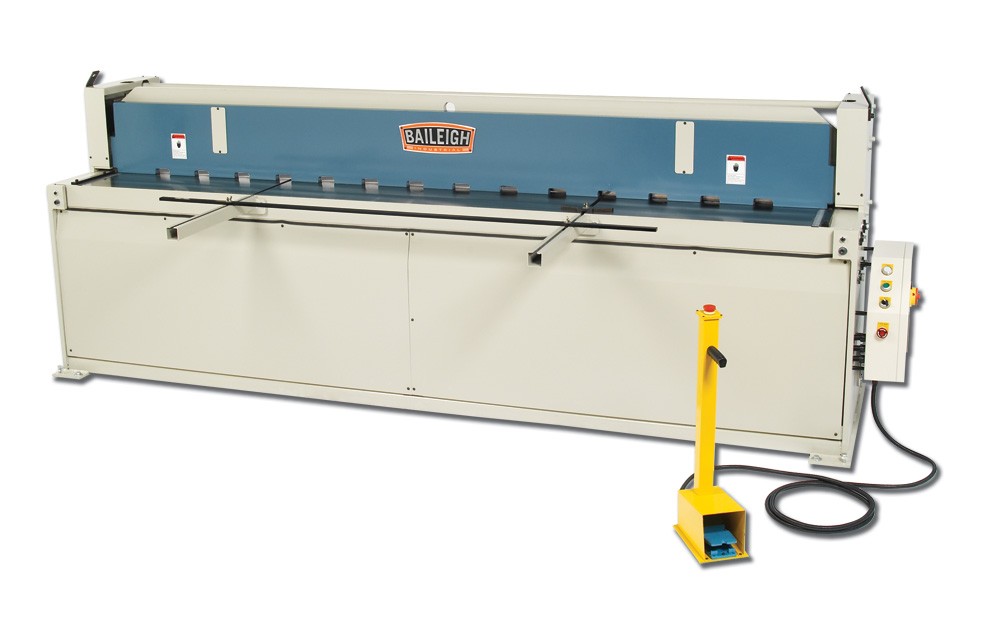

120" x 10ga Hydraulic Shear SH-12010
Model SH-12010, 120" Cutting length, Max thickness 10ga mild steel & 13ga stainless, Cutting speed 20 strokes
per min, 24" Back gauge, 24" Front gauge, 2° Blade angle, Control console with jog on the upper carriage
and auto mode by holding the foot pedal down, Hydraulic hold downs, 7.5hp 220v 3ph, Shipping Dim. 145"L x 45"W
x 60"H, Shipping weight 6,600 lbs.
(PHOTO)
P.O.R. |
|

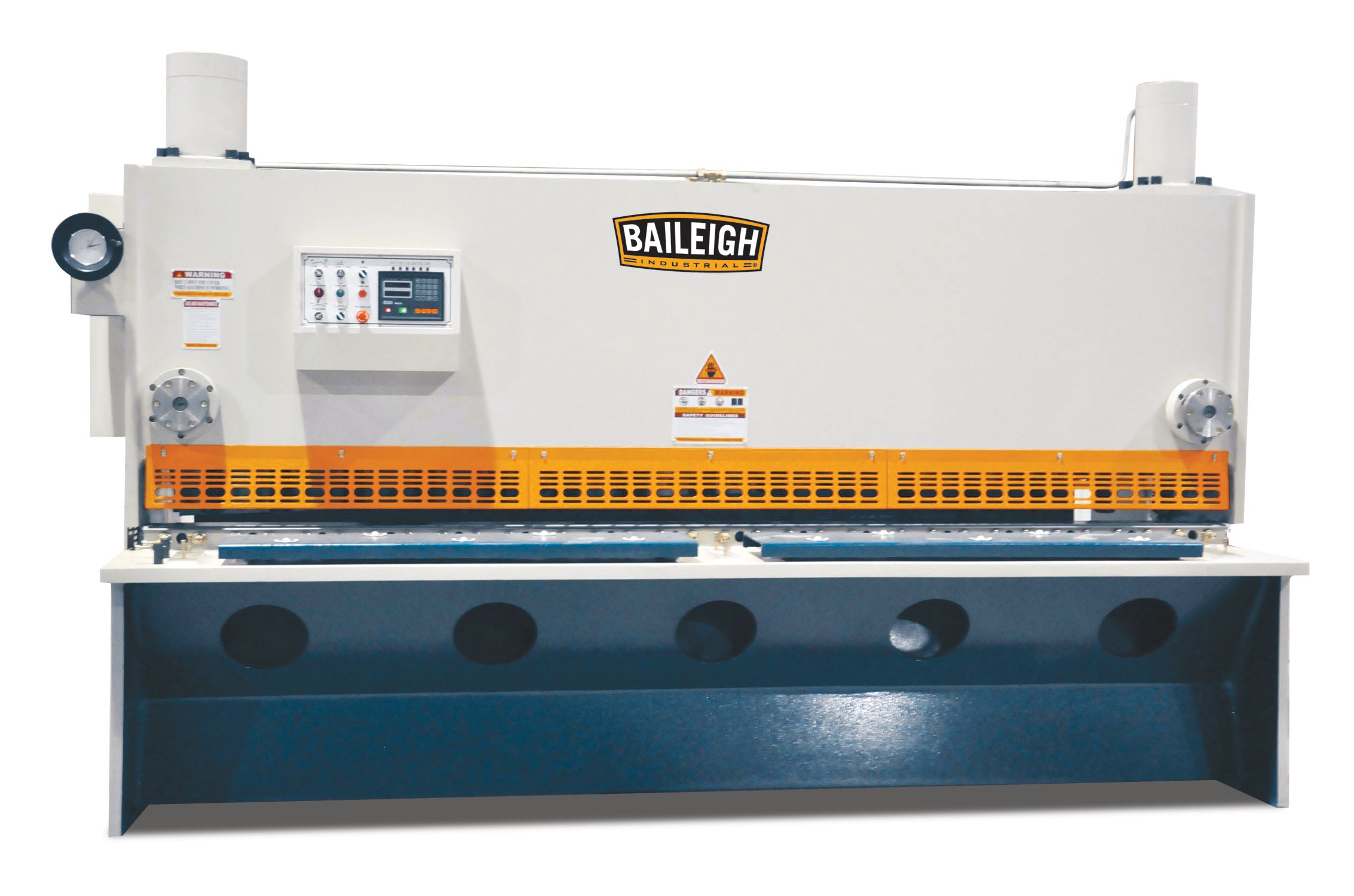

120" x 1/4" Heavy Duty Hydraulic Shear SH-120250-HD
Model SH-120250-HD, 120" Cutting length, Max thickness .250" mild steel & .157" stainless, Cutting
speed 20 strokes per min, 25.6" Motorized back gauge, .5° to 1.5° Blade angle, NC Controller for programming
the back gauge can hold up to 100 programs, Front roller tables, Hydraulic hold downs, Shadow line lighting, 15hp 220v 3ph,
Shipping Dim. 154"L x 64"W x 77"H, Shipping weight 14,560 lbs.
(PHOTO)
P.O.R. |
|

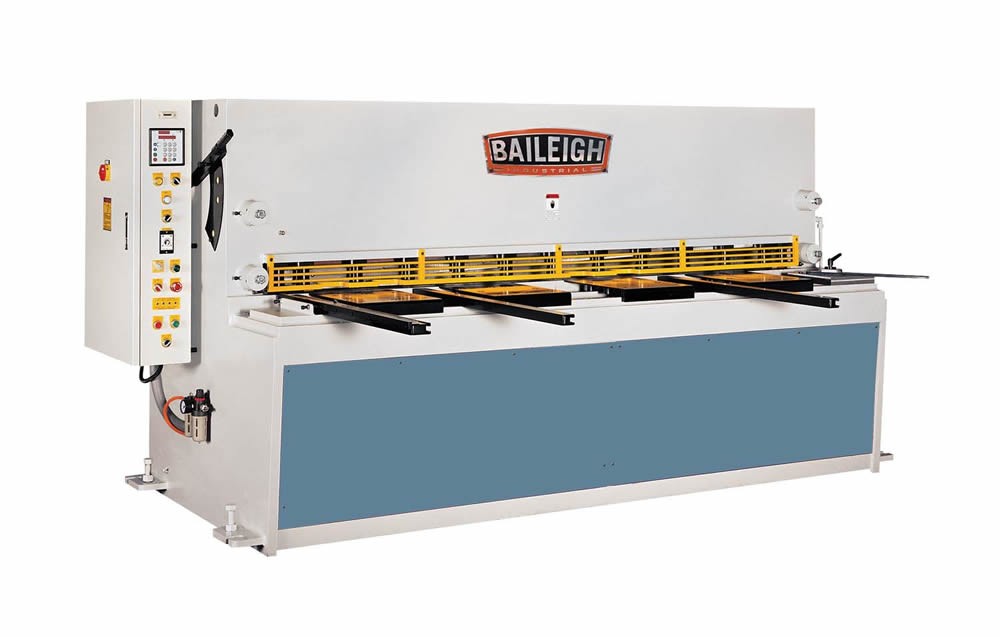

120" x 1/4" Heavy Duty Hydraulic Shear SH-12003-HD
Model SH-12003-HD, 120" Cutting length, Max thickness 1/4" mild steel & 7ga stainless, Cutting speed 20 to 30
strokes per min, 31.5" Motorized back gauge, 39.37" Front gauge, .5° to 2° Adjustable blade angle, NC
Controller for programming the back gauge can hold up to 100 programs, Front roller tables, Hydraulic hold downs, Shadow
line lighting, 20hp 220v 3ph, Shipping Dim. 158"L x 70"W x 85"H, Shipping weight 15,400 lbs.
(PHOTO)
P.O.R. |
|

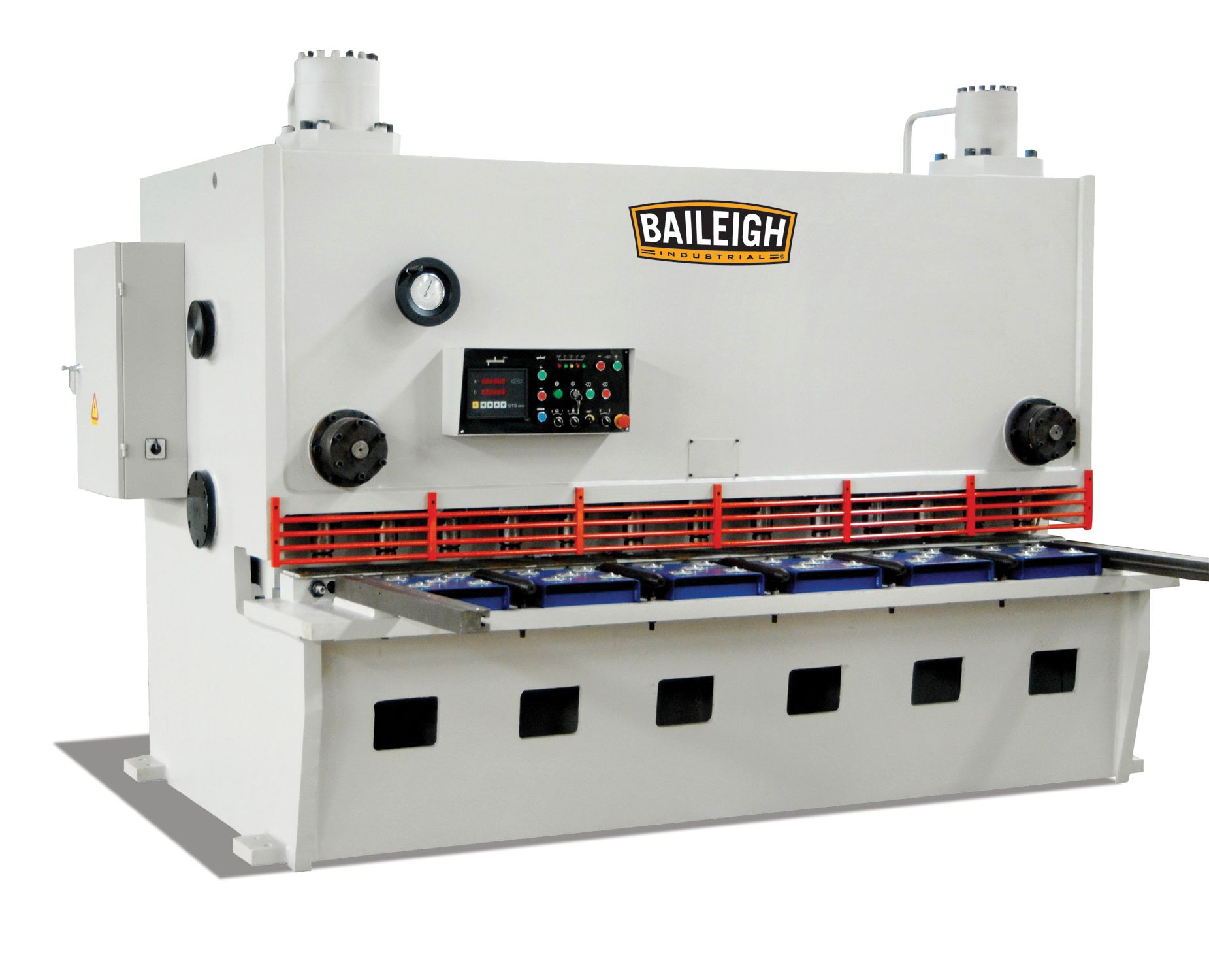

120" x 3/8" Heavy Duty Hydraulic Shear SH-120375-HD
Model SH-120375-HD, 120" Cutting length, Max thickness .375" mild steel & .250" stainless, Cutting speed
15 strokes per min, 25.6" Motorized back gauge, .5° to 1.5° Blade angle, NC Controller for programming the back
gauge can hold up to 100 programs, Front roller tables, Hydraulic hold downs, Shadow line lighting, 15hp 220v 3ph, Shipping
Dim. 156"L x 70"W x 77"H, Shipping weight 14,560 lbs.
(PHOTO)
P.O.R. |
|

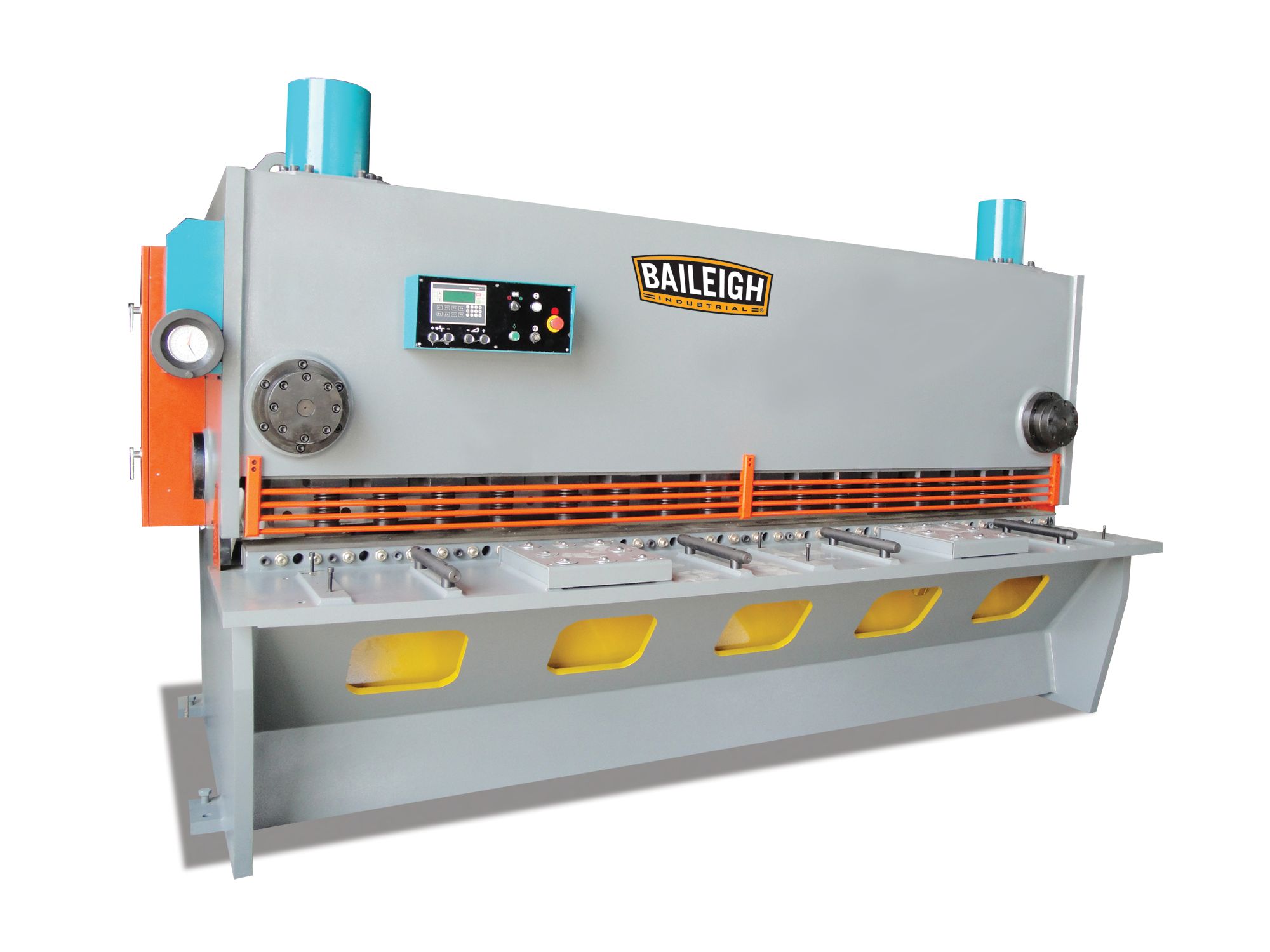

120" x 1/2" Heavy Duty Hydraulic Shear SH-120500-HD
Model SH-120500-HD, 120" Cutting length, Max thickness 1/2" mild steel & .375" stainless, Cutting speed
9 strokes per min, 31.5" Motorized back gauge, .5° to 2° Blade angle, E20 NC Controller for programming the back
gauge can hold up to 100 programs, Front roller tables, Hydraulic hold downs, Shadow line lighting, 30hp 220v 3ph, Shipping
Dim. 156"L x 81"W x 101"H, Shipping weight 22,000 lbs.
(PHOTO)
P.O.R. |
|
