Baileigh Bevellers |
|

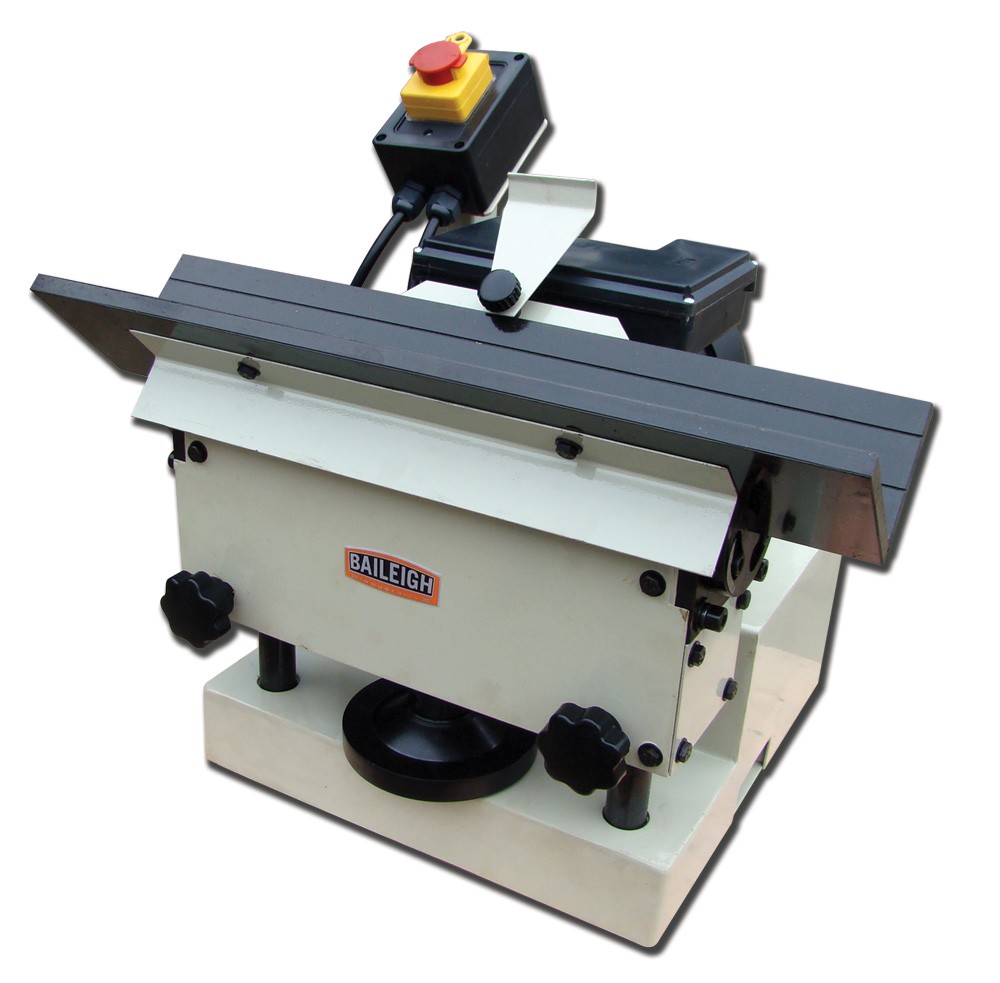

Bench Top Beveling Machine CM-6
Model CM-6, Chamfer size 0 to .236", Chamfer angle 15° to 45°, 1.5hp 110v 1ph, Shipping Dim. 16"L
x 20"W x 20"H, Shipping weight 180 lbs.
(PHOTO)
P.O.R. |
|

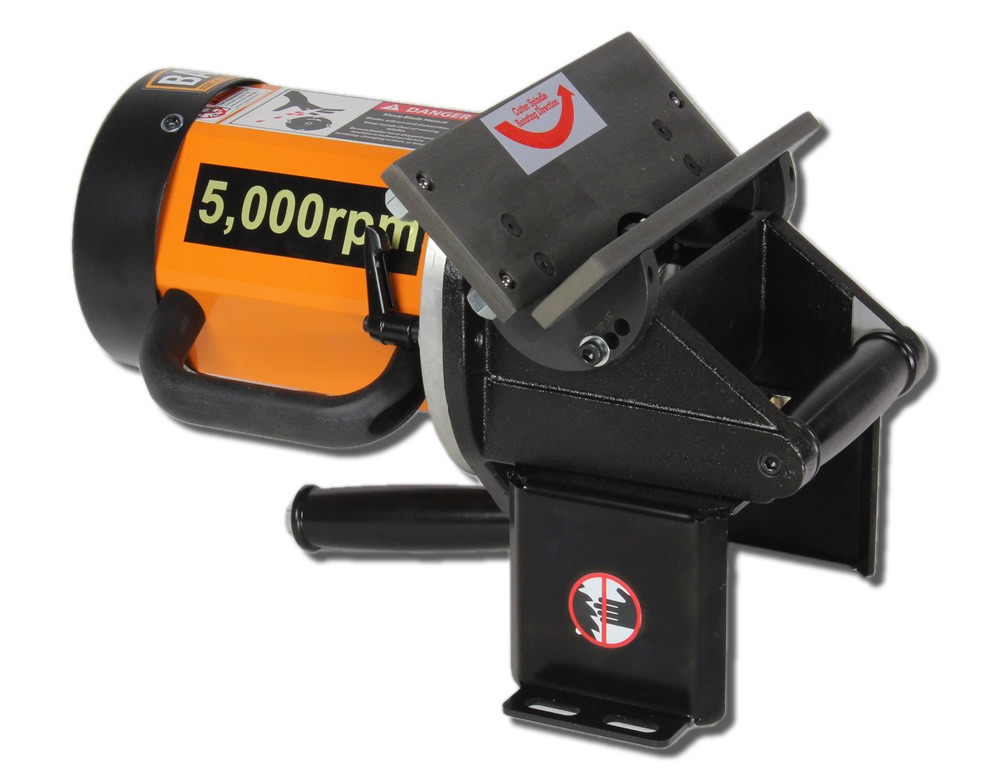

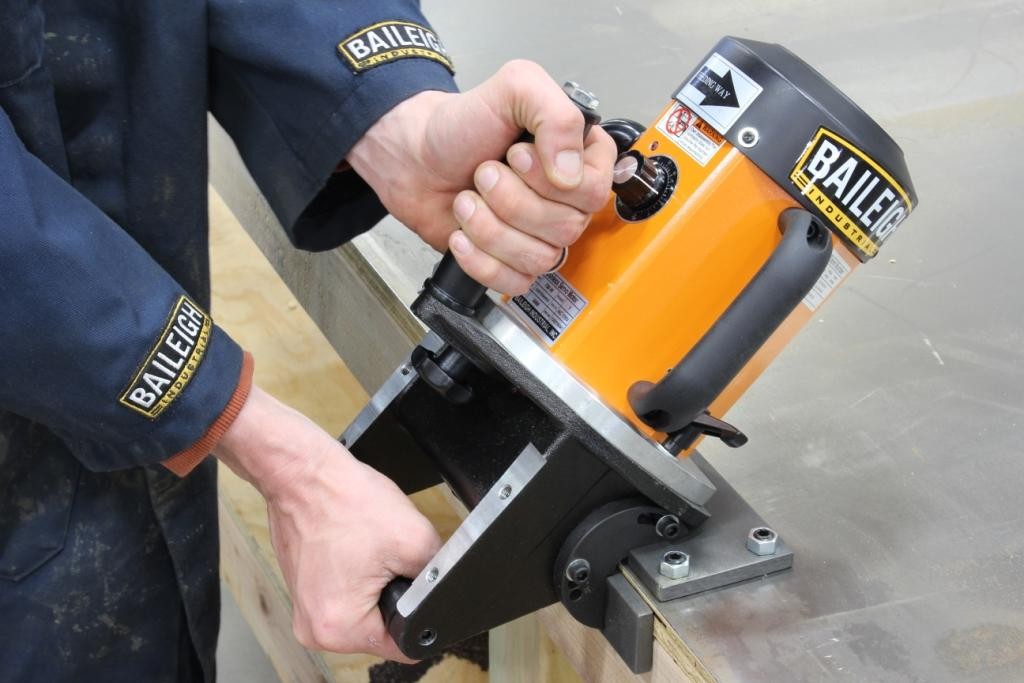

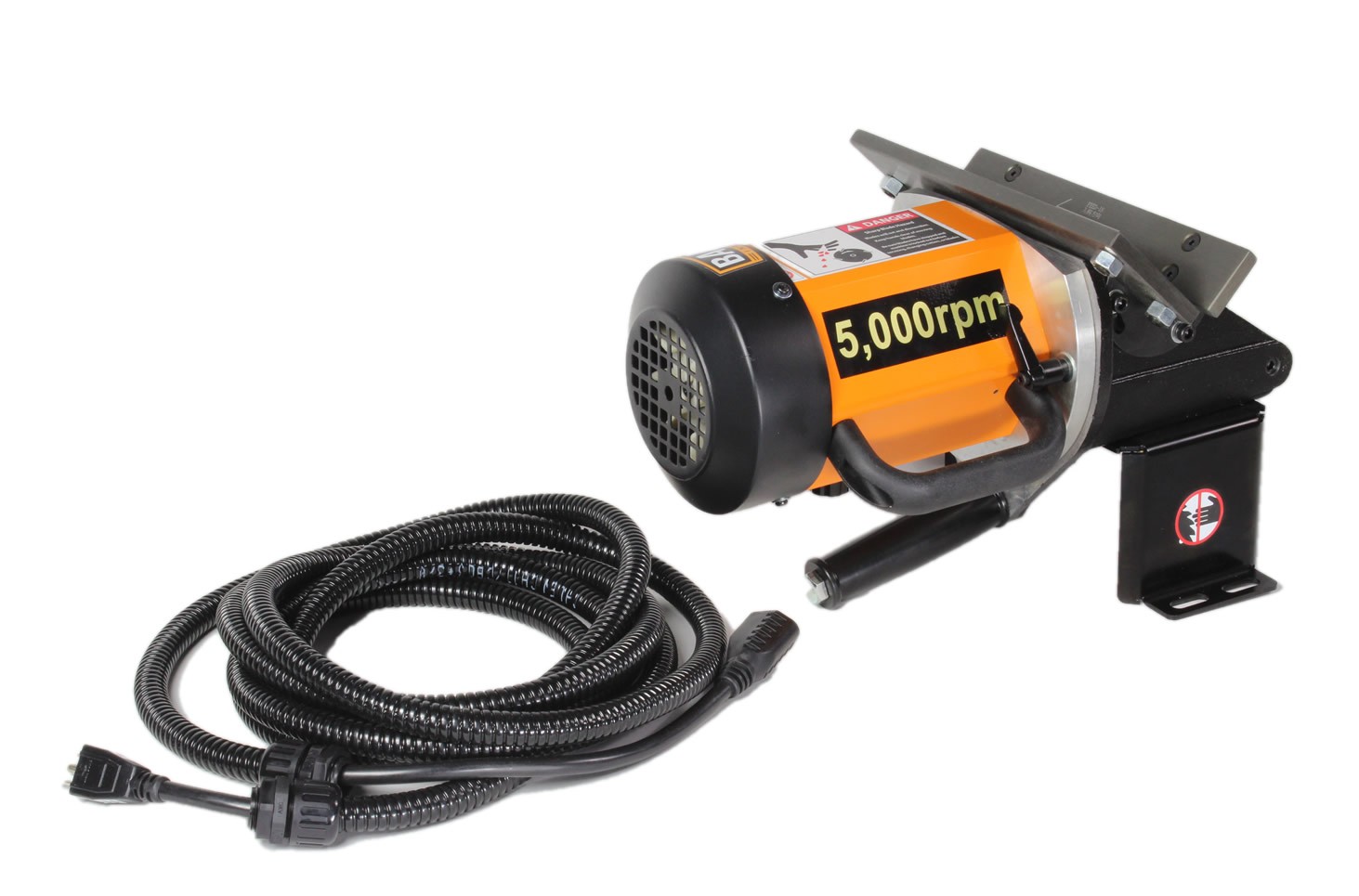

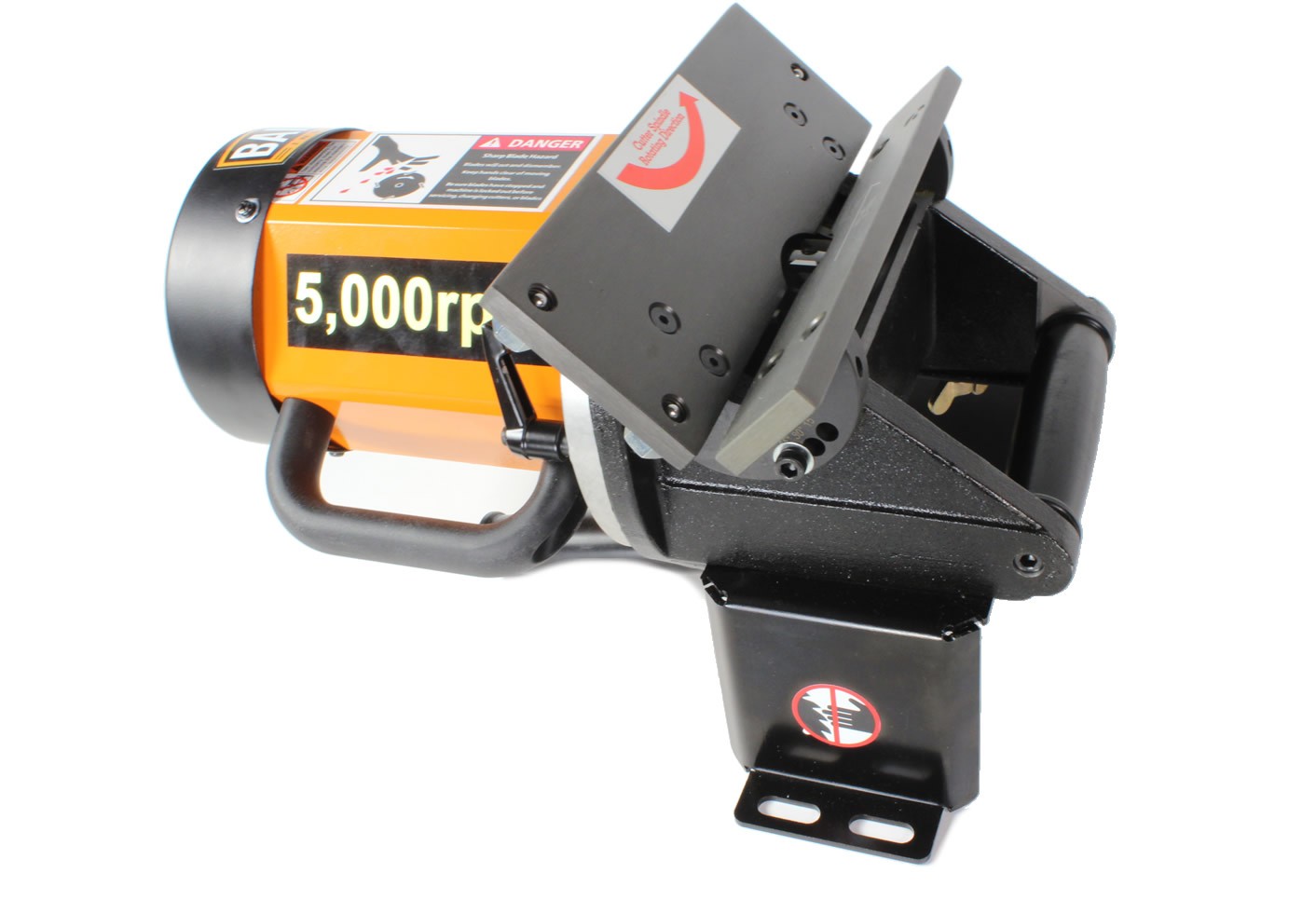

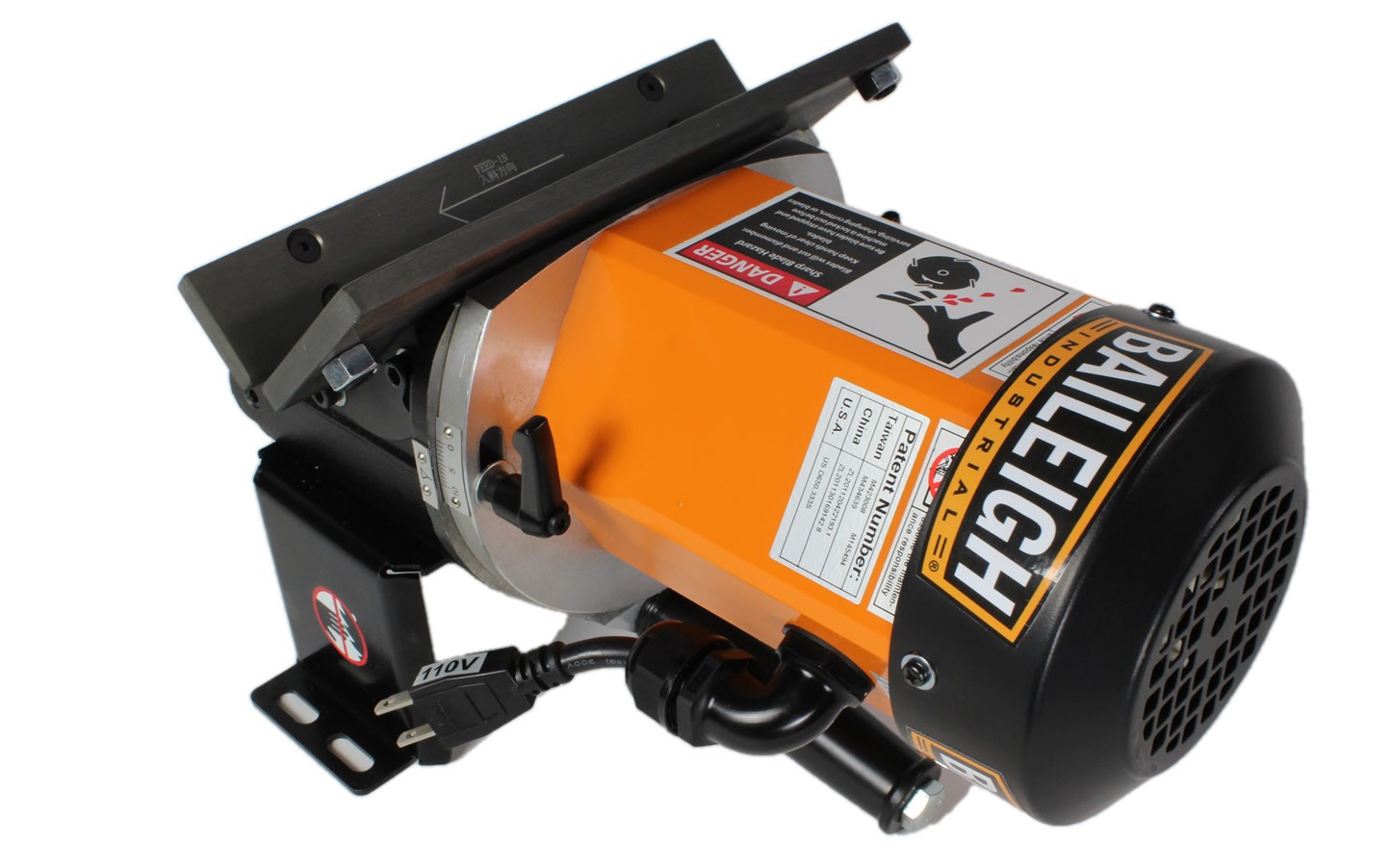

Portable Beveling Machine CM-10P
Model CM-10P, Chamfer size 1/4" front & 3/8" side, 3 Set positions 15°/30°/45°, 9"L

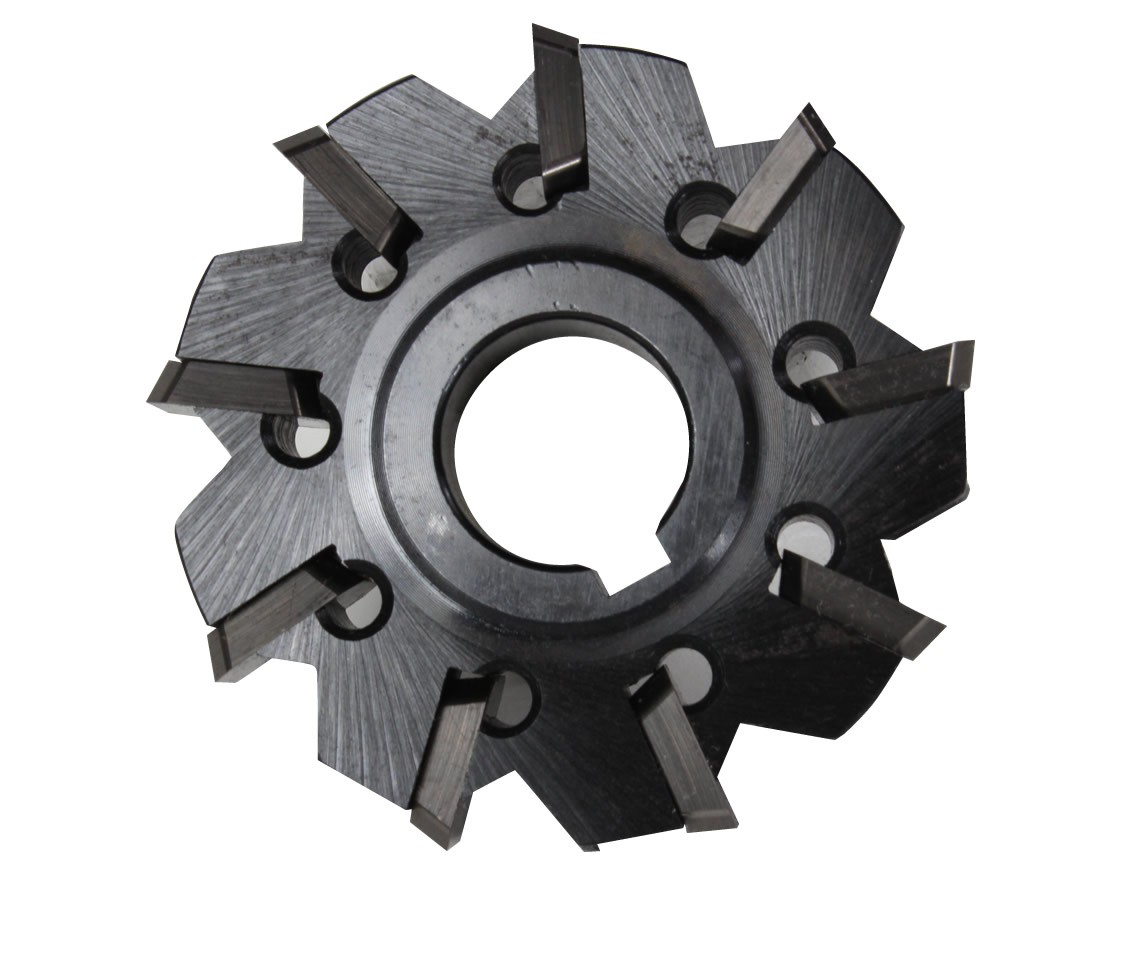

Guide plates with 3 roller balls, 9 Blade cutting wheel, Mount included, 1hp 110v 1ph, Shipping Dim. 20"L x
12"W x 12"H, Shipping weight 22 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
P.O.R. |
|

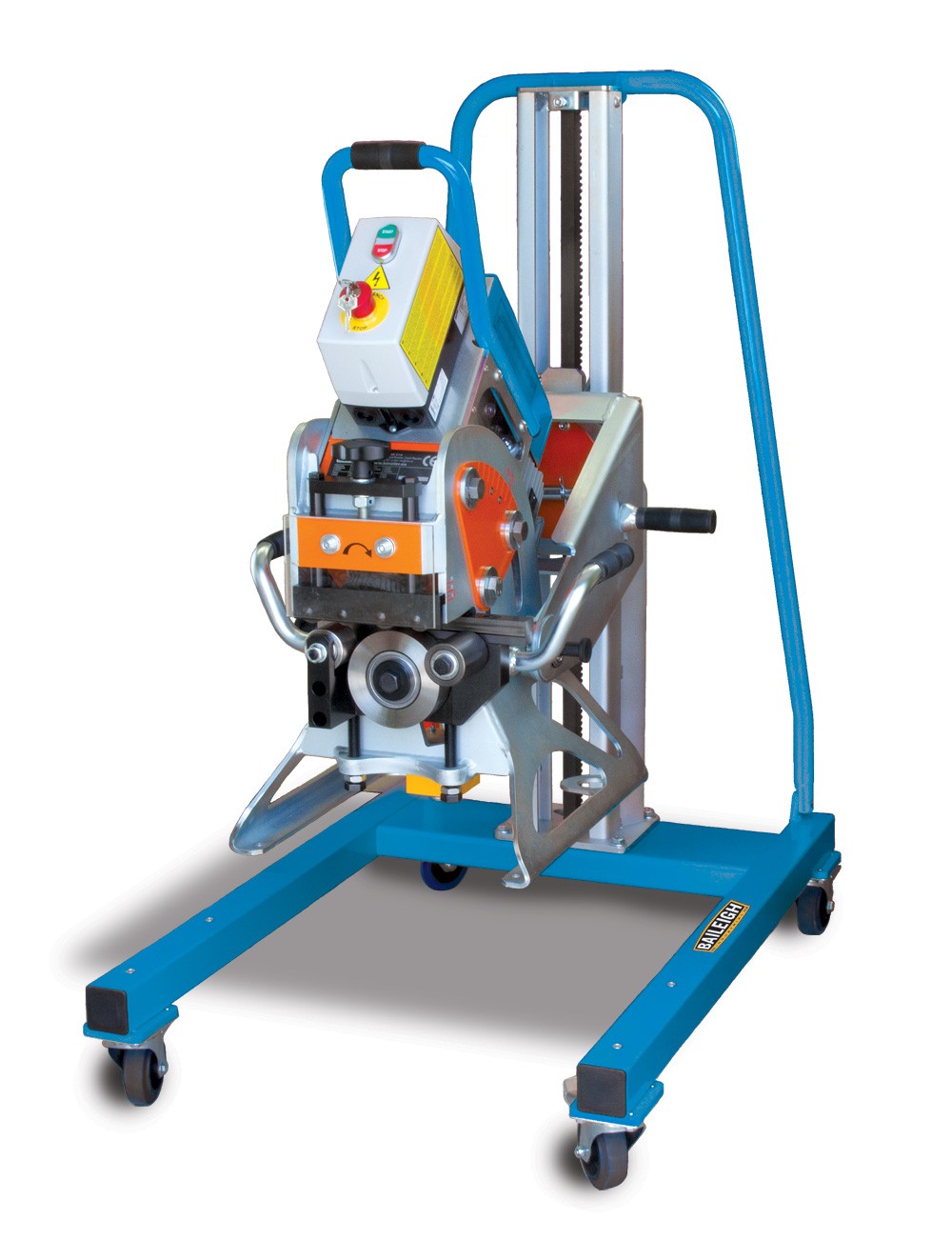

Plate Beveler CM-15DS
Model CM-15DS, Max bevel width .59", Bevel angle 15° to 50° variable, Material thickness .236" to
1.57", Blade speed 2,800 rpm, 2hp, Shipping Dim. 27"L x 19"W x 40"H, Shipping weight 261 lbs.
(PHOTO)
P.O.R. |
|

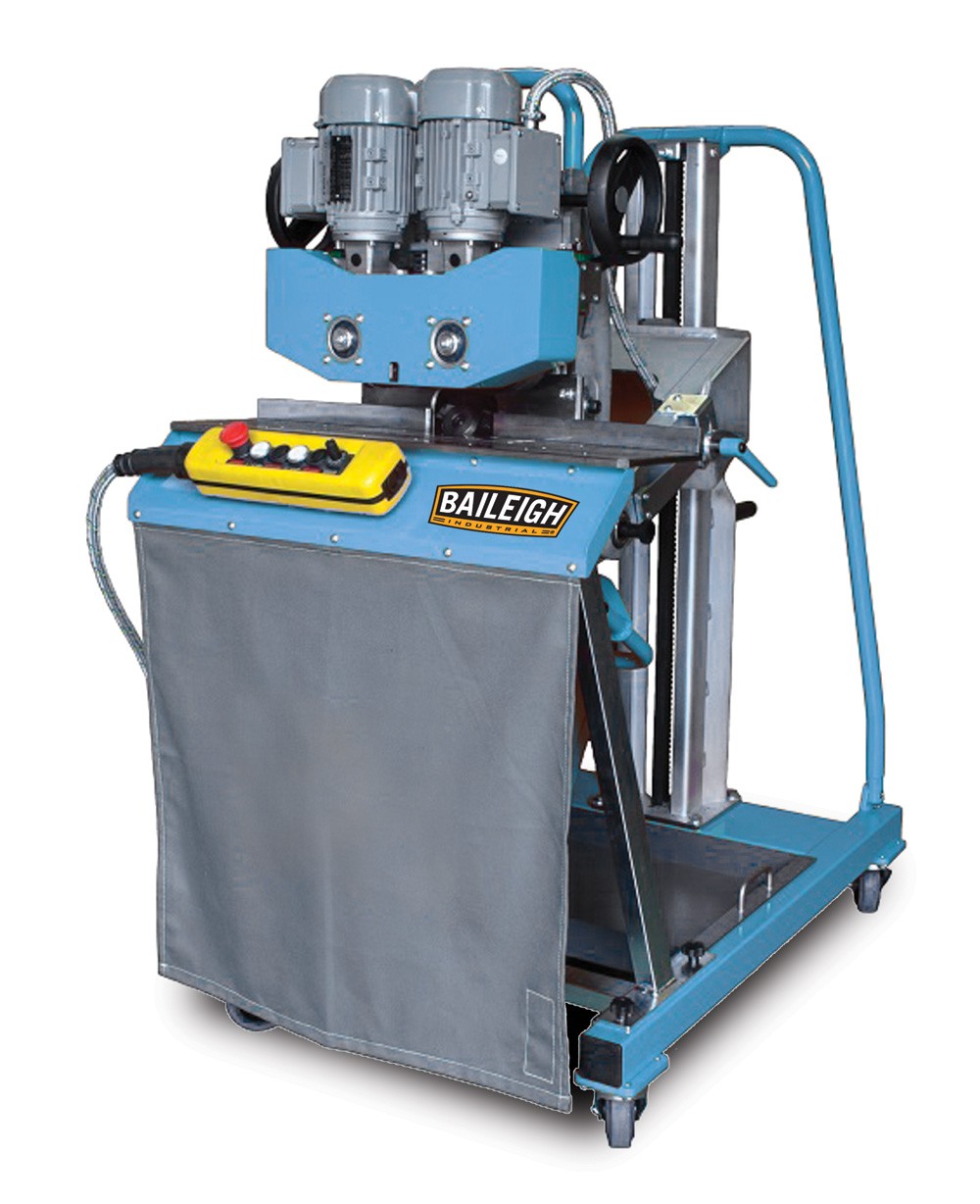

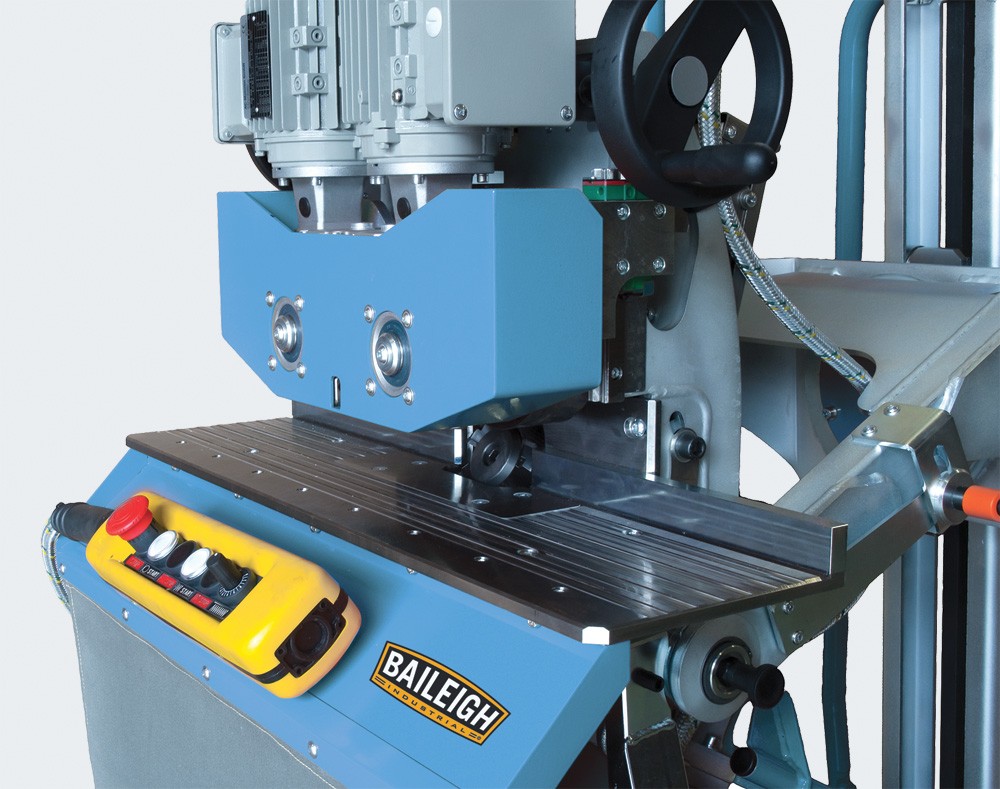

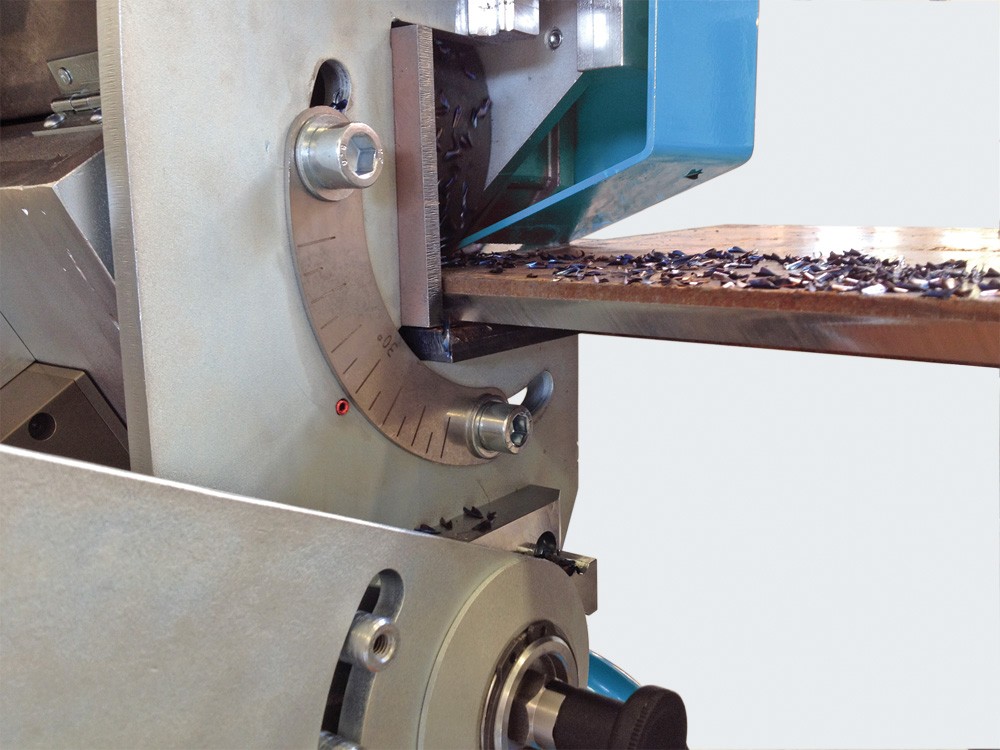

Double Sided Beveling Machine CM-50DS
Model CM-50DS, Chamfer size 0 to .236", Chamfer angle 15° to 45°, Max bevel width 2.44", Bevel angle 15°
to 60° variable, Material thickness .275" to 2.75", Min. material Dim. 7.8" x 3.93" x 2.75",
Max Material thickness unlimited, Cutting speed from 0 to 3.9 ft./min, Milling head 3.34" with 5 inserts, Cutting
motor 5.25hp, Feeding motor 1/8hp, Shipping Dim. 49"L x 33"W x 62"H, Shipping weight 640 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
P.O.R. |
|
Baileigh Plasma Systems |
|

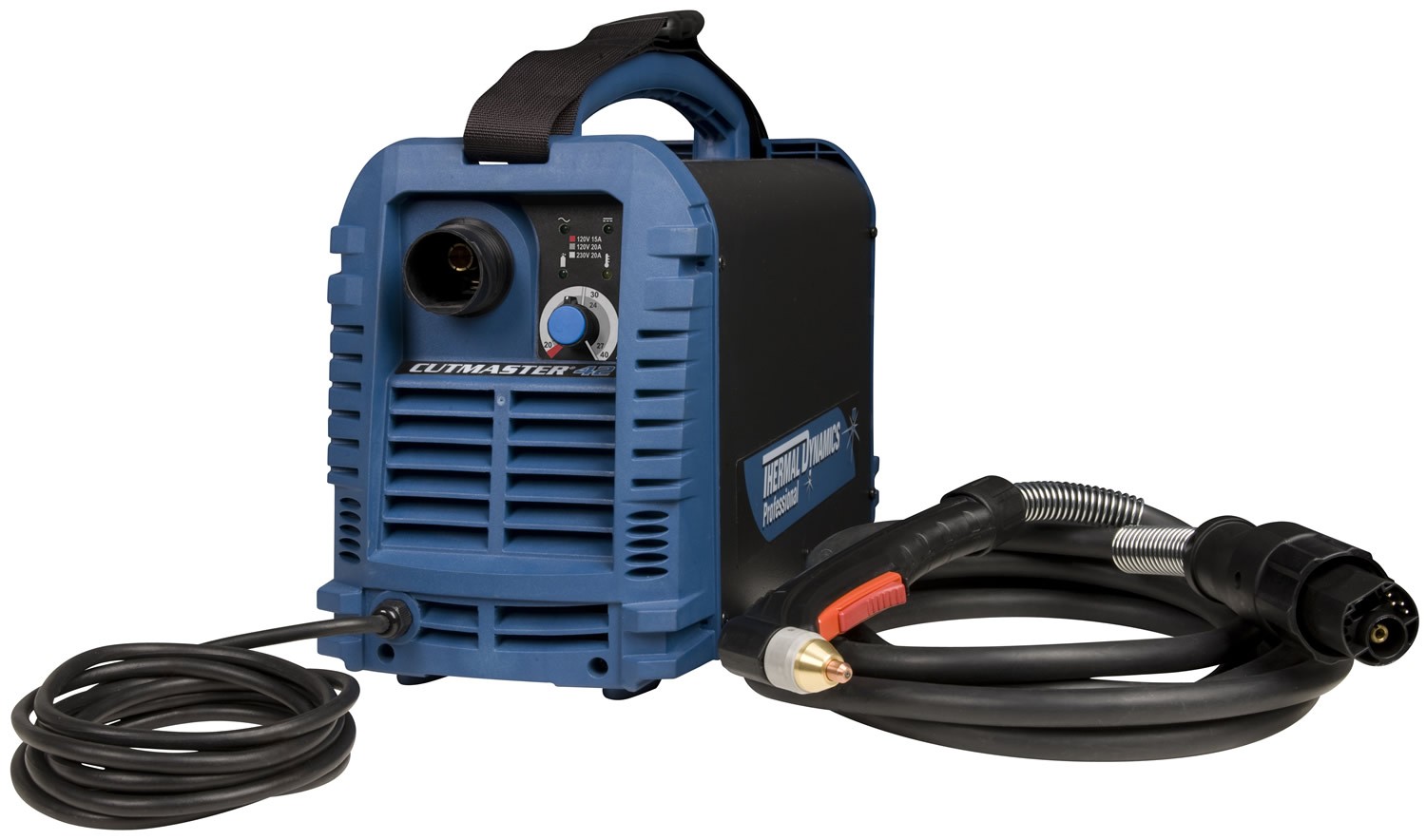

PT-Cutmaster 42M
Model 42M, 1/4" Cutting capacity, 5/8" Max cut, Quick disconnect torch and lead extension, Features 2 power
plug adaptors 120v & 230v, All new SL40 torch with 15' leads, Comes with safety gloves & glasses, Instructional
plasma cutting DVD, Extra spare parts & heavy duty carrying case, Shipping weight 26 lbs.
(PHOTO)
P.O.R. |
|
PT-Cutmaster 52M
Model 52M, 1/2" Cutting capacity, 1-1/8" Max cut, Quick disconnect torch and lead, Flexible patented 1Torch
with up to 100' lead extensions, Rugged roll bar for added durability, Comes with power supply, Input power cable,
1Torch with ATC quick disconnect and lead, Spare parts kit, Work cable & clamp, Multi voltage
(PHOTO)
P.O.R. |
|

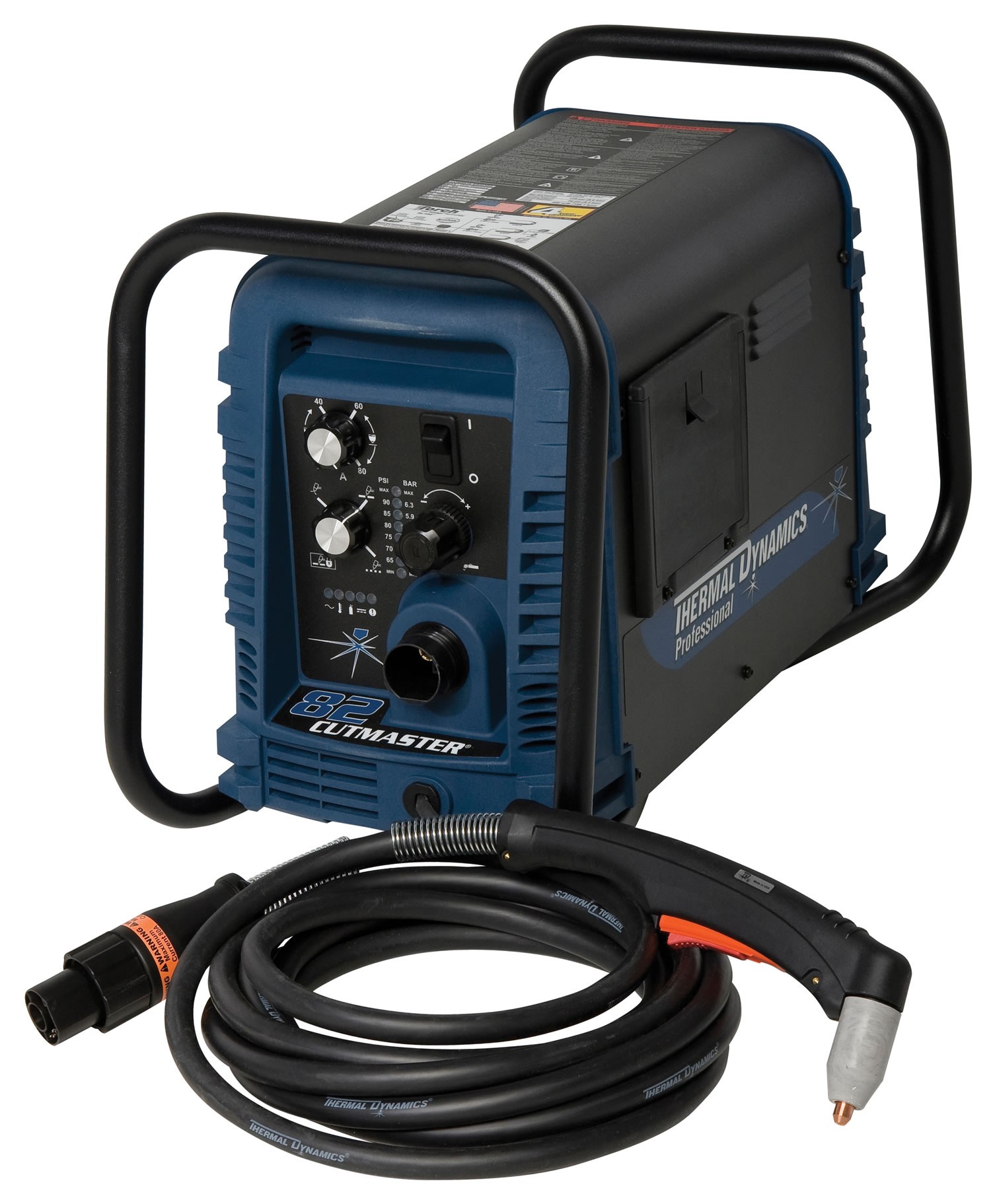

PT-Cutmaster 82M
Model 82M, 3/4" Cutting capacity, 1-1/2" Max cut, Flexible patented 1Torch, Multiple torch capability (hand,
mechanized, automation), True Guard roll bar for added durability, Color coded LEDs indicate pressure status and
setup errors, Trigger latch feature, Auto pilot restart feature, Comes with power supply, 20' lead, 10' Input power
cable, Spare parts kit, Work cable & clamp, Universal selectable input power from 208 to 460 VAC + 10% single
or three phase 50 or 60hz
(PHOTO)
P.O.R. |
|

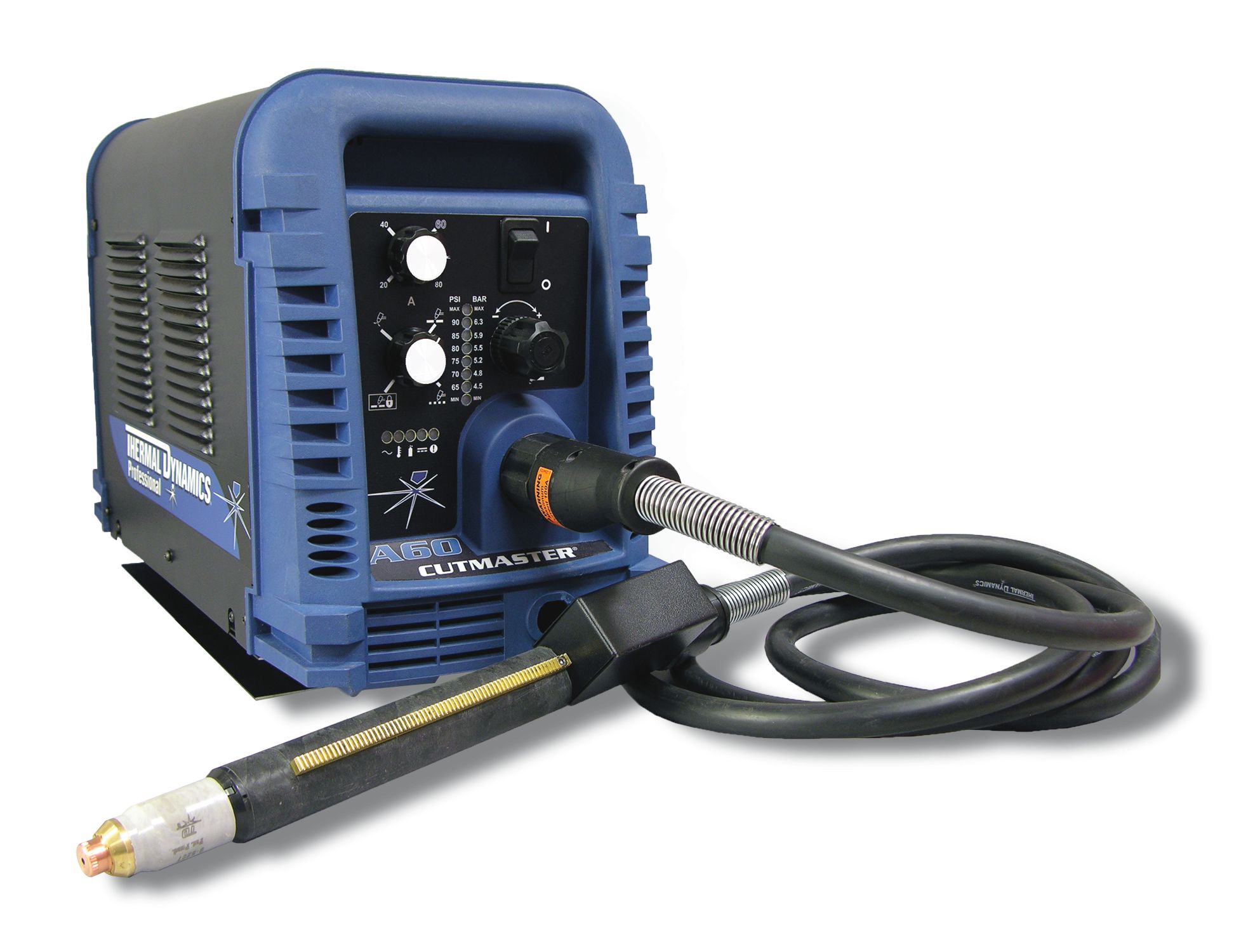

Automatic PT-Cutmaster A-60
Model A-60, 3/8" Production cut, 1" Max edge start cut, 25' Cable, 80% duty cycle, 220v 1ph
(PHOTO)
P.O.R. |
|

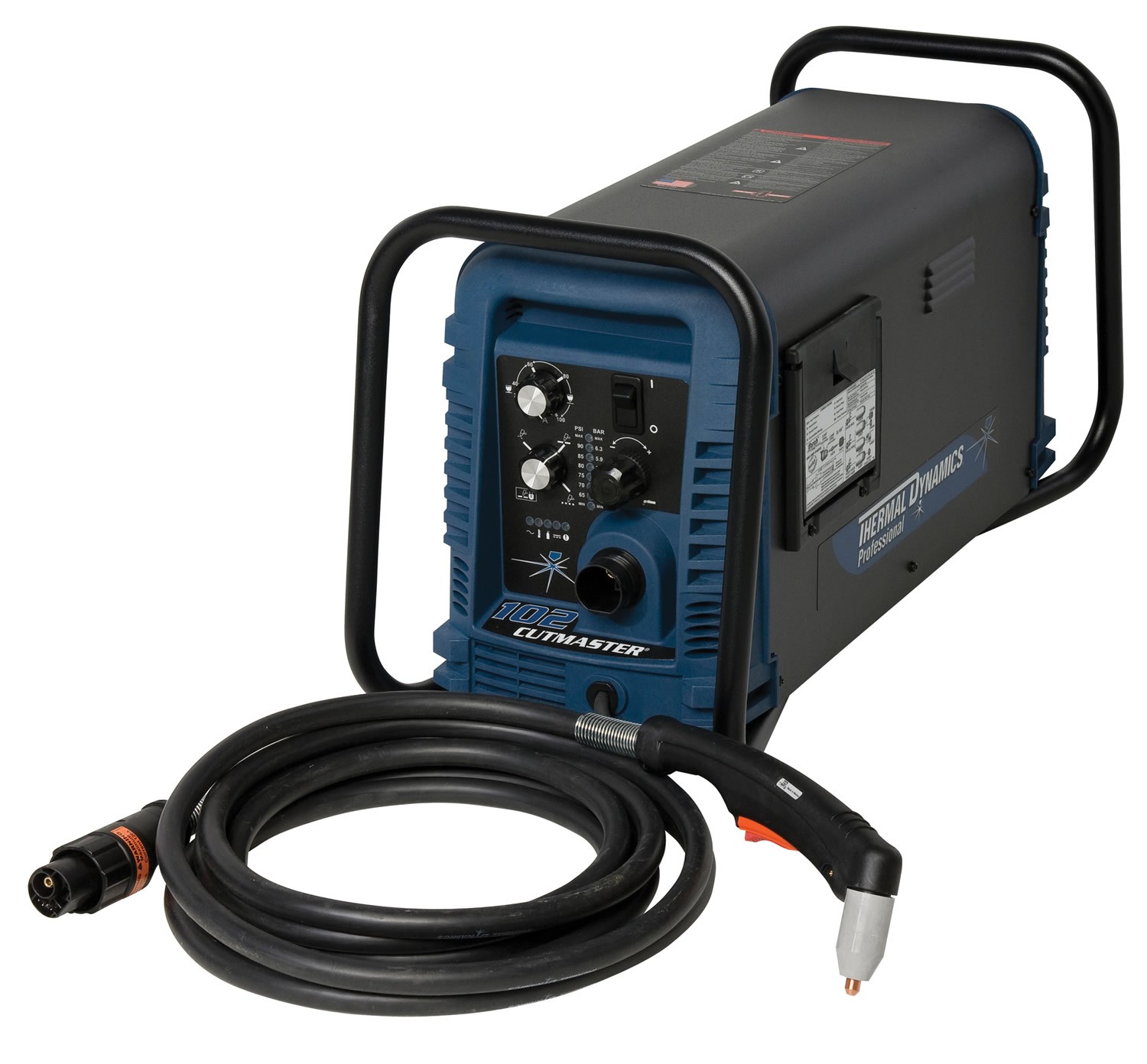

PT-Cutmaster 102M
Model 102M, 1" Cutting capacity, 1-3/4" Max cut, Flexible patented 1Torch, Multiple torch capability (hand, mechanized,
automation), Multiple voltage selection, True Guard roll bar for added durability, Comes with power supply, 1Torch with
ATC quick disconnect and lead, Input power cable, Spare parts kit, Work cable & clamp
(PHOTO)
P.O.R. |
|
Automatic PT-Cutmaster A-80
Model A-80, 1/2" Production cut, 1-1/4" Max edge start cut, 25' Cable, 80% duty cycle,
100A Max output, 220v 1ph
(PHOTO)
P.O.R. |
|

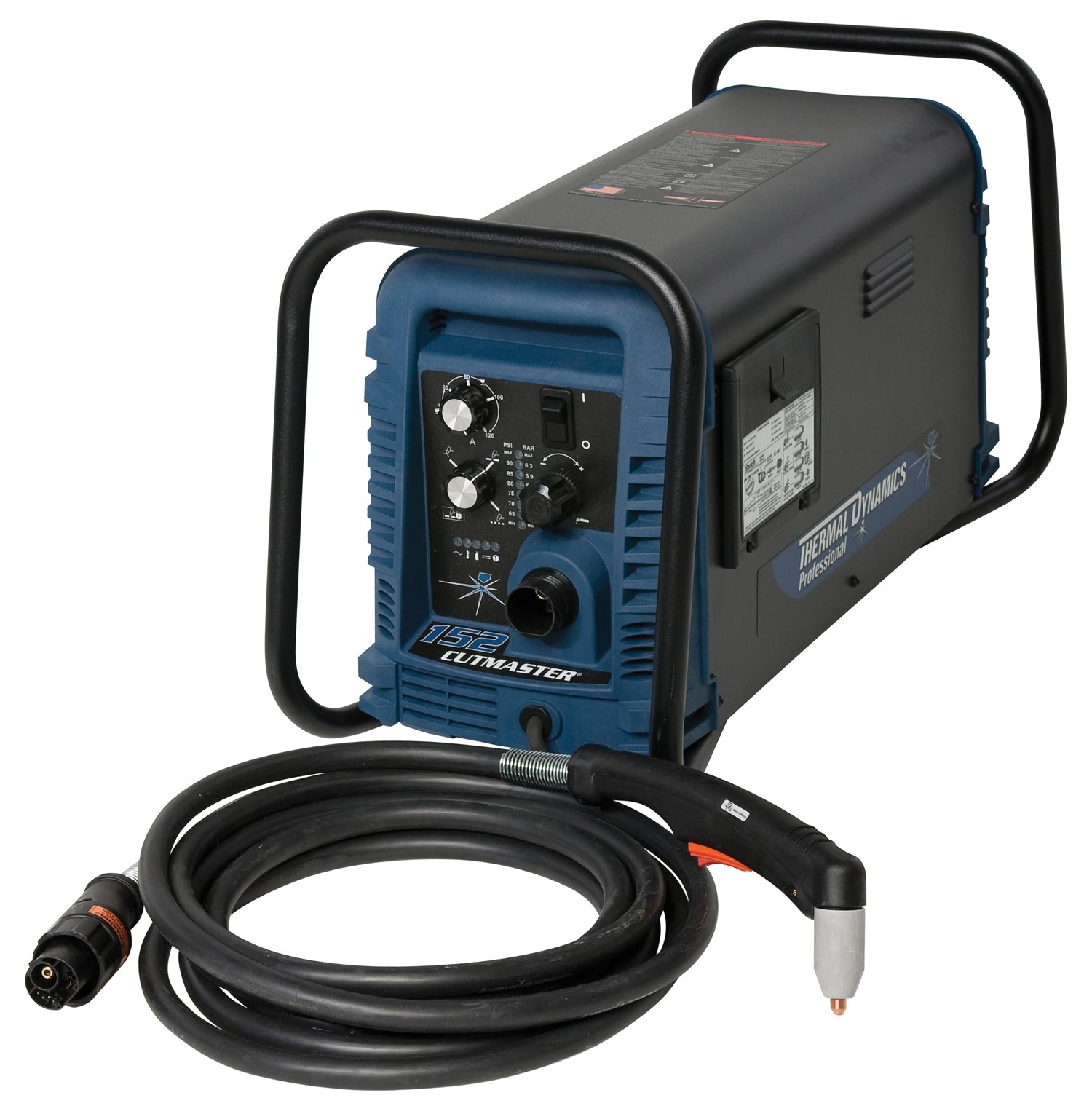

PT-Cutmaster 152M
Model 152M, 1-1/4" Cutting capacity, 2" Max cut, Flexible patented 1Torch, Multiple torch capability (hand, mechanized,
automation), Multiple voltage selection, True Guard roll bar for added durability, Comes with power supply, 1Torch with
ATC quick disconnect and lead, Input power cable, Spare parts kit, Work cable & clamp
(PHOTO)
P.O.R. |
|

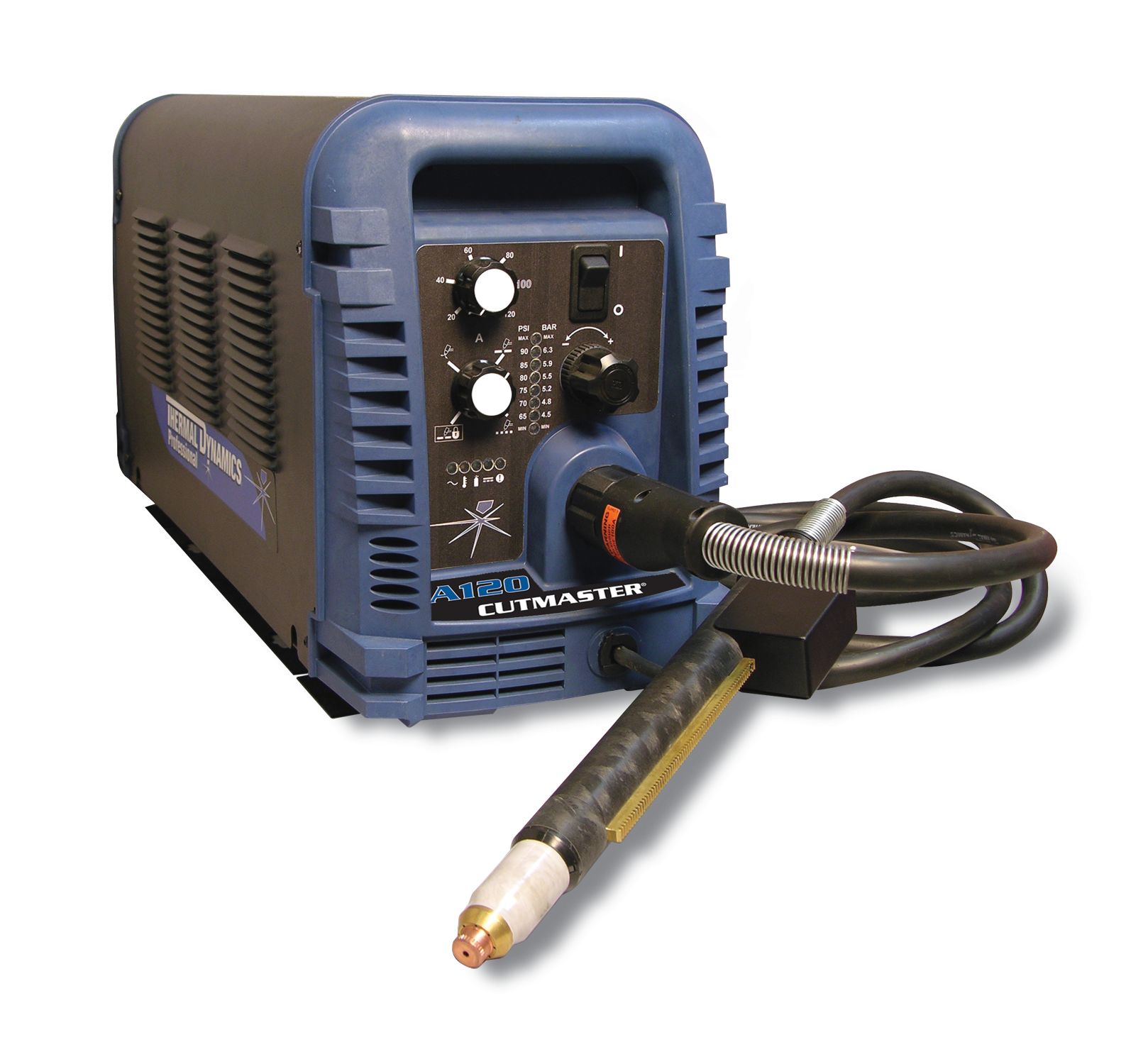

Automatic PT-Cutmaster A-120
Model A-120, 5/8" Production cut, 1-1/2" Max edge start cut, 25' Cable, 80% duty cycle,
120A Max output, 220v 1ph
(PHOTO)
P.O.R. |
|
Baileigh Plasma Tables |
|

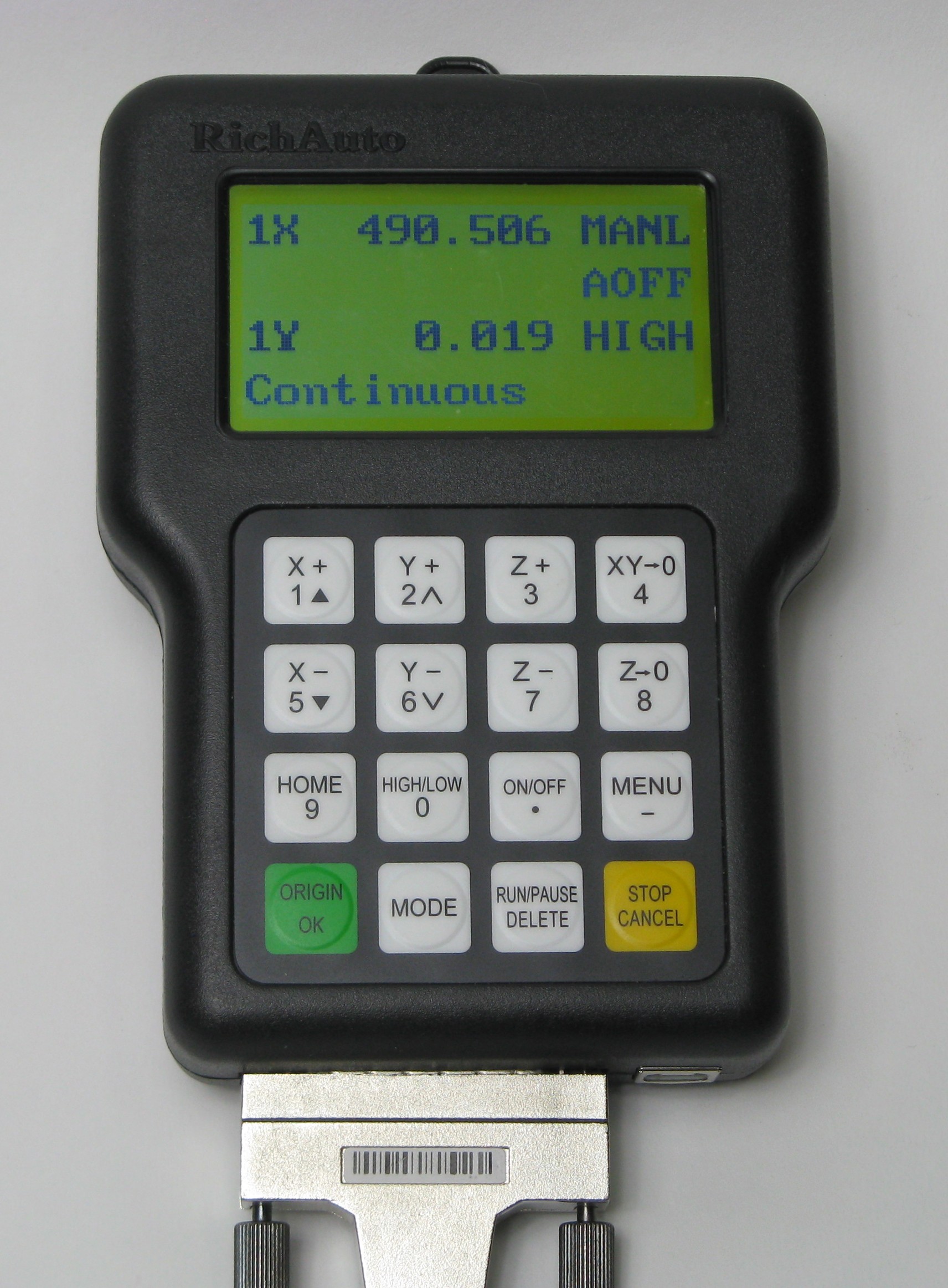

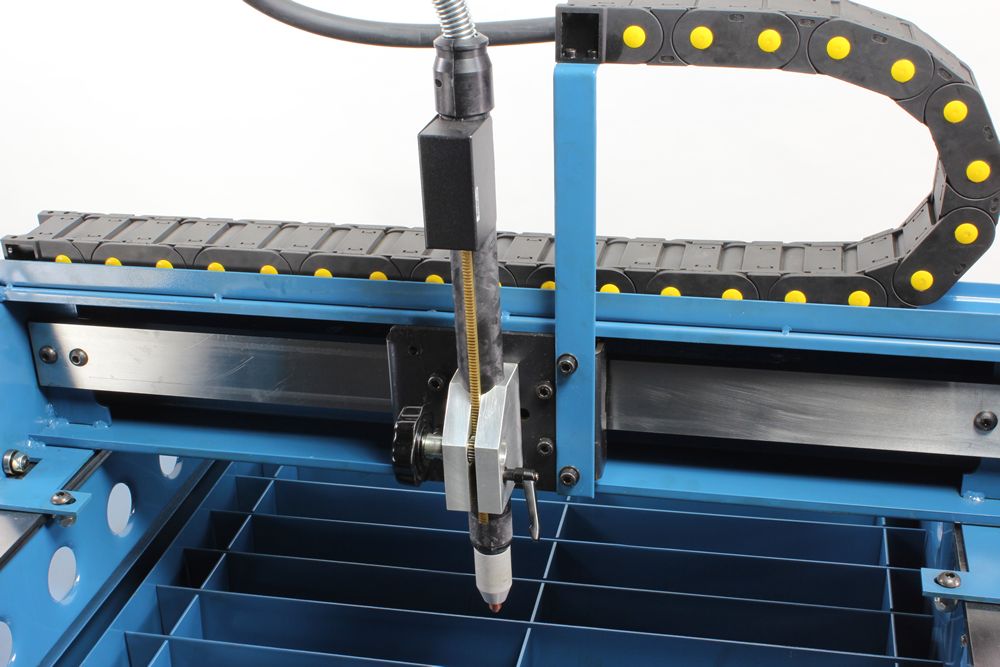

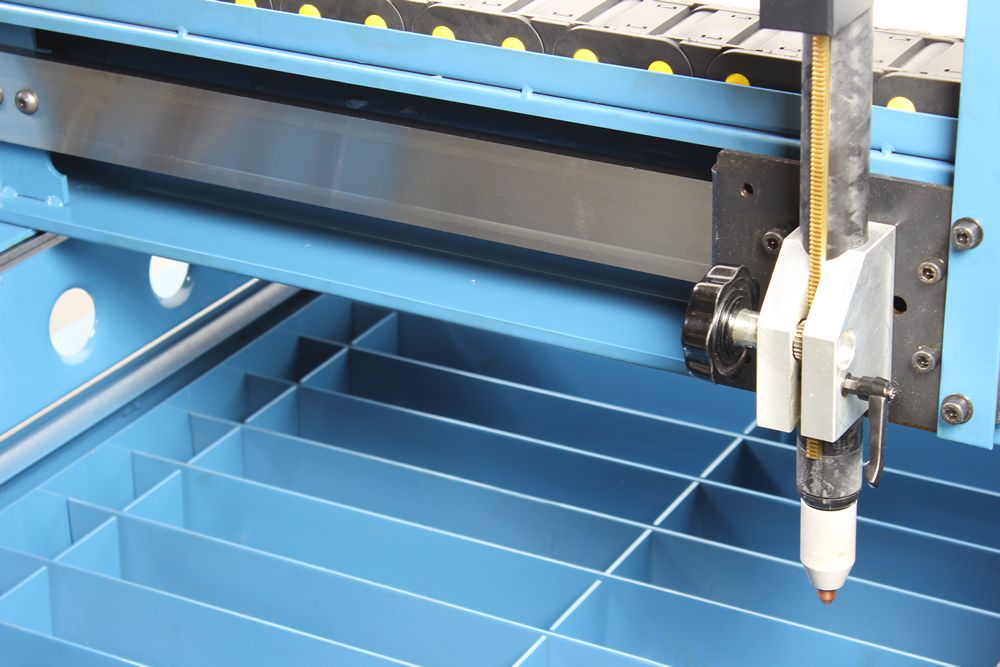

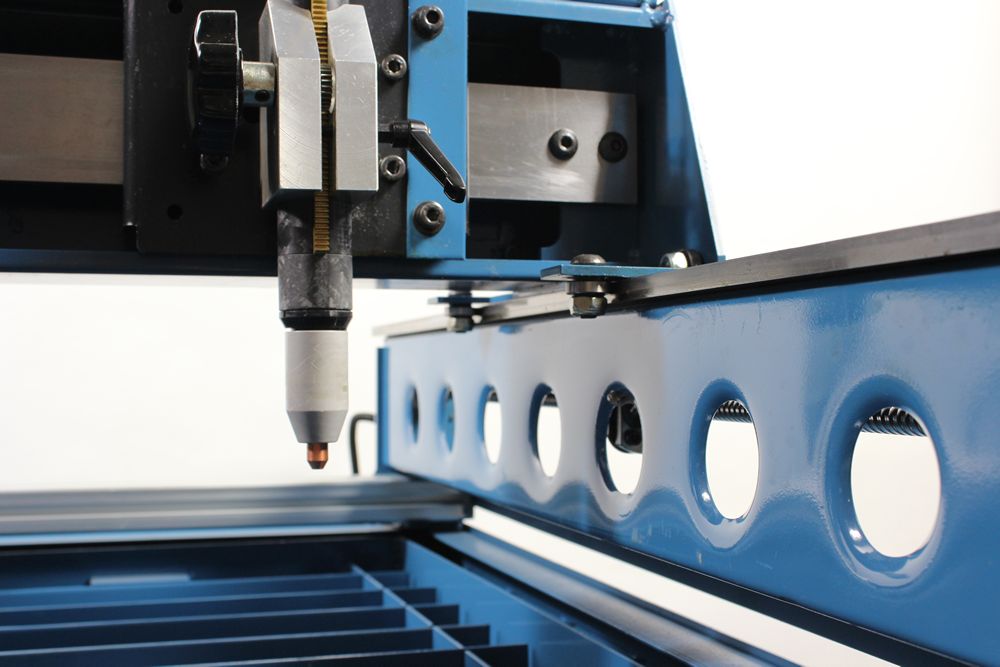

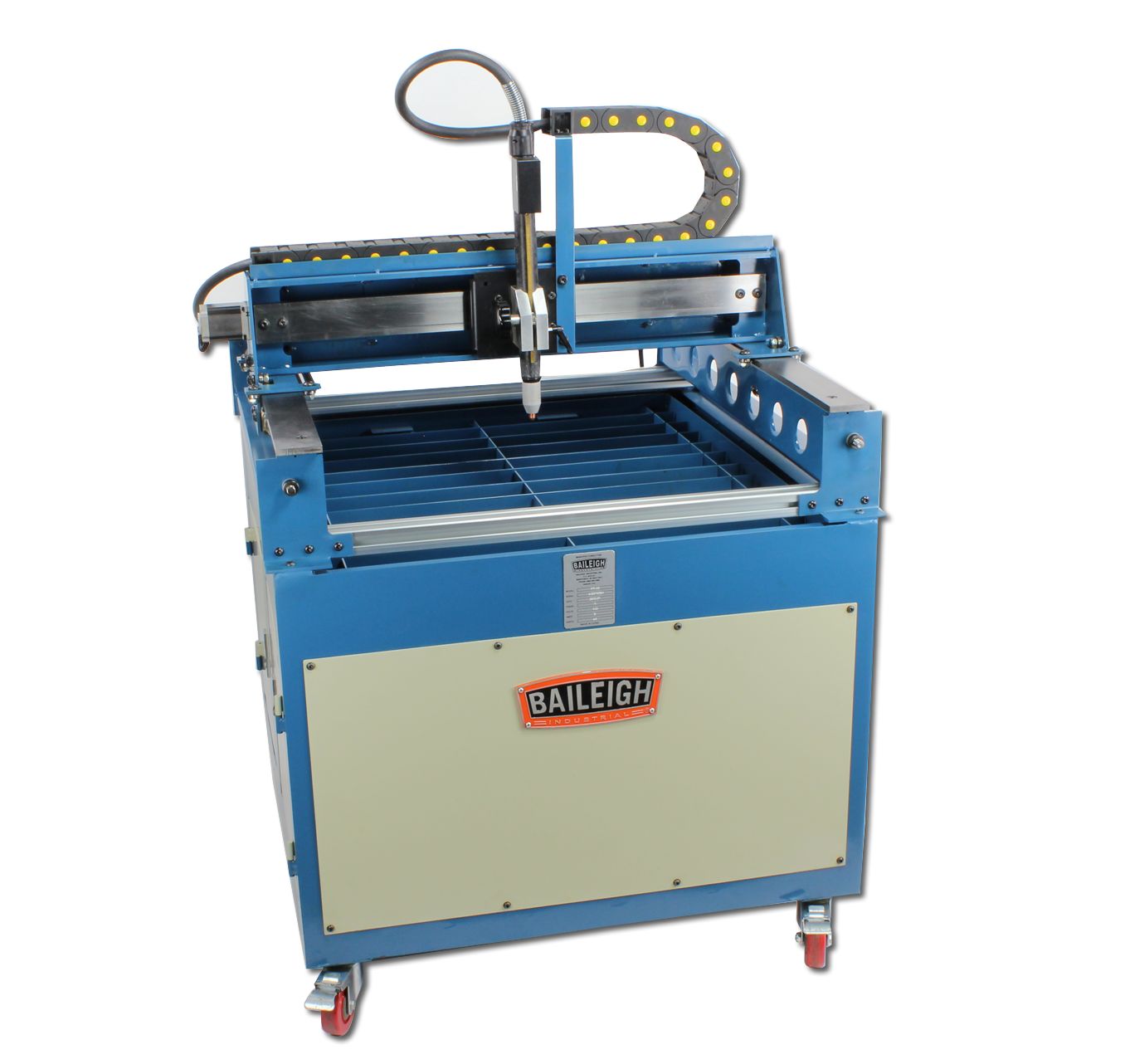

CNC Plasma Cutting Table PT-22
Model PT-22, Table size 29" x 31", Infinite speed, Table load capacity 3/4" mild steel, Stepper motor drive, Single
motor on X axis, Dual motor on Y axis, 5" casters (2 swivel), Flat bar grates to support material, Industrial cable
track on X axis, Latched & hinged access doors, Complete software package, Easy to use programing software, Accepts
DXF files, 2 Torch holders, Water table with ball valve at drain, 110v, Shipping Dim. 36"L x 36"W x 48"H,
Shipping Weight 550 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
P.O.R. |
|

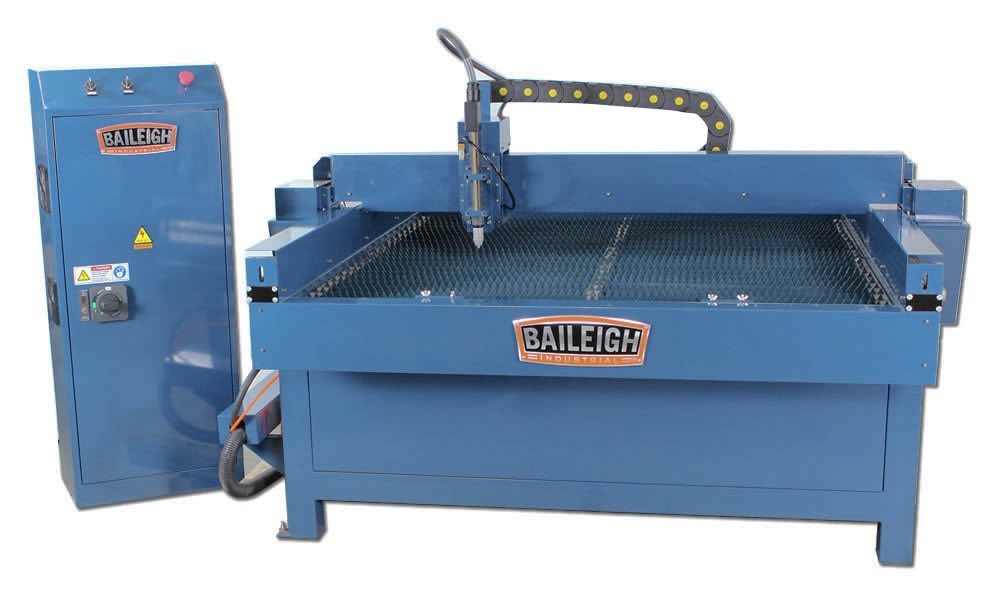

CNC Plasma Cutting Table PT-44
Model PT-44, Table size 59" x 64", Work area 4' x 4', Travel speed 315"/Min., Table load capacity 1" mild steel, X/Y/Z
Stepper motor control, Comes standard with a control podium and hand held pendant with simple jog controls for the X, Y,
and Z as well as program start and stop controls, Comes standard with industrial down draft and water assist cooling,
Complete software package, 220v, Shipping Dim. 72"L x 72"W x 60"H, Shipping Weight 1,300 lbs.
(PHOTO)
P.O.R. |
|

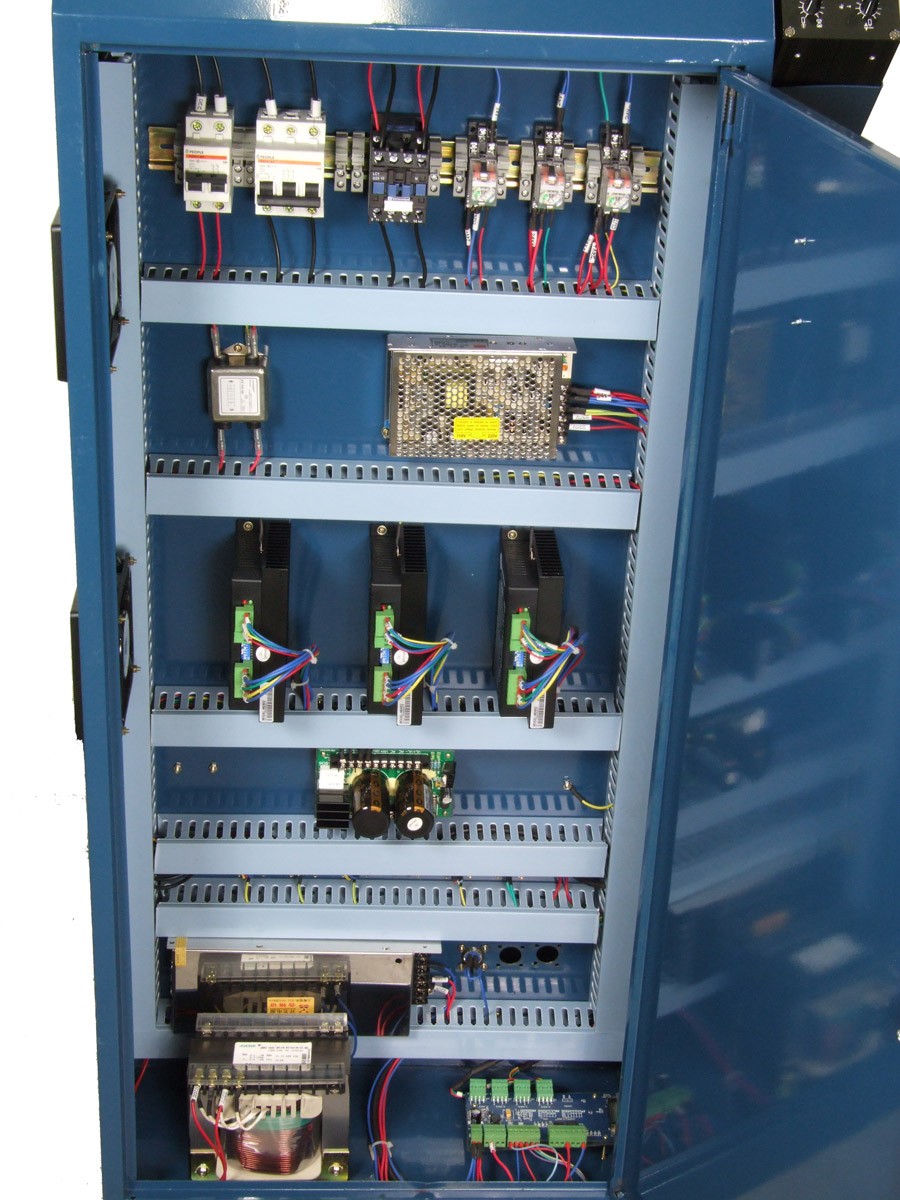

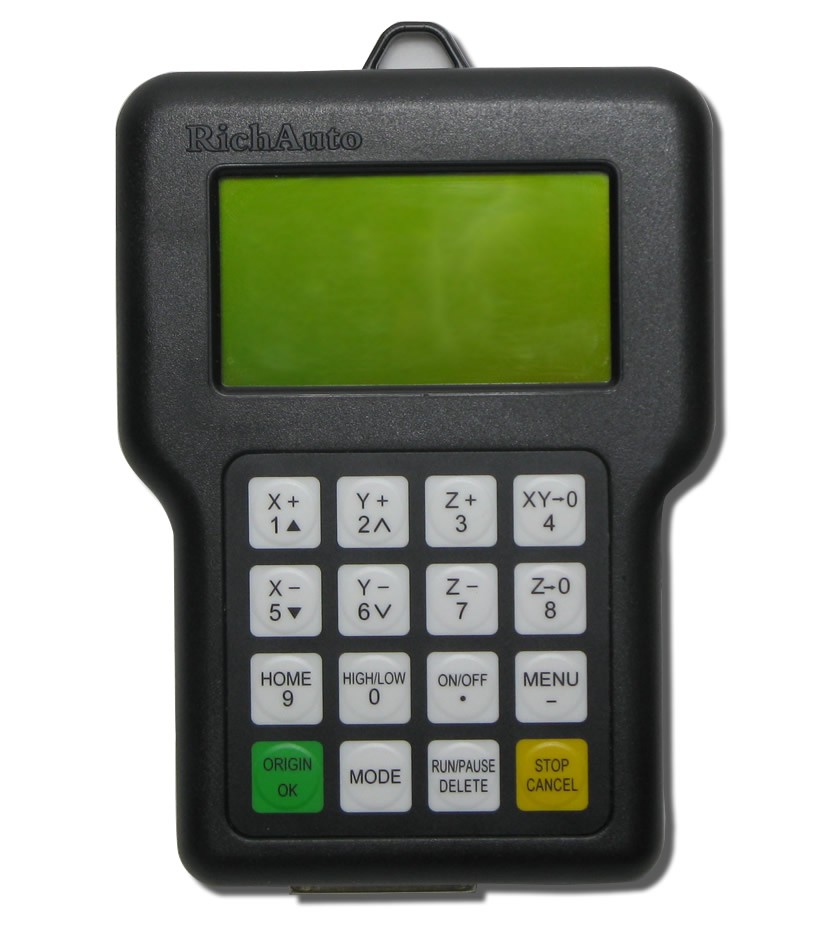

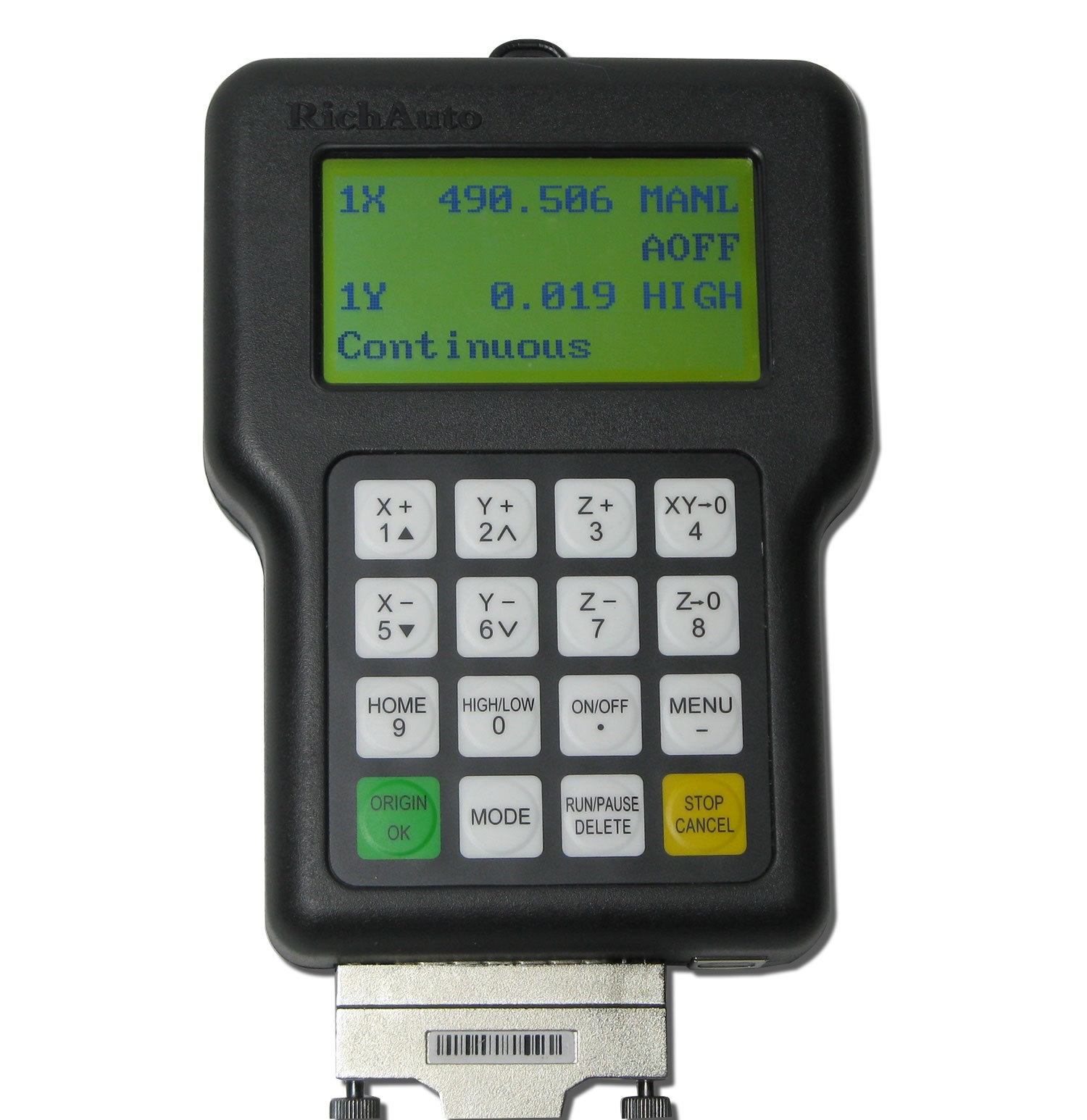

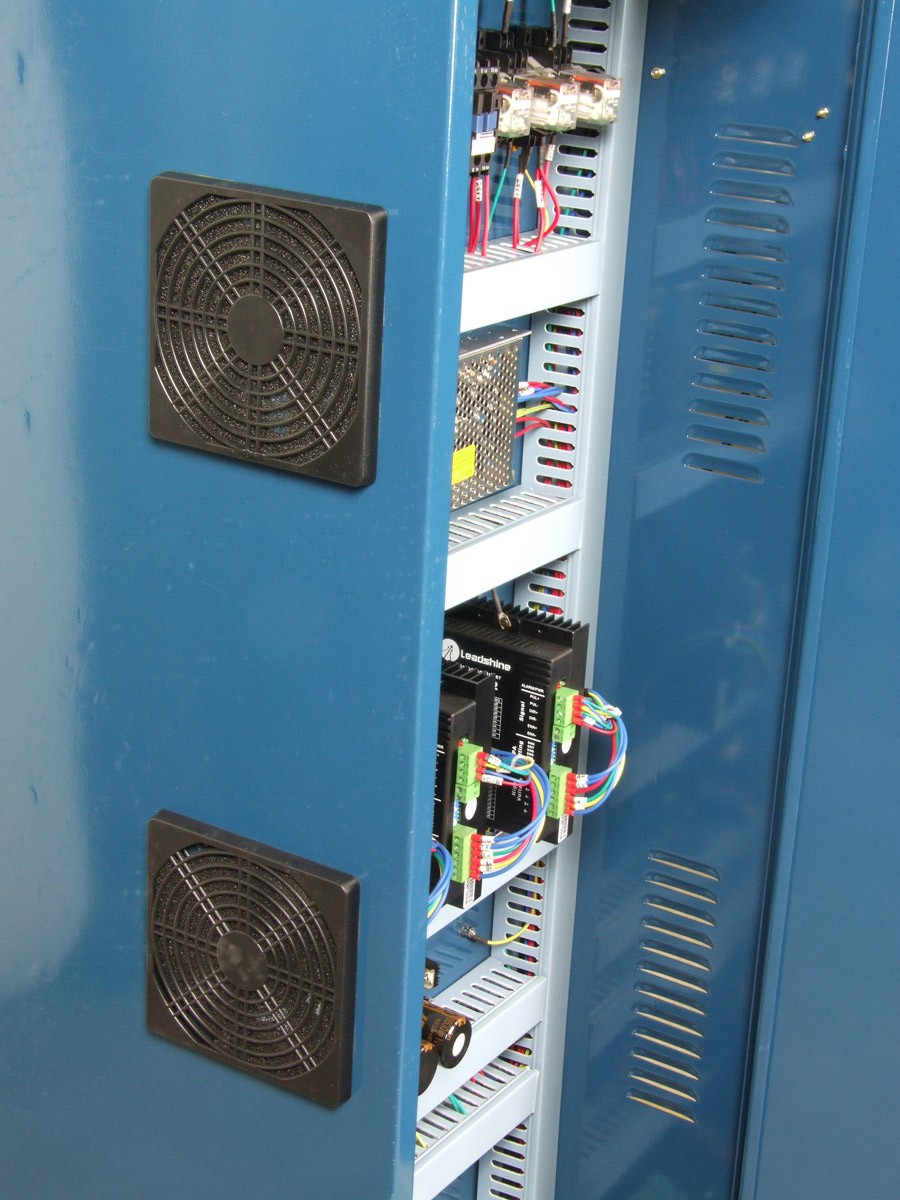

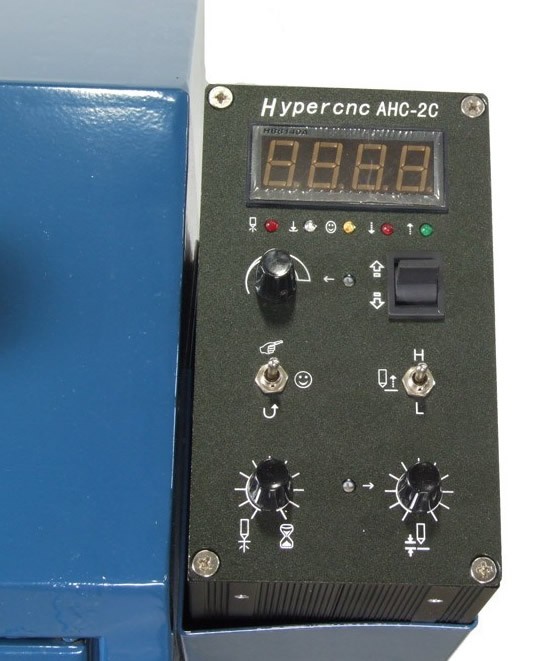

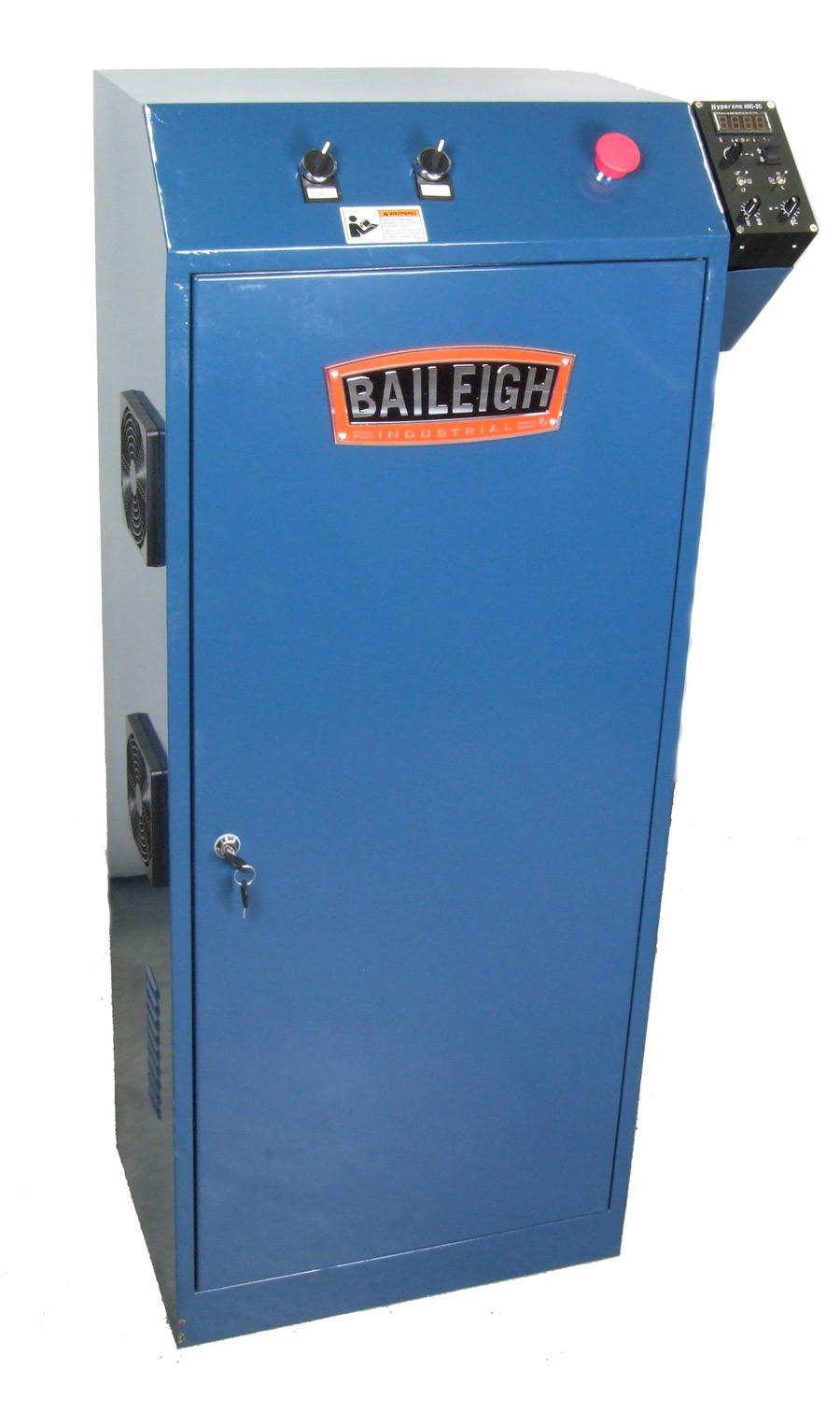

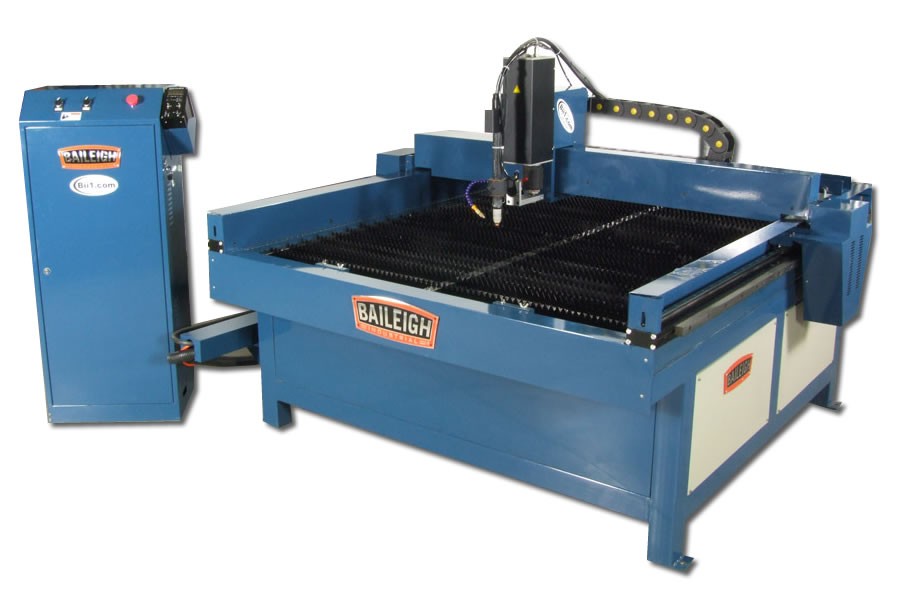

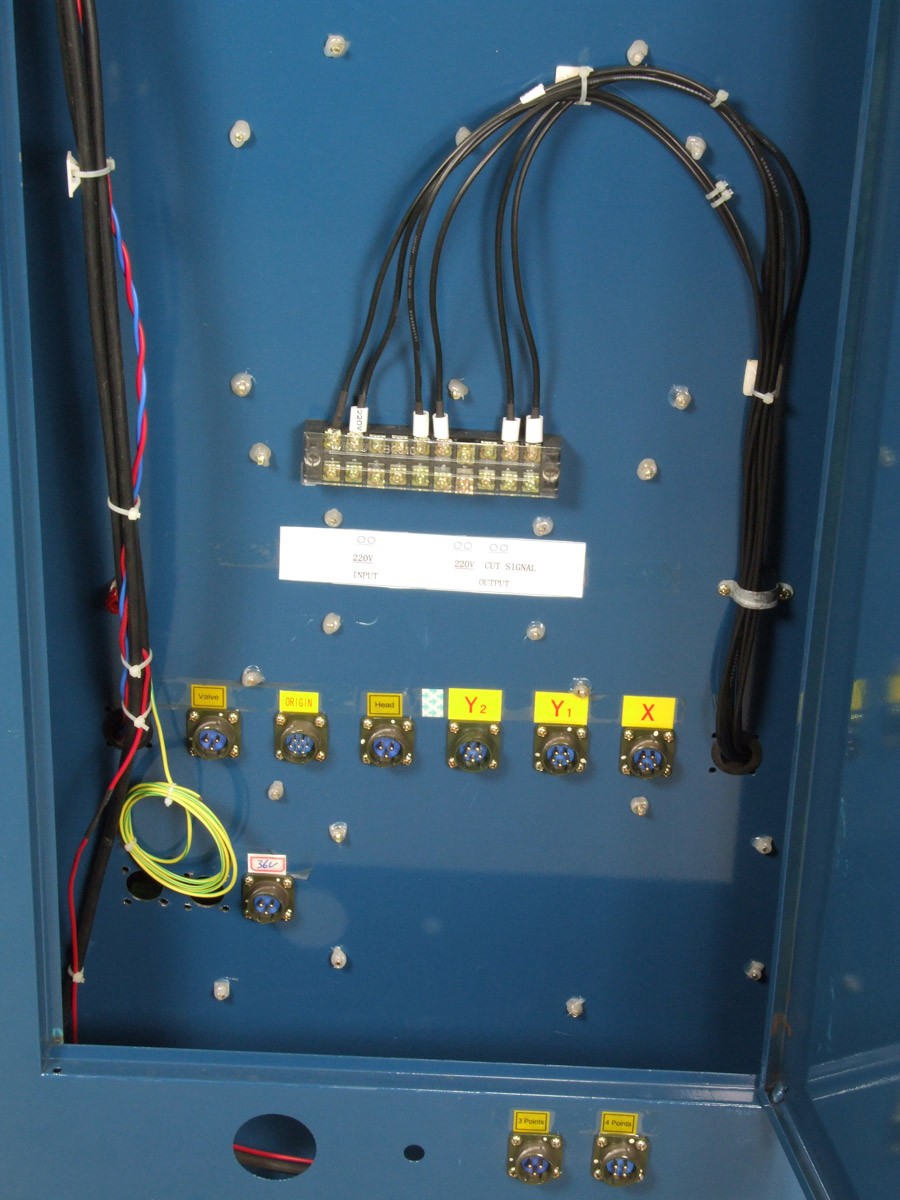

CNC Variable Height Plasma Cutting Table PT-44VH
Model PT-44VH, Table size 59" x 64", Work area 4' x 4', Travel speed 315"/Min., Table load capacity 1" mild steel, Variable
height control, X/Y/Z Stepper motor control, Comes standard with a control podium and hand held pendant with simple jog
controls for the X, Y, and Z as well as program start and stop controls, Comes standard with industrial down draft and water
assist cooling, Complete software package, 220v 1ph, Shipping Dim. 72"L x 72"W x 60"H, Shipping Weight 1,400 lbs.
(PHOTO1)
(PHOTO2)
(PHOTO3)
(PHOTO4)
(PHOTO5)
(PHOTO6)
(PHOTO7)
(PHOTO8)
P.O.R. |
|
