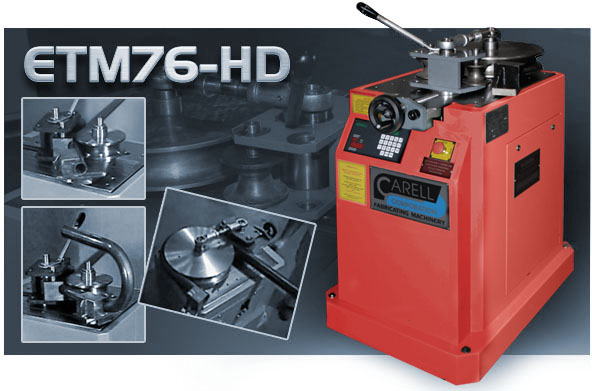

Carell Corp ETM76-HD 2-1/2" PIPE/TUBE BENDER
A heavy-duty yet economical programmable tube/pipe bender manufactured from
solid steel with a full range of tooling available!
P.O.R. |
STANDARD FEATURES
-
Solid Steel Frame –
Lower, wider, heavier and more stable than other machines. Built
from solid steel plate material. No cast or aluminum frame
parts!!
-
Solid Steel Tooling –
Manufactured from solid steel billet for durability, no
castings.
-
Programmable –
Dependable and easy to use digital microprocessor control allow
storing of up to 40 different programs, each with a 5 bend
sequence.
-
Manual / Automatic Function –
Allows automatic bend and return with one command or dual key
stroke in manual.
-
Quick Cam Release –
Made from solid steel, allows release of counter bending die
pressure for quick return to zero of the former and rapid
release of the bent part from the forming die.
-
Bends Without Mandrels – Unique
tooling and counter bending system permits bending without the
need for internal mandrels.
-
Simplified Tooling – Optional
tooling uses smooth
center bore for
easy change-over of sizes
-
Rapid Cycle – Rapid
Cycle Rate and heavy duty construction creates a machine suited
for mid level production bending applications as well as general
shop use.
|
SPECIFICATIONS
-
Speed: Advance
to set point in 6 seconds on 90 deg. bend, no load
-
Max. Bend Angle: 180
degrees + spring back
-
Max. Capacity : 3"
OD MS Tube x 0.1046", 2" Scd. 40 Pipe, 2-1/2" Scd. 10 Pipe
-
Installed Power: 5.5
HP TEFC Brake Motor
-
Drive Train: Electromechanical
-
Speed Reduction: Oil
bath with solid stock gears
-
Machine Weight: 572
lbs approximately (without tooling)
-
Voltage Required: 220/230V
3 Phase 60Hz or 50Hz
-
Dimensions: 34”
x 25” x 39” Tall (36"
working Height)
|
CAPACITIES
-
Round Steel Pipe: 2"
Schedule 40 Pipe:
-
Round Steel Pipe: 2.5"
Schedule 10 Pipe:
-
Round Steel Tube: 2.75"
x 0.16" wall
-
Square Steel Tube:
2" x 2" x 3/16" Sq. Tube
-
Solid Round Bar:1.75" OD
|
|
