Presses - OBI / Mechanical

Alva Allen 12 Ton OBI
S# LJK 62608, 12 Ton capacity, Air operated stroke in-feeder, Auto operation, Coil reel, All setup together on stand, Air trip mechanical clutch, 1.75" Stroke, 14" x 8.5" Bed size, With controls, 3/4hp 115/230v
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) (PHOTO12) (PHOTO13) (PHOTO14) (PHOTO15) (PHOTO16)

$5,000
Alva Allen 39A 100 Ton OBI
100 Ton capacity, 5" Stroke, 37" x 23" Bed, Back geared
(PHOTO1) (PHOTO2)

$16,000
Bench Master 5 Ton OBI
Model 54, S#16925, 5 Ton capacity, On stand, Lever trip, 3 3/8" Opening in back, 8" x 6" Bed, 3" x 5" Hole in bed, 2" Stroke, Adjustable ram height, 1/3hp 208-220/440v, On stand
(PHOTO1) (PHOTO2)

$1,250
Bench Master 10 Ton OBI
Model 193, S# 39543, 10 Ton capacity, Hour meter with 315 hrs., 12" Throat, 5" Opening in back, 2" Stroke, Work light, 3/4hp 230/460v 3ph
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7)

$3,100 Sale Price $2,900
Bliss Air Cushion
Model UCD 14-4, S# 68738, 14" Dia. cylinder, Mounting holes approx. 1" Dia. x 10"W x 22"L, Overall height 28", Stroke is 2.5" or 4" via pin adjustment
$1,000
Bliss 5 Ton
Model 018, S# H33472, 5 Ton capacity, 6" x 12" x 1" Thick bolster with a 3.5" round hole, 5" Opening in back, Approximately 7" shut height, 1" Die pin hole in ram, Palm buttons, 3/4hp 460v 850rpm 3ph Motor
(PHOTO)

$1,750
Bliss 30 Ton OBI
Model 20C, 30 Ton capacity, 3" Stroke, 26" x 19" Bed, Shut height adjustment up 8.75", Air trip mech. clutch, One shot lube system
(PHOTO)

$4,500
Bliss 60 Ton OBI
Model 105A-M, S# H25929, 60 Ton capacity, Air clutch, Air brake, Back geared, Ross air valve, 2.5" Stroke, 19" x 58" Bed, 47" x 14" Ram, 42" Daylight in frame, 5hp 220/440v 3ph
(PHOTO)

$8,000
Bliss 95 Ton OBI Punch Press
95 Ton capacity, Shut height 17", Stroke 6", 90 SPM, Air clutch, Updated controls, Air brake
(PHOTO)

$25,000 Sale Price $19,500
Bliss 150 Ton
150 Ton capacity, 60" x 40", 8" Stroke, 35 SPM, Air cushion
$35,000

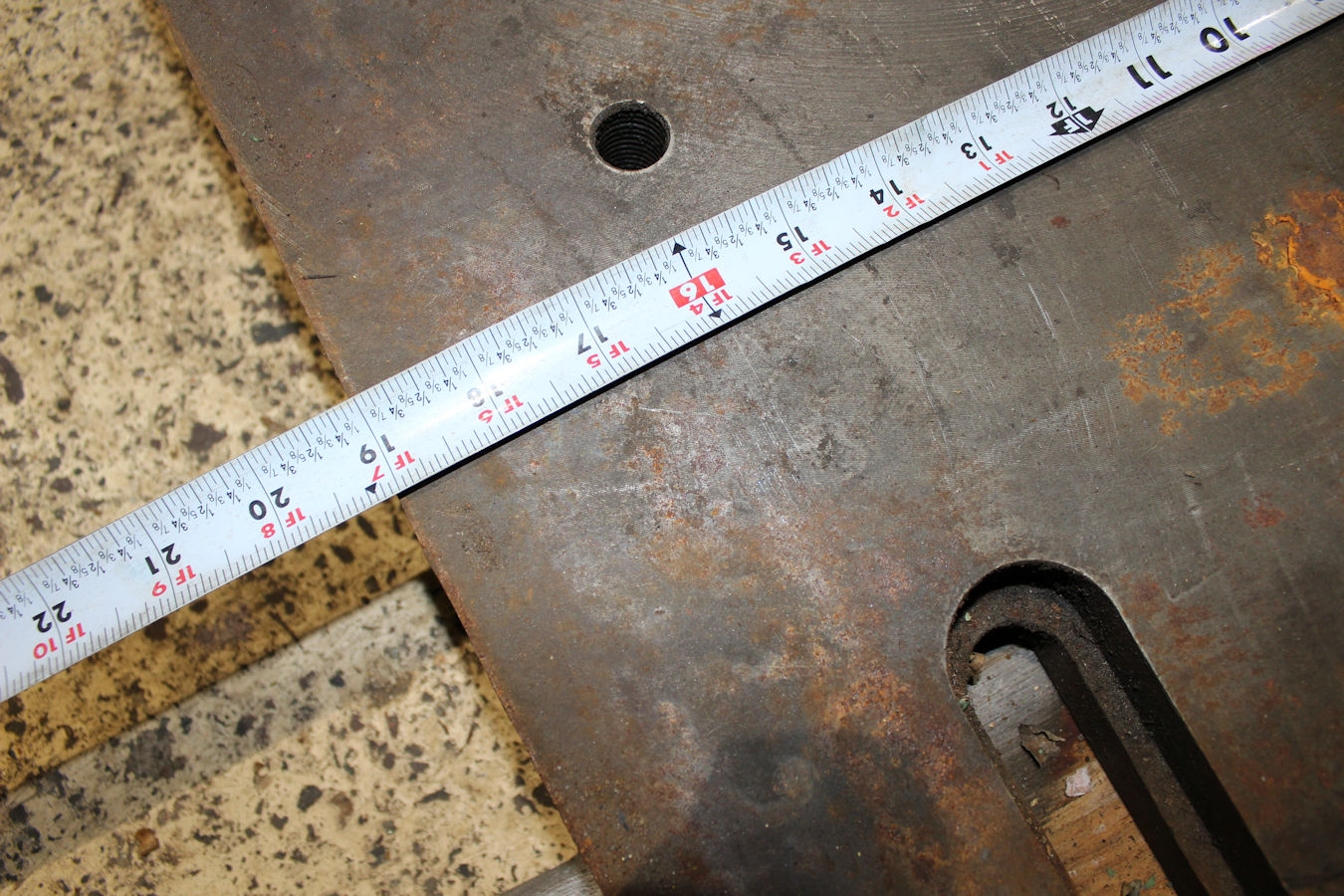

Bolster Plates
Misc. sizes as follows:
(#1) 19" x 30.75" x 1.5", With 6" round center hole, Mounting slots 11" on center x 4" deep
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6)
(#2) 16" x 27 " x 1.5" With 6" round center hole, Mounting slots 9" on center & 4" deep
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6)
(#3) 2" x 18"W x 30.25"L
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4)
(#4) 18"W x 29.75" x 2.25", 5.75" Round hole, Mounting hole 10-11" x 27" across
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7)
(#5) 30" x 19" x 3", Center hole 4.75" x 6.75"
(PHOTO)
(#6) 30" x 19" x 3", With 6 1/2" round hole, Mounting holes 11" on center x 28" apart
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6)
(#7) 30" x 19" x 3", Center hole 4 7/16" x 8", Mounting holes 11" apart x 28" across
(PHOTO)
(#8) 30" x 19" x 3.5", Mounting slots 11" apart x 28" across
(PHOTO)
(#9) 32" x 21" x 2.5", Mounting holes 12" apart x 29" across
(PHOTO)

Make Offer!
Bruderer 30 Ton Air Clutch Punch Press
Model BSTA 30, S# 9080, Date Mfg. 1989, Max pressure 30 tons, 100 to 600 SPM, Drive performance 0.96 to 5.75hp, 220v AC, Air required 85 to 140 PSI, Adjustable stroke 8 to 40mm, Ram height 40mm, Adjustable shut height 230mm + 20mm, Max width of tool bed opening 330mm, Max width of strip inlet 170mm, Machine bed 4mm 596, Lower bolster plate 4mm 595, Upper bolster plate 4mm 380, Max cutting length and stroke setting 4mm 270, Auto infeed system 5"L roller, Manual height adjustment & depth stop system, Control stand station, Press Dim. 45"W x 4'L x 7'H, Est. Wt. 5,550 lbs., Control Dim. 34"W x 14"L x 38"H, Est. Wt. 280 lbs., Operations & electrical prints in English, Parts manual in German
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) (PHOTO12) (PHOTO13) (PHOTO14) (PHOTO15) (PHOTO16) (PHOTO17)

$16,000
Bruderer 30 Ton Air Clutch Punch Press
Model BSTA 30, S# 72-1012, Date Mfg. 1973, Max pressure 30 tons, 100 to 600 SPM, Drive performance 0.96 to 5.75hp, 220v AC, Air required 85 to 140 PSI, Adjustable stroke .315" to 1.570", Ram height 1.570", Adjustable shut height 7.874 to .800", Max width of tool bed opening 13", Max width of strip inlet 6.7", Machine bed 4mm 350, Lower bolster plate 4mm 351, Upper bolster plate 4mm 396, Max cutting length and stroke setting 4mm 270, Auto infeed system, Manual height adjustment & depth stop system, Control stand station, Press Dim. 45"W x 4'L x 7'H, Est. Wt. 5,550 lbs., Control Dim. 34"W x 14"L x 38"H, Est. Wt. 280 lbs., Operations & electrical prints in English, Parts manual in German
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) (PHOTO12) (PHOTO13) (PHOTO14) (PHOTO15) (PHOTO16) (PHOTO17) (PHOTO18) (PHOTO19)

$9,500
Cleveland 70 Ton OBI
70 Ton capacity, Minster air clutch/brake, Palm buttons, Back geared, 6" Stroke, Ram size 18" & 22", Safety guards & pulse air injection system
(PHOTO)

$10,000
Die Shoe Large
46" x 53" x 2" Thick plates, 46.5" Between die pins, Rusty but no large holes in plates
(PHOTO)

Make Offer!
Die Shoe 17" x 34"
17" x 34" x 2 7/8" On top plate and 2 7/16" on bottom, 25.5" Between die pins, Rusty but no holes
(PHOTO)

Make Offer!
Emco - Klaas 3 Ton Powered Press
Adjustable stroke 1/2" to 1", Ram to bed ram up 8", Hole in bed 3.5" x 1.5" with 2" round in center, some machines hole is cut out larger, Mechanical foot trip, With electric controls, All machines are on factory stands, 32"H, 1/2HP 220/440v 3ph Some are 110v 1ph, Bed size is 8.5" x 5.5" slotted on ends for holding die, Throat is 4"
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7)

$950 Each (25 in stock)
Famco 18 Ton OBI
Model 59J, S# P-3741310, 18 Ton capacity, 2" Stroke, 16" x 10" Bed, 7" Opening in back, Air trip mechanical clutch
(PHOTO)

$2,500
Havir Press Rite 40 Ton
Model 40, S# 282, 40 Ton capacity, Air clutch, Air brake, 4" Stroke, 18" x 32" x 2.25" Bolster, Steel frame machine, Palm buttons, 5hp 200-230/460v 3ph
(PHOTO1) (PHOTO2)

$6,800
Havir 5 Ton
5 Ton Capacity, 2" Stroke, 8" Shut
$650
Havir Straight Side 25 Ton
S# H705/TF 127X292, 25 Ton capacity, 2" Stroke, 20"W x 20.5"FB Bed area, Stroke down adjustment up 8", Ram adjustment 2.5", Length of feed 0 to 7", 100 to 400 strokes per minute, Air clutch/brake
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11)

$8,000
Heim OBI 55 Ton
55 Ton capacity, Air clutch, 4" Stroke, 14" Shut height, Bed 28"W & 18"D
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11)

$10,500 Sale Price $9,500
Light Curtain 12" Set
Model MGE1216A, S# E1201769 Made by Banner with control box model MGCA-4A, Supply power 115v 1ph
(PHOTO1) (PHOTO2)

$1,200
Light Curtains 20" Sets
Made by Seeka of Japan, Model STM 112, Supply power 115v 1ph, Wide sensor, With manual, Control is a model SP1N, 4 Sets with controls available
(PHOTO1) (PHOTO2)

$1,250 Per set with controls
Minster No. 3 Air Clutch 22 Ton OBI Press
Model No. 3, S# 3-13035, 22 Ton capacity, 9" Shut height, 2" Stroke, 2" Slide adjustment, 10"W x 7" Ram, 2" Center hole, 20"W x 12" x 1.5" Bolster plate, Bolster plate center hole 6" round & 11.5" x 2.5" rectangle, 150 SPM, 9" Gap thru frame, Palm button controls, Parts counter, Bijur auto lube system, 1" Air inlet line with adjustable valve, Service - Operations manual & electrical prints, 3hp220/440v 3ph, Overall Dim. 4'W x 4' 8"L x 7' 4"H, Est. Wt. 3,000 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) (VIDEO)

$9,500
Minster No. 3 Air Clutch 22 Ton OBI
Model No. 3, 22 Ton capacity, Air clutch/brake, 7" Shut height, 2.5" Stroke adjustment, 6.5" Throat depth from frame to center, 12"L x 20"W x 1.5"H Bolster plate, Ross & Herion XSZ air valves, Dual palm button control, Run/Inch/Top/Stop/Cont., Parts counter, Auto lube system, Adjustable work light, 3hp 208-220/440v 3ph, Overall Dim. 5'L x 4'W x 7' 5"H, Est. Wt. 3,000 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) (PHOTO12) (PHOTO13) (PHOTO14) (PHOTO15) (PHOTO16) (PHOTO17) (VIDEO)

$10,000 SOLD
Minster 25 Ton 24" Deep Throat C Frame Press
Model 20-1, S# 20-2-3156, 25 Ton capacity, 20" x 13.5" Bed, Adjustable up/down up to 9", Auto oilier, Ram adjustment 2.5", 1.75" Die pin hole, Mechanical air trip clutch, 3hp 440v 860 rpm 3ph
(PHOTO)

$3,500
Minster 30 Ton No. 3 "Parts Machine"
Model No. 3, 30 Ton capacity, Air clutch/brake, Updated Rockford controls, Die area guards
(PHOTO1) (PHOTO2)

Make Offer
Minster 35 Ton OBI Press
Model 35 OBI, S# 35-12183, 35 Ton capacity, 100 Strokes/Min., 3" Stroke, 2.25" Slide adjustment, 24"W x 15" x 2" Bolster plate w/ 6" round center hole, 12" Max shut height, Throat depth frame to center ram 8", Ram Dim. 15"W x 9"FB knock out, 2" Round center hole, Manual adjustment, 11" Gap thru frame, Auto lube system, Palm button controls, Updated Ross air valve control, 2hp 480v 3ph 60cyc, Overall Dim. 45"W x 5'L x 8'H, Est. Wt. 6,000 lbs.
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (VIDEO)

$15,000 Sale Price $12,500
Minster No. 4 OBI Press
Model No. 4, S# 4-10870, 3" Slide stroke, 2.25" Slide adjustment, Tons pressure at bottom of stroke 32 @ 130 SPM, AC Tech MC Series Intelligent Drive, Palm button controls, Modes inch/single/continuous, Safety cage around die area, 480v 3ph, More info & photos coming soon
P.O.R.
Minster 60 Ton Fixed Base Press
Model B1-60, Type fixed base, S# B1-60-23453, 60 Ton capacity, 3" Stroke, 3" Slide adjustment, 0 to 350 Strokes/min., 15.5" Shut height, 11" Throat depth, Upper ram Dim. 20"W x 16.25"L x 2.75"H has bolted on T slotted platen 24"W x 19"L x 2"H, Bottom bolster plate 21"W x 31"L x 3"H with cross T slots & 16"W x 5.5"L center hole, Air clutch brake, Clutch air pressure for rated tonnage in pounds 55, Bijur lube system, Banner light curtains, Palm button controls, 10hp 220/440v 3ph, Overall Dim. 8' 6"L x 6'W x 10' 2"H, Est. Wt. 12,000 lbs.
(PHOTO1) (PHOTO2)

$15,000
Niagara 45 Ton
Model E-45, Date Mfg. 1981, 45 Ton capacity, 12" Shut height, 3" Stroke, Air clutch, Bed 28"W & 18", Slide adj. 3", 65 SPM, Shadow V Light curtains, Air cushion, Auto lube system, Palm buttons & clutch stop, "X-Condition"
(PHOTO)

$22,000 Sale Price $17,500
Niagara 45 Ton
Model M45, S# 46064, 45 Ton capacity, 9" Shut height, 3.5" Stroke, 2-5/8" Slide adjustment, 13.75"W x 11.75" Ram Dia. w/ 2" center hole, 28"W x 18" x 2.5" Bolster plate, 14" x 4" Center hole on bolster plate, 85 to 170 Strokes/Min., Gap thru frame 14", Shut height 12", Throat depth frame to center of ram 10", Palm button controls, Bijur auto lube system, Air inlet line 1"OD, 7.5hp 230/460v 3ph 60cyc, Connected to EDDY variable speed drive system, Overall Dim. 4'W x 5' 6"L x 8' 8"H, Est. Wt. 5,000 lbs., Photos coming soon
$10,500
Niagara Model A 4.5" 75 Ton
S# 28583, 75 Ton capacity, Back geared, 6" Stroke, 24" x 36" x 3.5" Bolster plate, Steel frame, 42 Strokes\min, 7.5hp 220/440v 3ph
$22,500
Press-Rite OBI 12 Ton
Model 12, S# 179 MC, 12 Ton capacity, Air clutch, Air brake, Air flex safety controls, 16" x 11" Bed area with 1 1/4" bolster, Stroke 1.5", 1hp 200/400v 3ph
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) (PHOTO12) (PHOTO13) (PHOTO14)

$3,900
Press-Rite OBI 15 Ton Est.
Estimated 15 ton capacity, Air clutch, Air brake, Controls, Palm buttons, Auto lube system, 12" x 25" Bolster, 1.5hp Variable speed sterling drive 220/440v 3ph wired 220v
(PHOTO)

$3,800
Press-Rite 30 Ton
30 Ton capacity, Air clutch, Palm buttons, Air flex controls, Rebuilt
(PHOTO)

$9,500 Sale Price $7,500
Rockford 20 Ton Air Clutch
Model 20-W, S# 6562-79, 20 Ton capacity but has been calibrated to do 30 tons at 1/16 from bottom of stroke at 33 SPM, Shut height 14", Bed 19"W x 12", 3" Stroke, Bed to Gibs 17.25", Slide adjustment 2.5", Throat 5", Air brake, 30 to 60 SPM, Palm buttons, Auto indexing table, Auto oiler, Station controls, Brake monitor, 5hp 440v 3ph 60cyc
(PHOTO1) (PHOTO2) (PHOTO3) (PHOTO4) (PHOTO5) (PHOTO6) (PHOTO7) (PHOTO8) (PHOTO9) (PHOTO10) (PHOTO11) (PHOTO12) (PHOTO13) (PHOTO14) (PHOTO15) (PHOTO16)

$12,000 Sale price $9,500
Rousselle 50 Ton
Model No. 6, S# 14548, 18" x 30" x 2" Bolster plate, 12.5" x 4.5" Hole, 1.75" Ram pin, Air clutch, Brake monitor, Palm button controls, More info & photos coming soon
$9,500

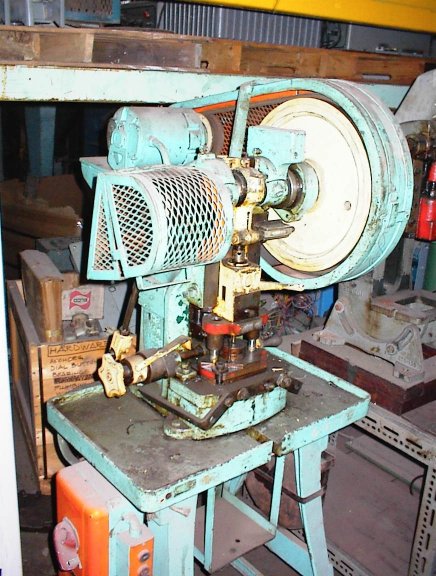

V&O 3 Ton
Model 00, S# 005-133, 3 Ton capacity, 3/4" Stroke, 7" x 11" Bed, Auto feeder, 5" Shut height, Adjustable ram, On stand, 1/2hp 208-220/440v 3ph 1,140 rpm
(PHOTO)

$1,250

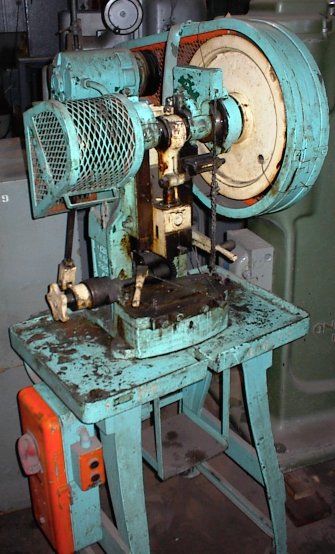

V&O 3 Ton
Model 00, 3 Ton capacity, 1" Stroke, 6" x 14" Bed, Auto feeder
(PHOTO)

$1,250
